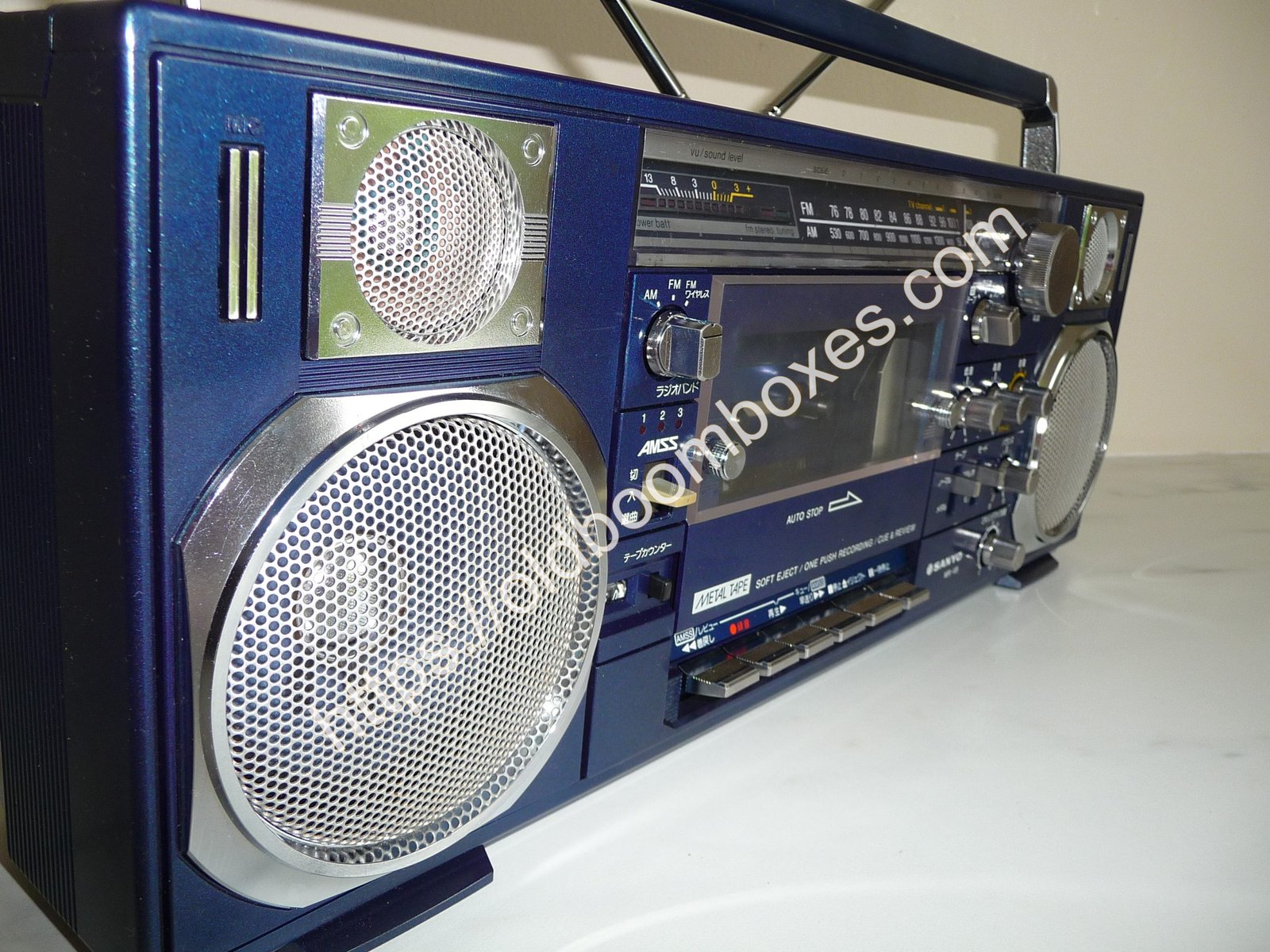

SANYO MR-V8 Stereo Radio Cassette Recorder
1 in stock
SANYO MR-V8
Future:
- Manufactured Date 1980 of December
- Dual Telescopic Antennas
- Music Search (AMS) Function
- One-Touch Recording
- LED Recording Level Meter
- Blue Woofer Cones
- Real Cone Tweeters
Available colors:
- Silver
- Blue
699.00€
1 in stock
The Sanyo MR-V8 is the Japanese-market version of the Sanyo M7900. It was one of Sanyo’s best-equipped mini boomboxes, combining a true 4-speaker system, music search, dual antennas, and external microphone support in a compact cabinet.
TAPE RECORDER SECTION
Recording System: AC Bias, 4-Track, 2-Channel Stereo
Erase System: AC Erase
Tape Speed: 4.8 cm/sec
Recording Time: 60 minutes (with C-60 cassette)
Fast Forward Time: 100 seconds (C-60)
Rewind Time: 100 seconds (C-60)
Frequency Response:
70–10,000 Hz (Normal Tape)
70–12,000 Hz (Metal Tape)
Input Terminals
Microphone Inputs (Mini Jack) ×2
Input Impedance: 3.3 kΩ
Input Sensitivity: 1 mV
Output Terminals
External Speaker Outputs (Mini Jack) ×2
Impedance: 2.5 Ω
Compatible Speaker Impedance: 2.5–60 Ω
Headphone Jack (Mini Jack) ×1
Impedance: 8 Ω
Recording / Playback Input
Input Impedance: 40 kΩ
Input Sensitivity: 10 mV
Output Impedance: 2.2 kΩ
Output Level: 400 mV
Microphones
Built-In Condenser Microphones ×2
RADIO SECTION
Circuit System: FM (Wide) / FM Stereo / AM 2-Band Superheterodyne
Receiving Frequency Range: FM: 76–108 MHz, AM: 525–1605 kHz
Antennas: FM: Telescopic Antenna, AM: Built-In Ferrite Bar Antenna
GENERAL
Transistors: 34, ICs: 9, Diodes: 44, Includes 11 LEDs and 4 Rectifier Diodes
Power Output: 2.5 W × 2 (EIAJ/DC)
Speaker System: 9.2 cm Round Speaker, 2.5 Ω × 2, 4.0 cm Round Speaker, 4.0 Ω × 2
Power Supply: AC 100 V, 50/60 Hz, DC 9 V (6 × SUM-2 / “C” Batteries), 12 V Car Battery
Using Optional Car Battery Adapter CBA-07
Battery Operating Time: Approximately 3 Hours Continuous Use
Continuous Operation For 4 Hours Followed By 20 Hours Rest
Recording From The Built-In Radio
Monitoring At 10 mW Output Using 6 × SUM-2 (C) Batteries
Power Consumption: 10 W
Dimensions: 420 × 155 × 84 mm (W × H × D) Excluding knobs and other protruding parts
Weight: Approx. 3.4 kg (Including Batteries)
ACCESSORIES
Demonstration Tape × 1
SUM-2 Batteries × 6
Erase Plug × 1
AC Power Cord × 1
Video
Soon!
Video Short
Accessories Sold Separately
HM-960 – Uni-Directional Dynamic Microphone
WM-30 – Wireless Microphone
E-310 – Headphones
APC-301/ RK-39 – Recording/Playback Cord (Stereo Playback Cord and Recording/Playback Cord)
RK-31A – Recording Cord (For Recording from a TV or Other Monaural Tape Recorder)
TL-50A – Telephone Pickup (For Recording Telephone Conversations)
SX-9950 – Speaker System
RK-37 – Speaker Connection Cord
MH-V8 – Microphone Holder
