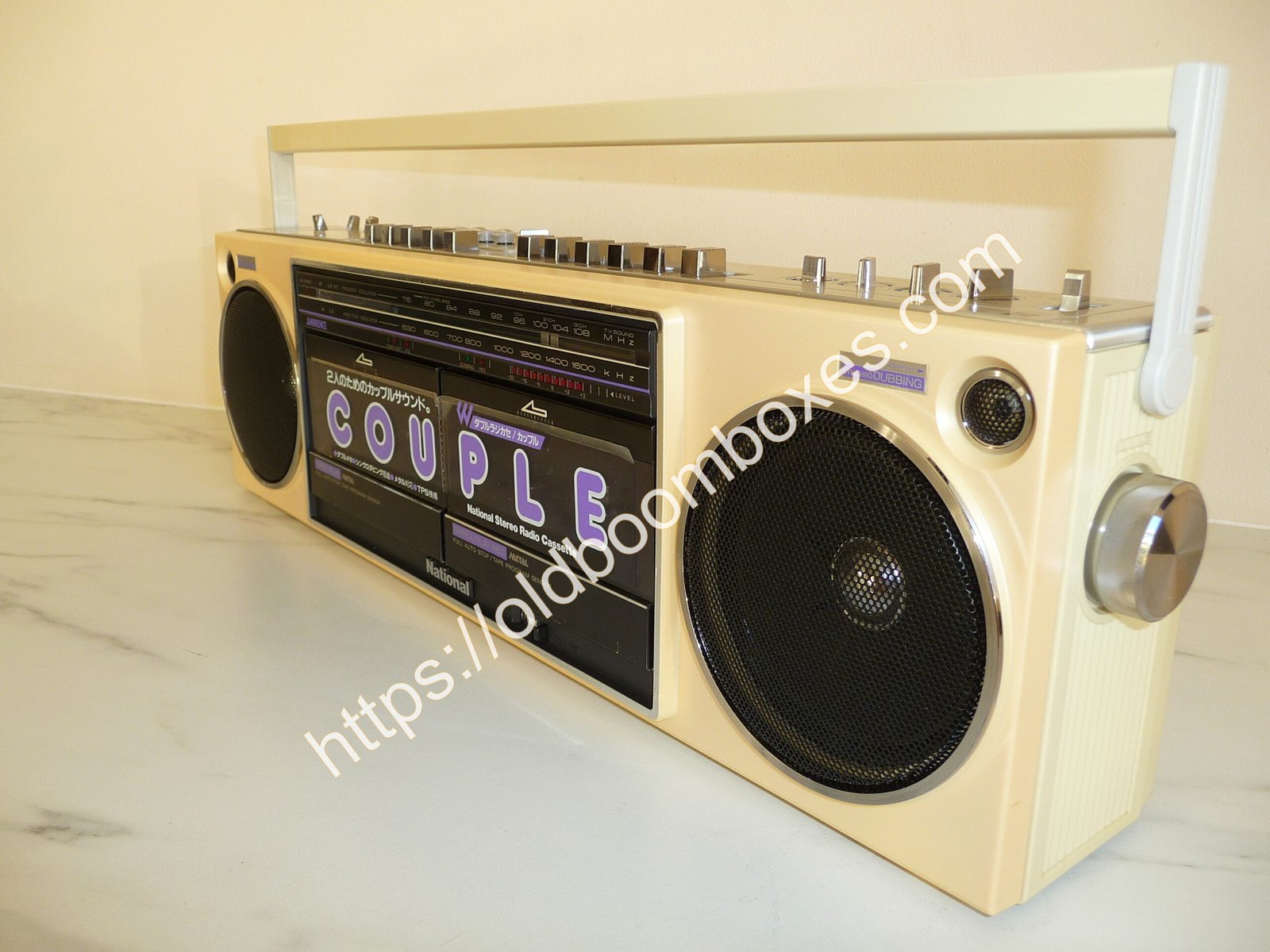

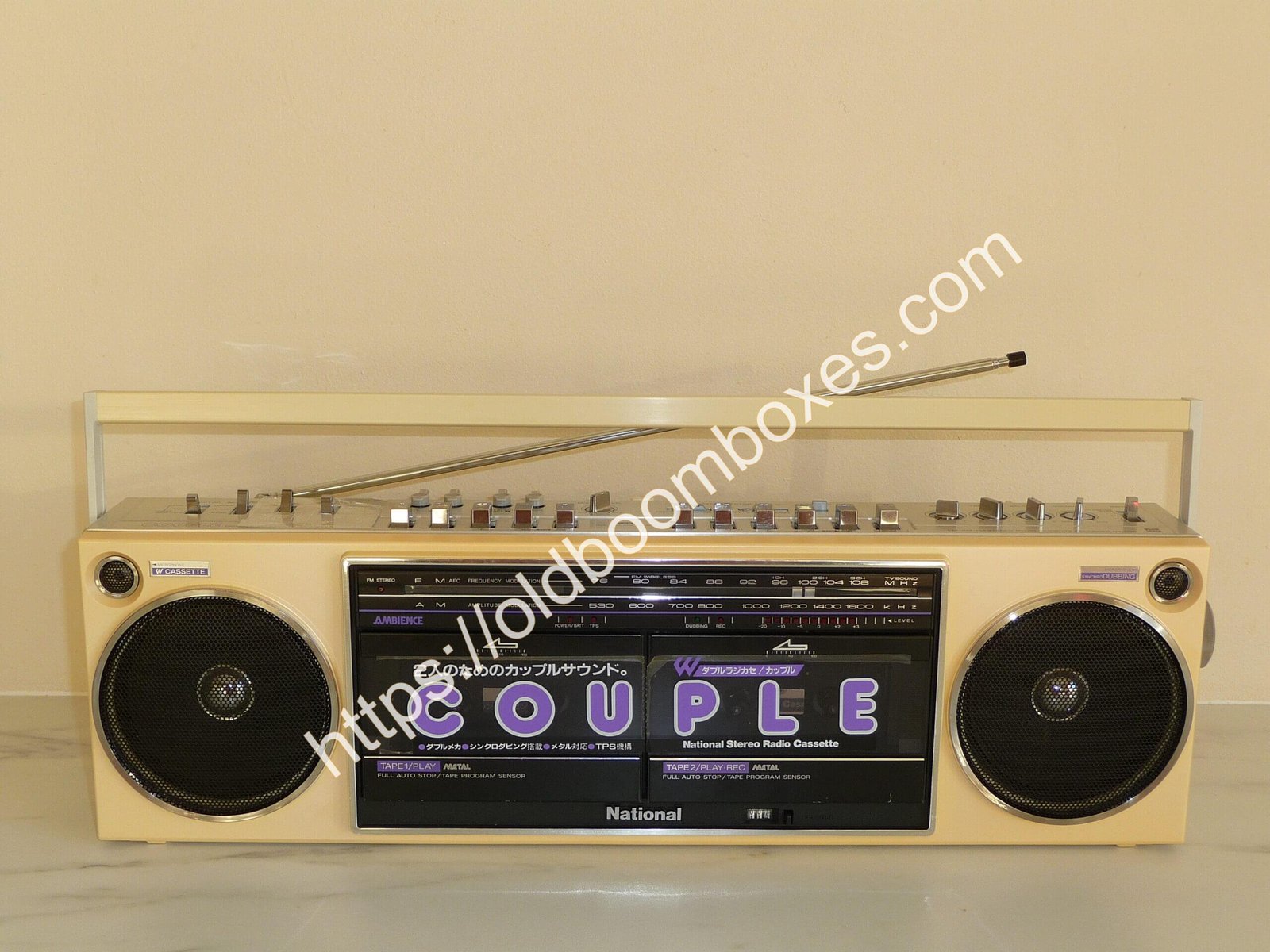

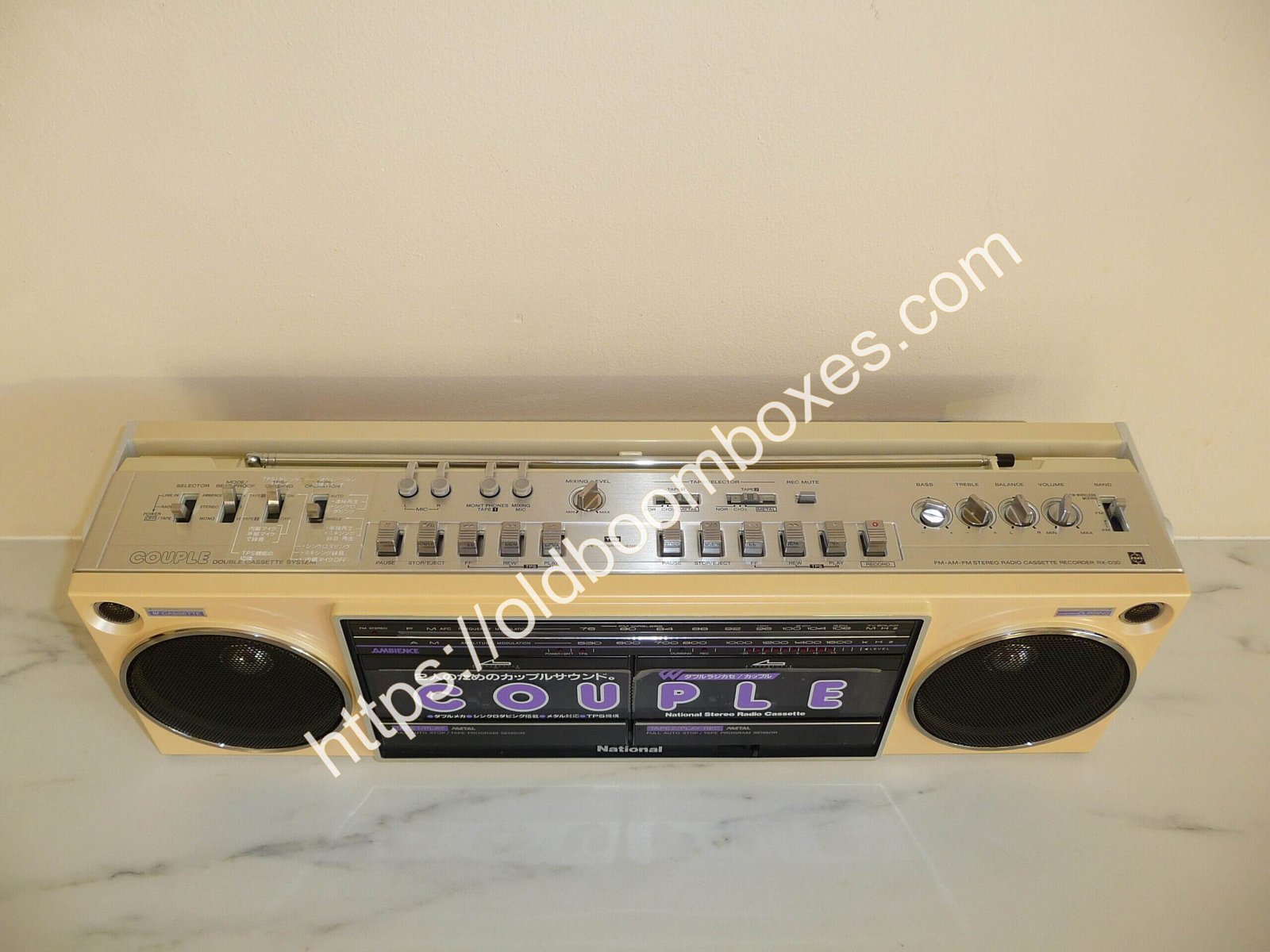

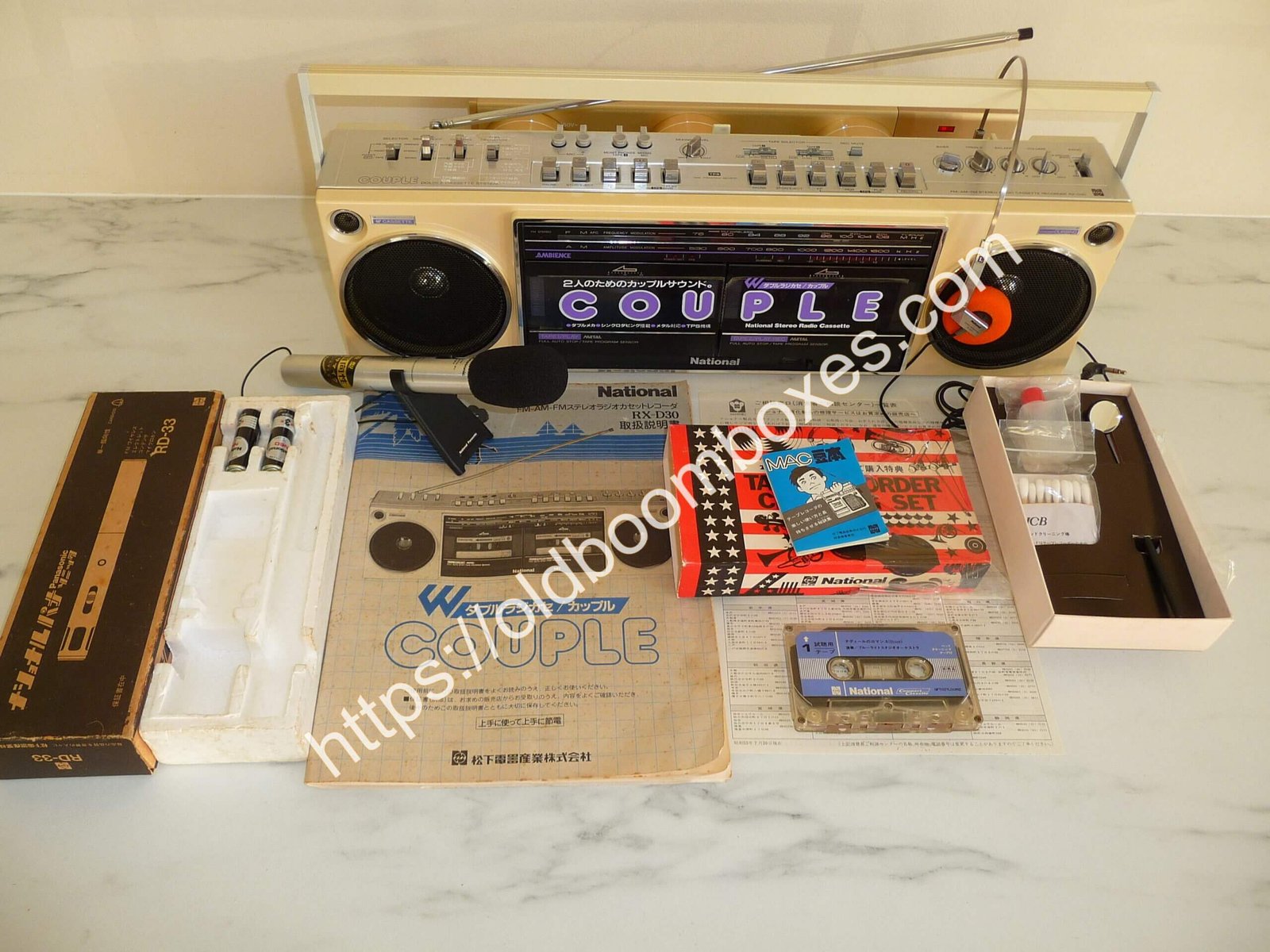

NATIONAL RX-D30 Stereo Radio Cassette Recorder
1 in stock
NATIONAL RX-D30
Future:
- Manufactured Date 1981 of August

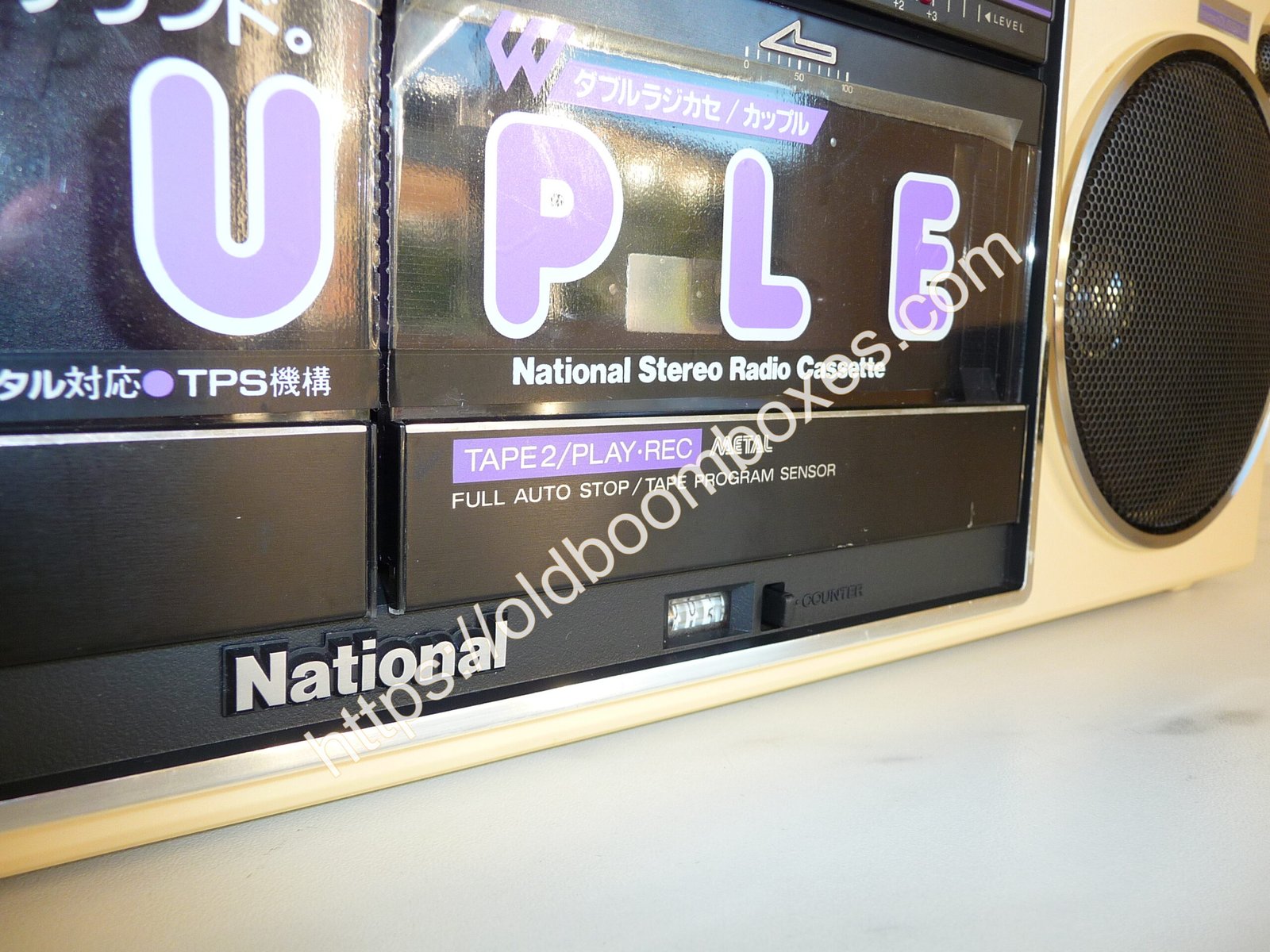

- TPS (Tape Program Search) Function

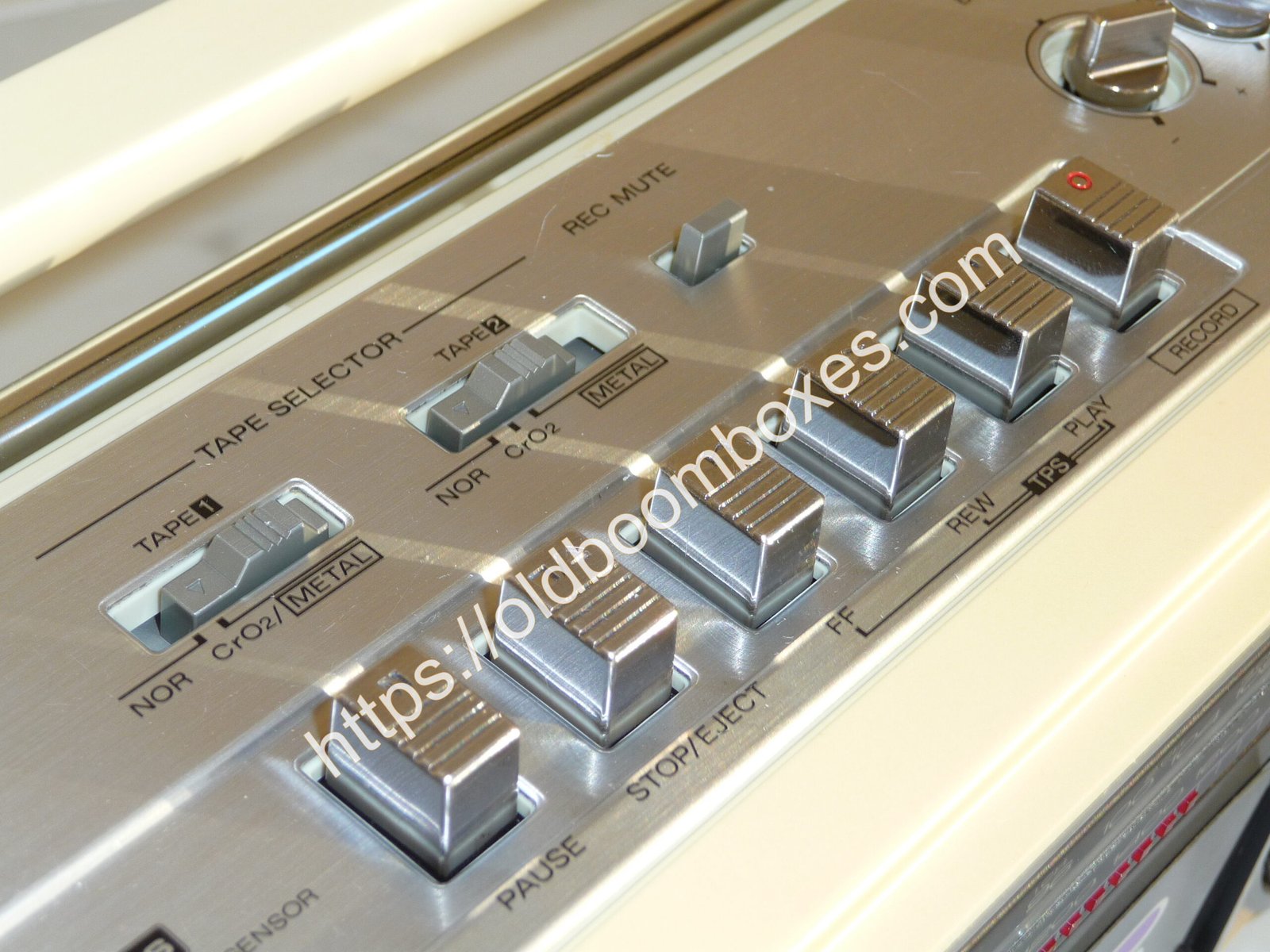

- Metal Tape Compatible

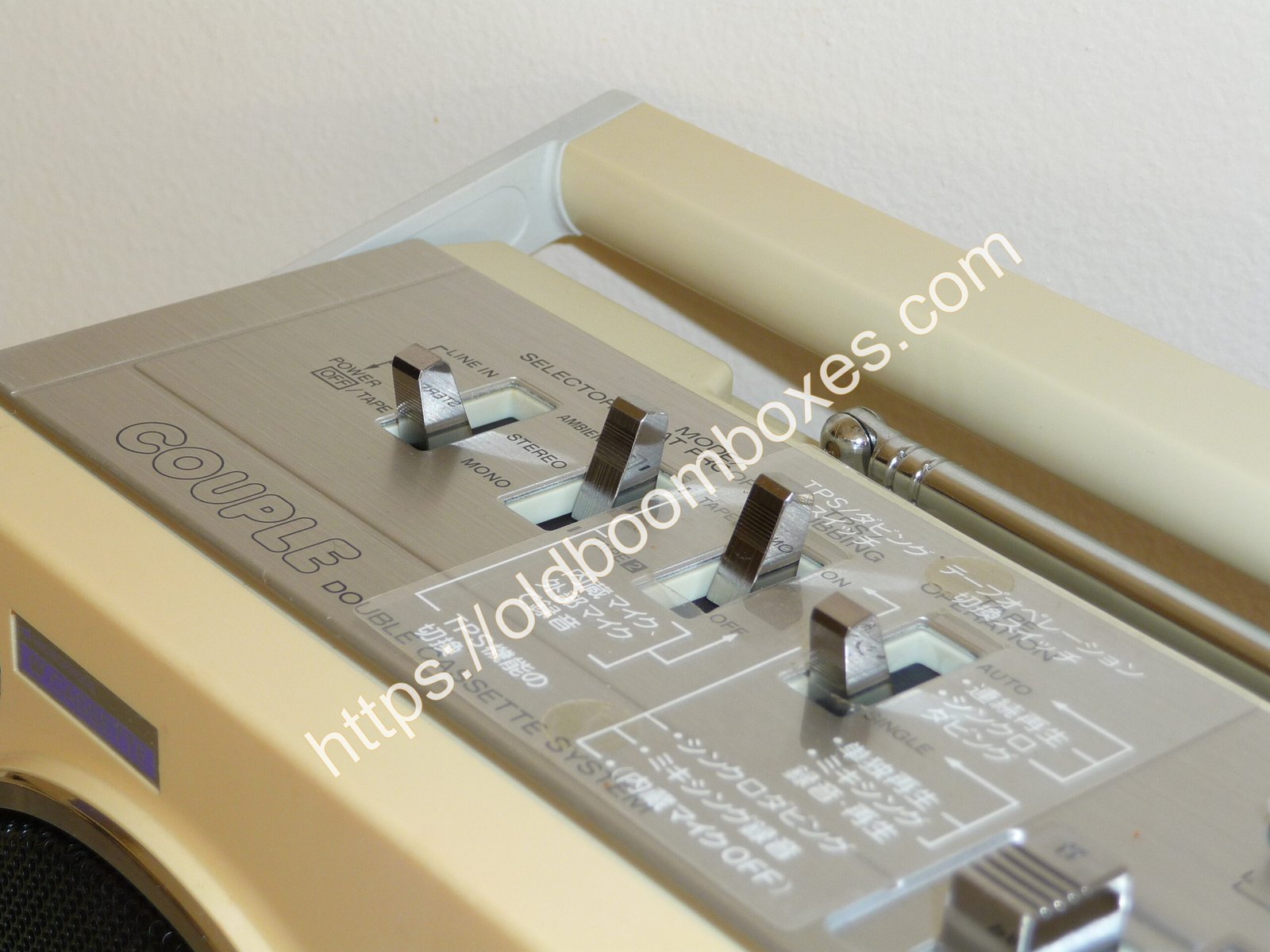

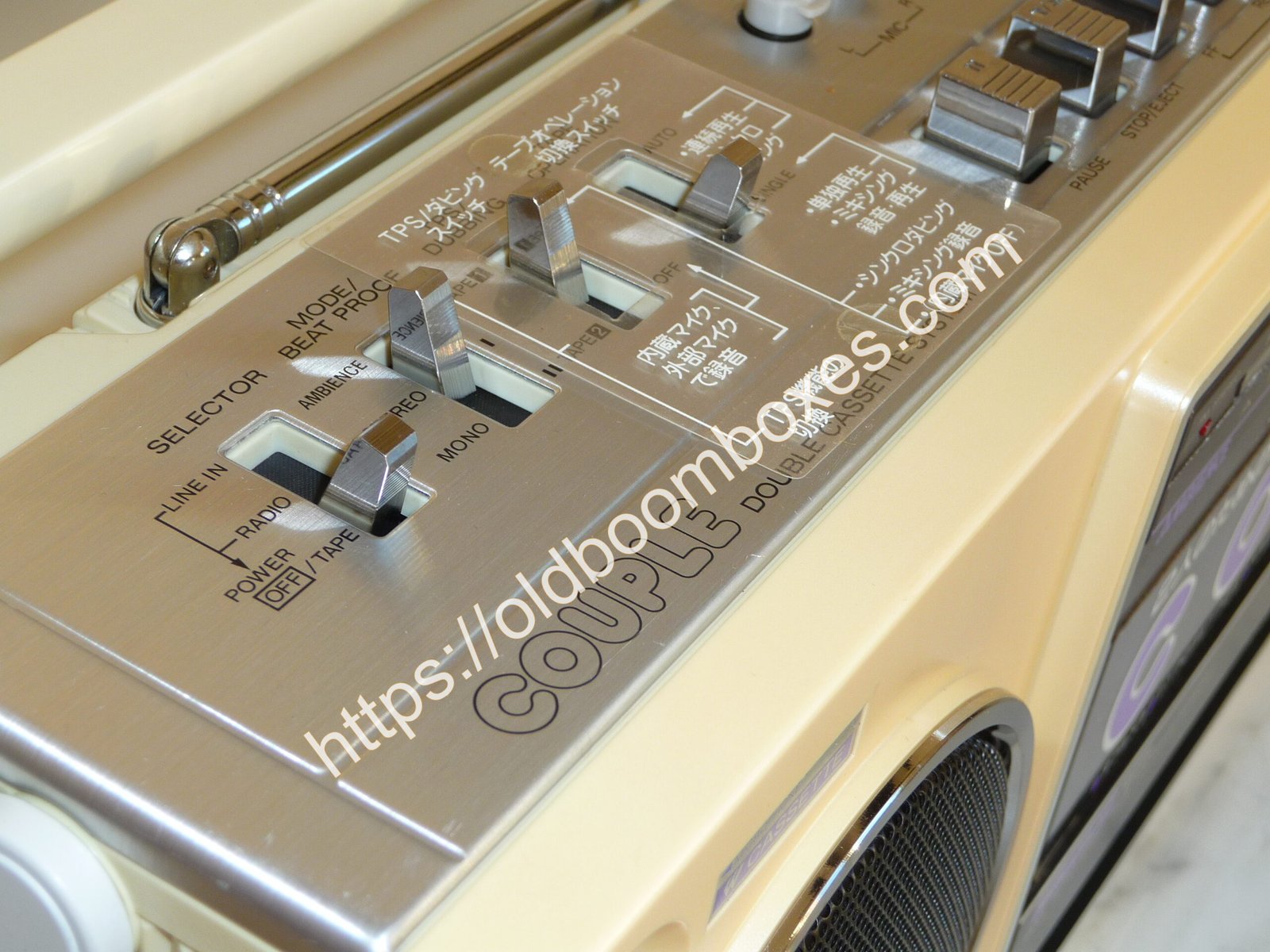

- Ambience Function for Expansive Sound
- FM Wide Band (TV Audio Channels 1–3)
- 5W (EIAJ/DC) Power Amplifier

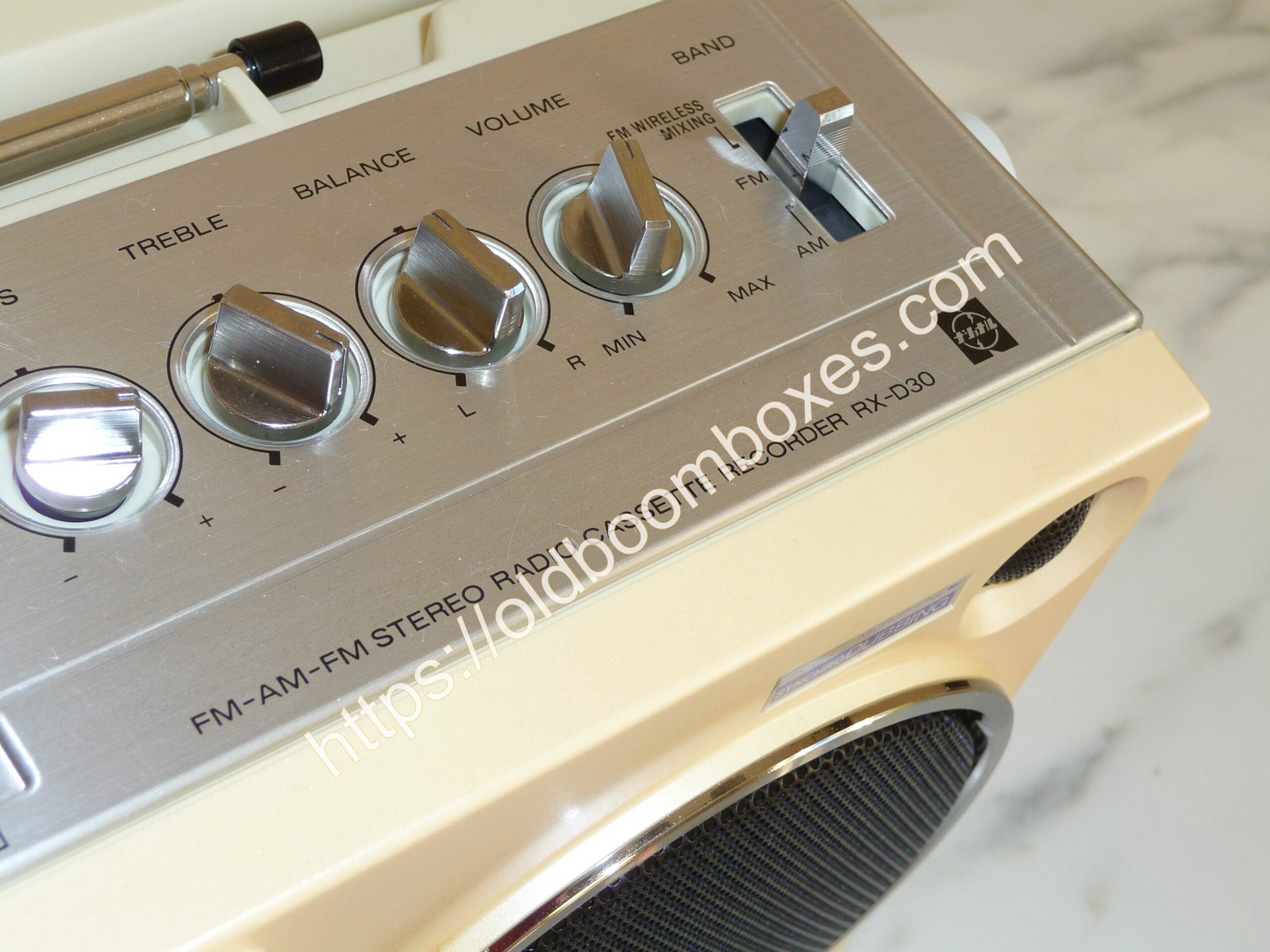

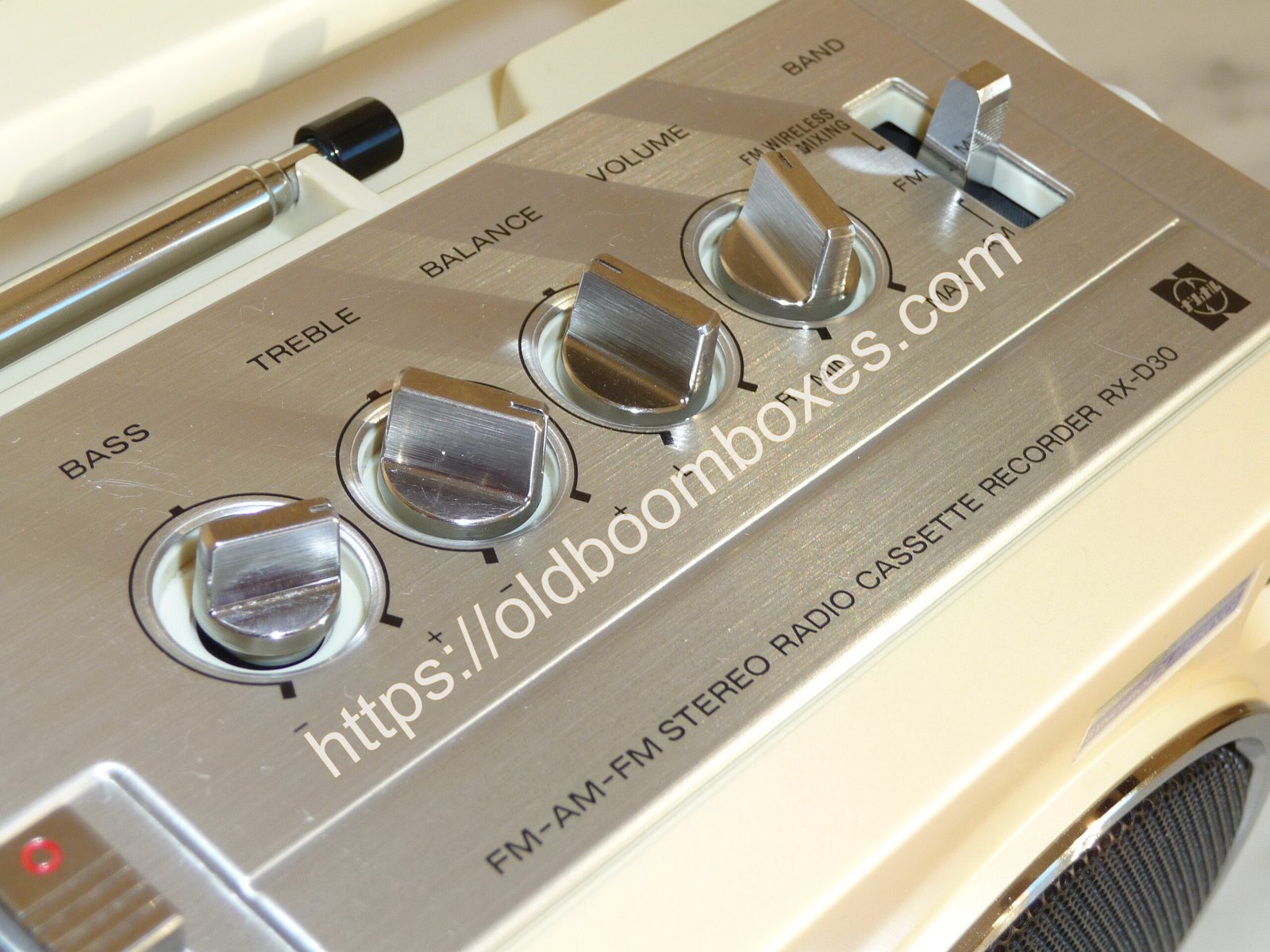

- Bass and Treble Tone Controls

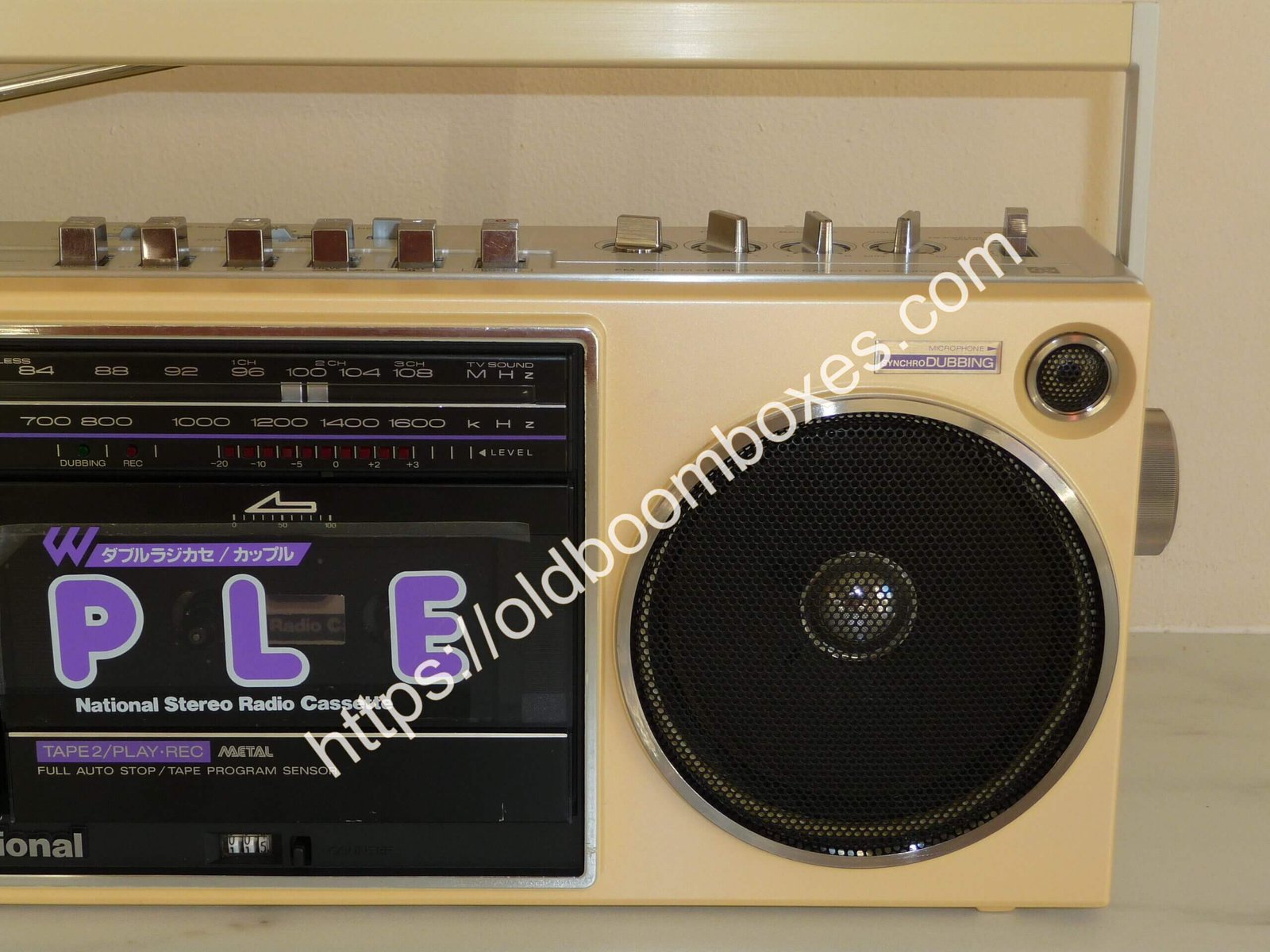

- 3-Way Speaker System
- Relay Playback

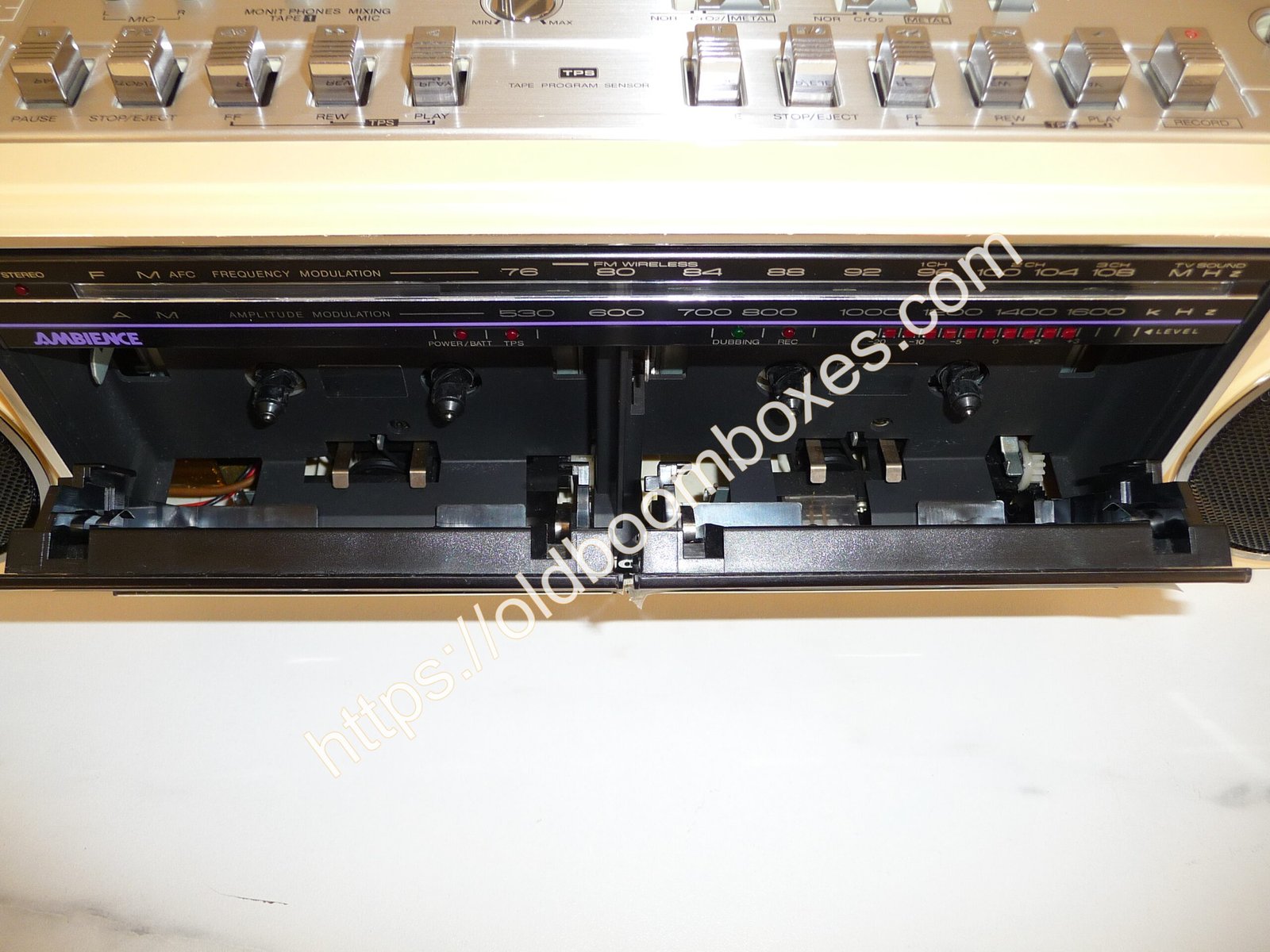

- Simultaneous Dual-Cassette Playback
- Triple Mixing Recording
- Pearl Silver
- Metallic Brown
449.00€
1 in stock

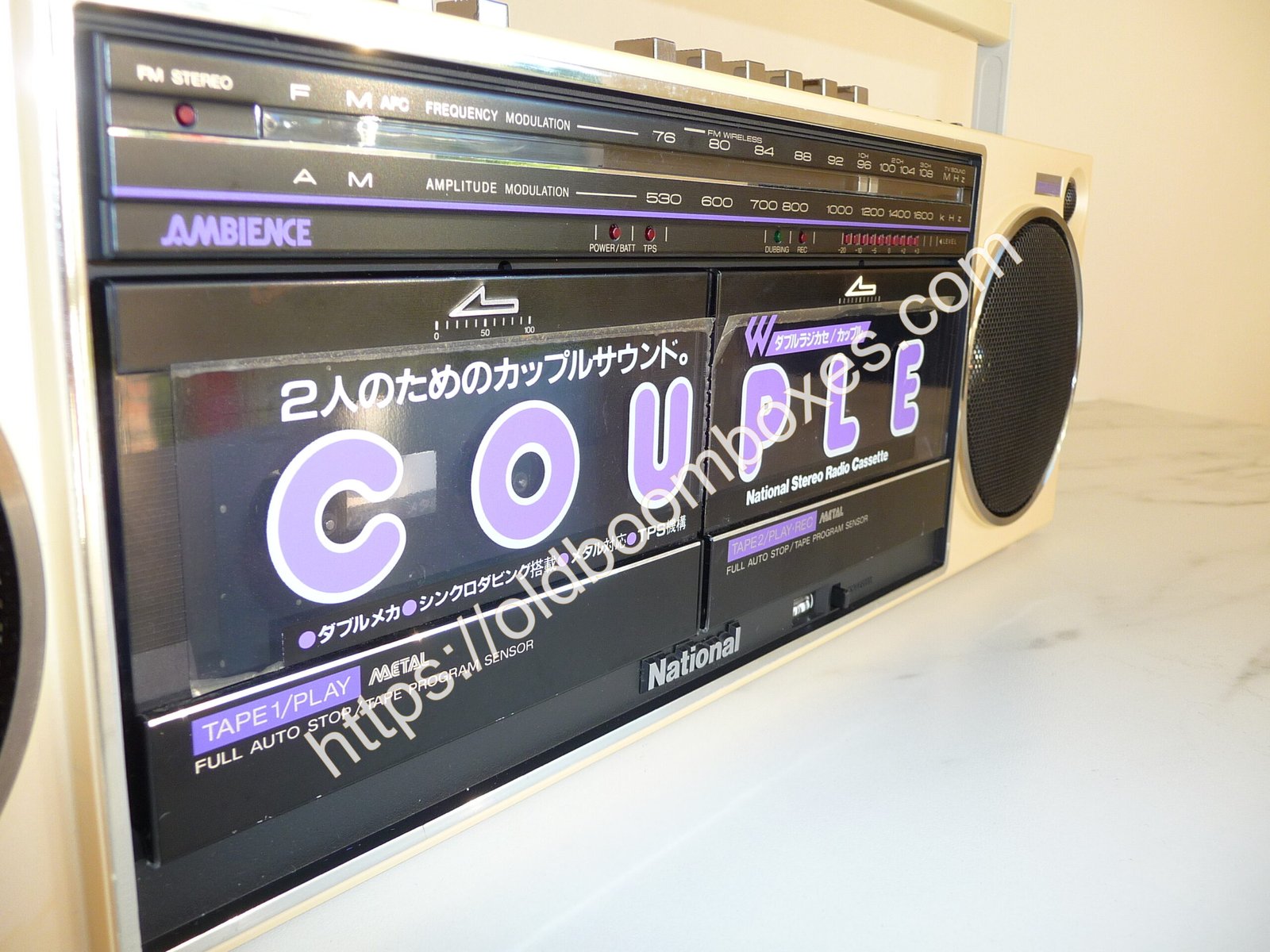

Tape Editing and Continuous Playback – Two People Can Enjoy Different Audio Sources at the Same Time! Easy Tape Editing with Synchronized Dubbing, Simultaneous Playback and Relay Playback. Transfer your favourite sounds from one cassette to another and create your own personalised recordings. During playback, the recording-side cassette deck automatically pauses whenever the playback-side deck is in a mode other than Play. This makes tape editing easy using only the playback-side controls. The simultaneous playback function allows you to compare the original recording with your own recording, making editing even more convenient. Two people can also listen to different tapes at the same time. With relay playback, the second cassette starts automatically when the first cassette finishes.
RADIO SECTION
Receiving Frequency Range: FM: 76 ~ 108 MHz, AM: 525 ~ 1605 kHz
TAPE RECORDER SECTION
Tape 1 (Playback Only)
Track System: Stereo
Frequency Response: Normal 30 ~ 14,000 Hz, Chrome/Metal 30 ~ 15,000 Hz
Monitor System: Variable Sound Monitor System

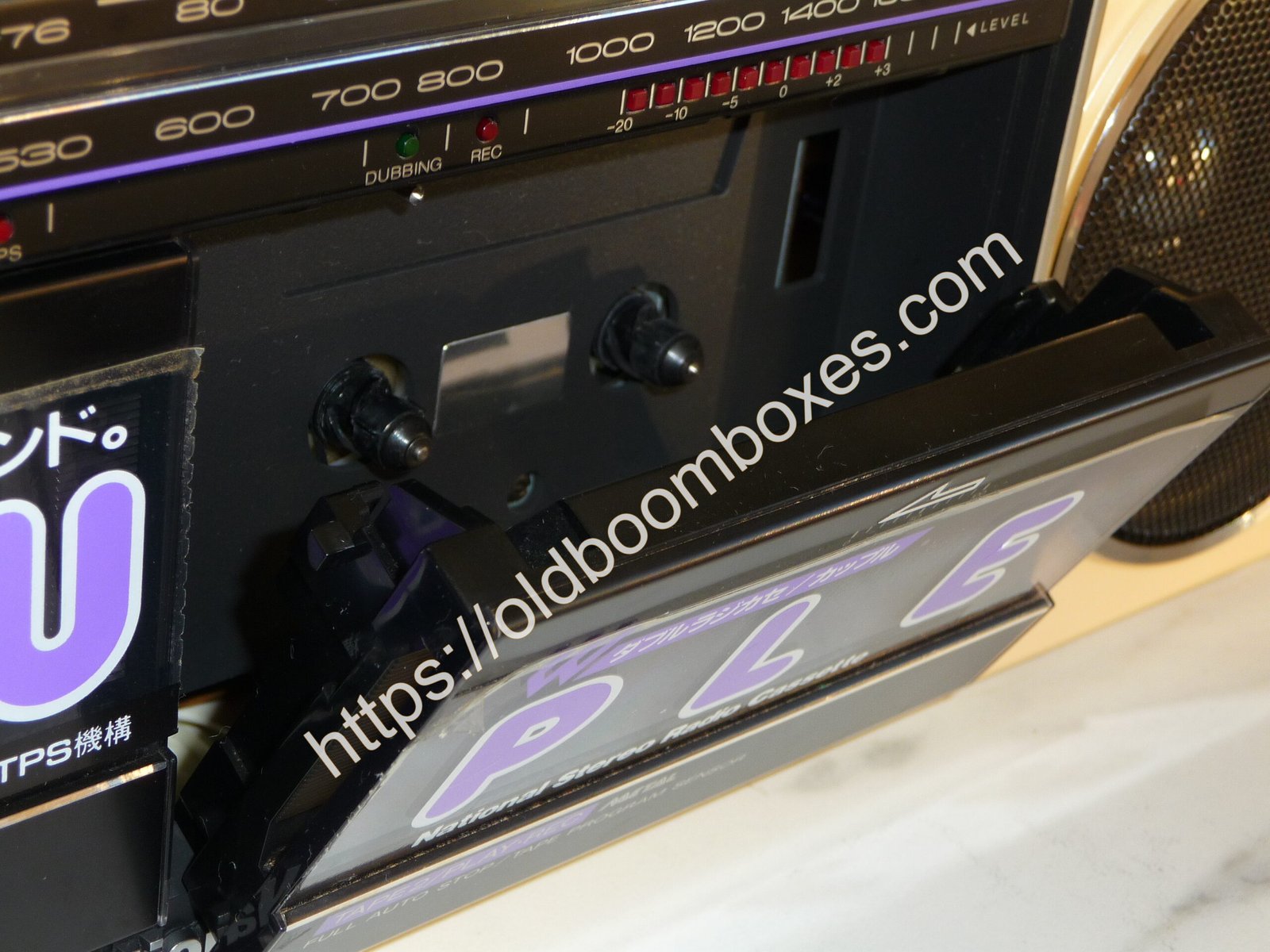

Tape 2 (Recording And Playback)
Track System: Stereo
Recording System: AC Bias (64kHz)
Erasing System: AC Erase
Frequency Response: Normal 40 ~ 13,000 Hz, Chrome 40 ~ 14,000 Hz, Metal 40 ~ 14,000 Hz
Monitor System: Variable Sound Monitor System

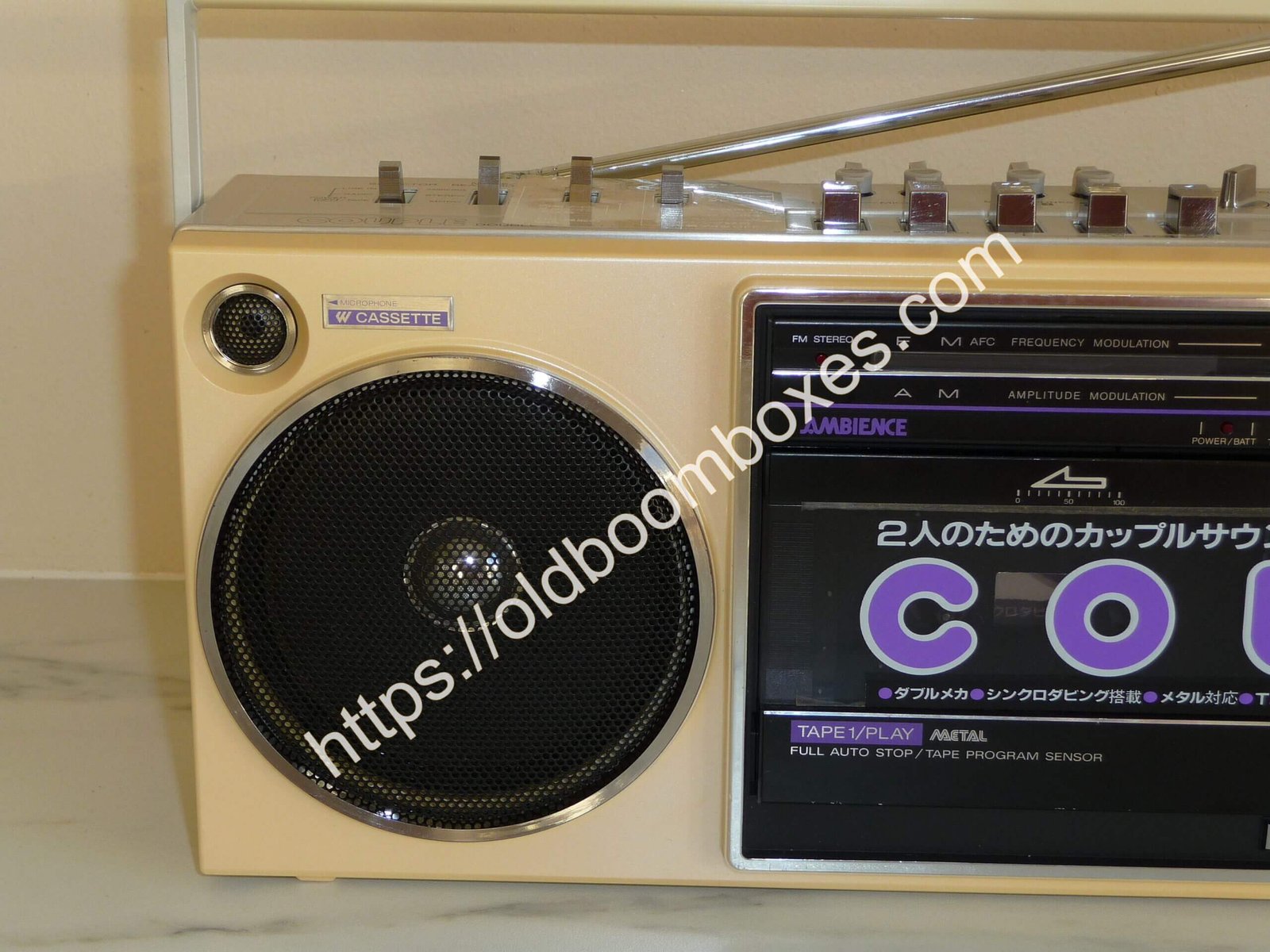

Speakers
Speaker Size: 10cm × 2
Speaker Type: Two Round Speakers
Input Terminals
Microphone Input: Connector M3 (Mini) Jack, Input Sensitivity 0.25mV (L/R), Input Level −72dB Microphone Impedance 200 ~ 600 Ω
Mixing Microphone Input: Input Sensitivity 1mV
Microphone Impedance: 200 ~ 600 Ω

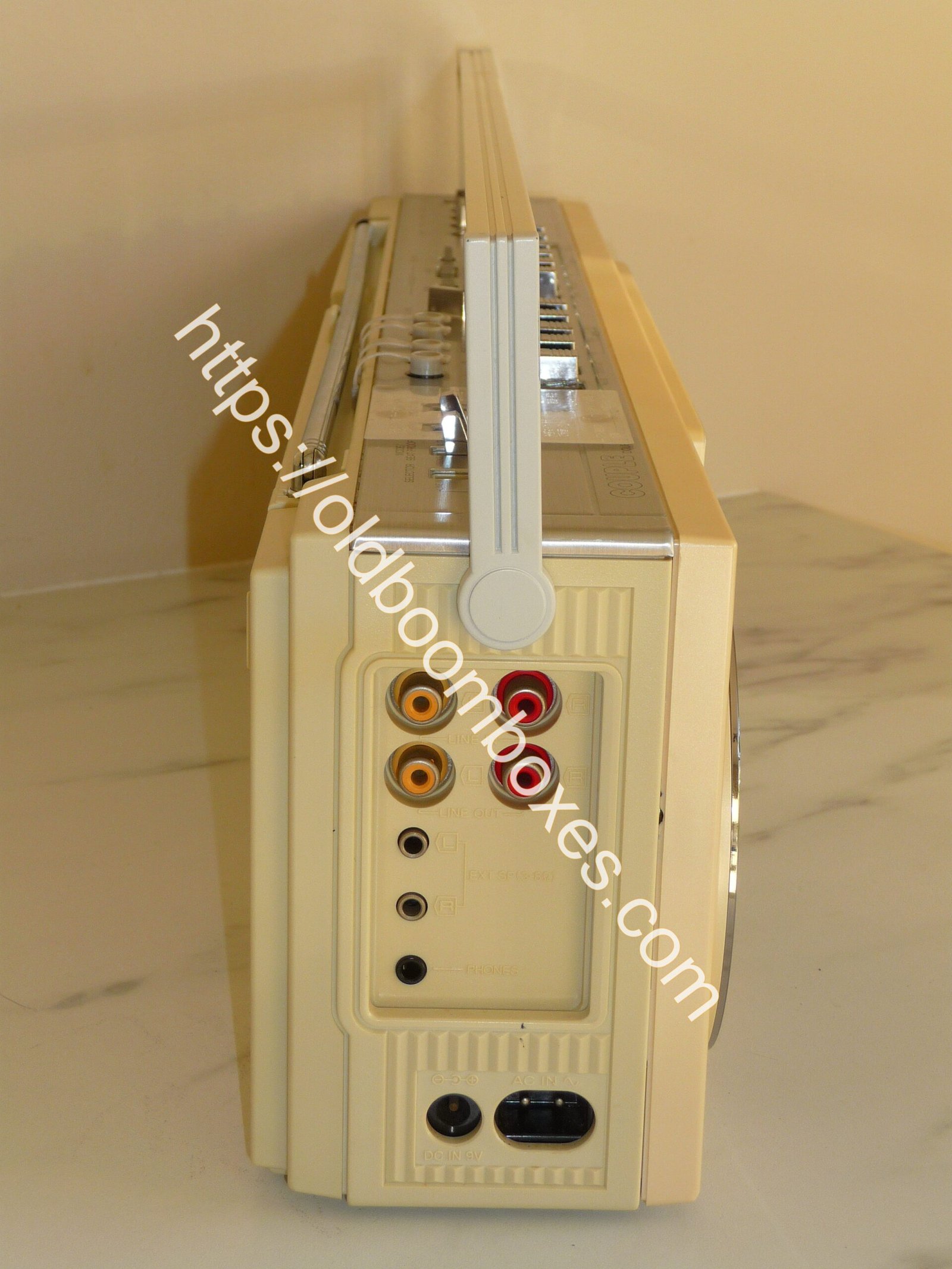

Line Input: Connector Pin Jack (R/L)
Maximum Input Sensitivity: 250mV (−14dB)
Input Impedance: 220 kΩ Or Higher
Output Terminals
External Speakers: Connector M3 (Mini) Jack Impedance 3 ~ 8 Ω (R/L)
Monitor Headphones: Connector Pin Jack Impedance 32 Ω
Line Output: Connector Pin Jack (R/L)
Standard Output Level: 420mV
Output Impedance: 5 ~ 6 kΩ Or Lower
Headphones: Impedance 32 Ω
Audio Output Maximum Practical Output: 2.5W + 2.5W = 5W (EIAJ/DC)
Battery Life: Approx. 8.5 Hours (EIAJ)
Battery Type: National Neo Hi-Top UM-1 (NG)
Recording Time: Approx. 4 Hours Of Continuous Recording
Standby Time: 15 Hours Or More
Battery Life Based On Intermittent Recording

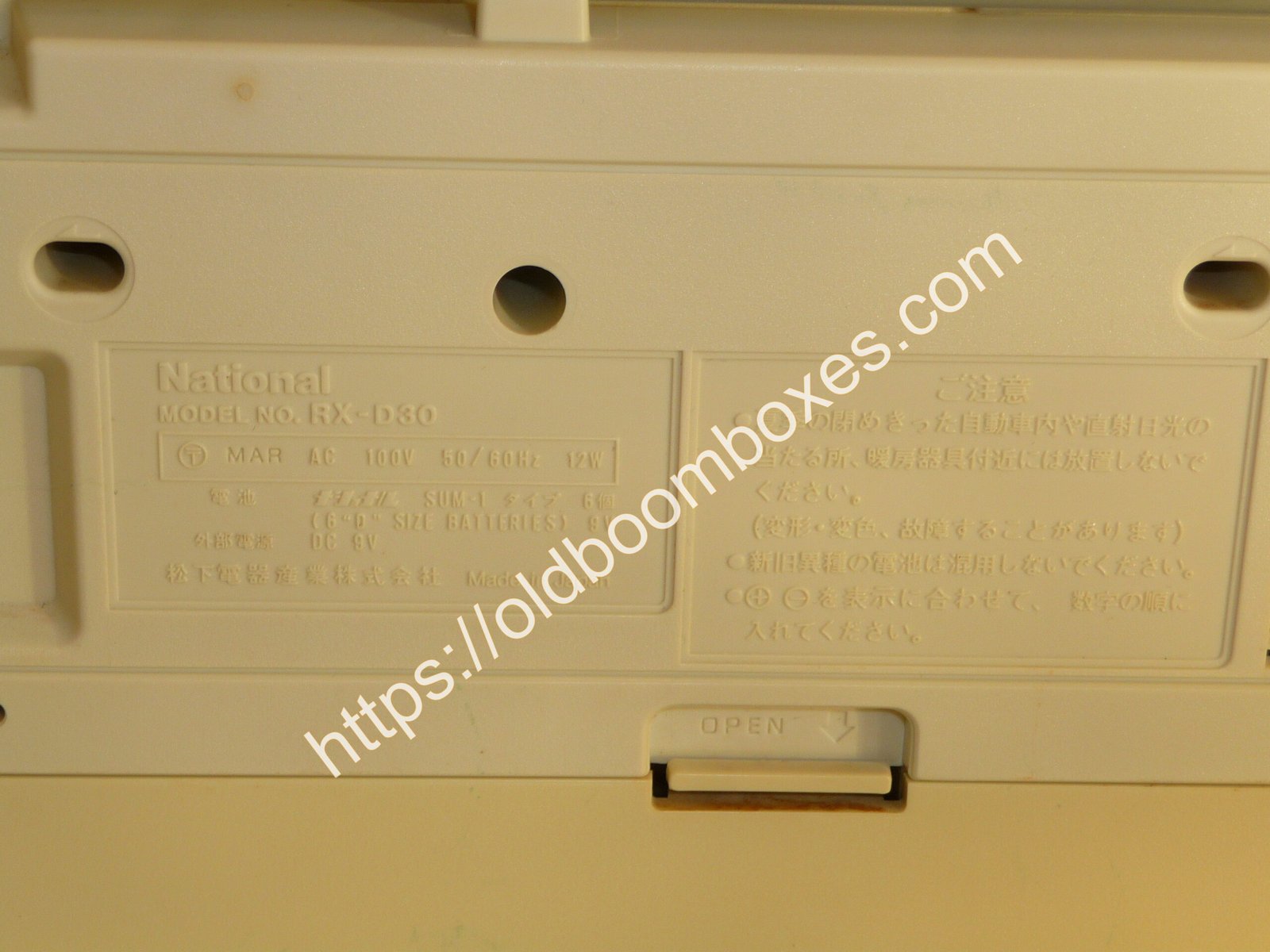

Power Supply: AC Power 100V (50/60Hz), DC Power 9V (Six D-Size Batteries)
Car Battery: 9V (Using RD-9380A Car Adapter)
Power Consumption: 12W (AC Operation)
Dimensions: 507 (W) × 171 (H) × 154 (D) mm
Weight: 4.5 kg (Including Batteries)
