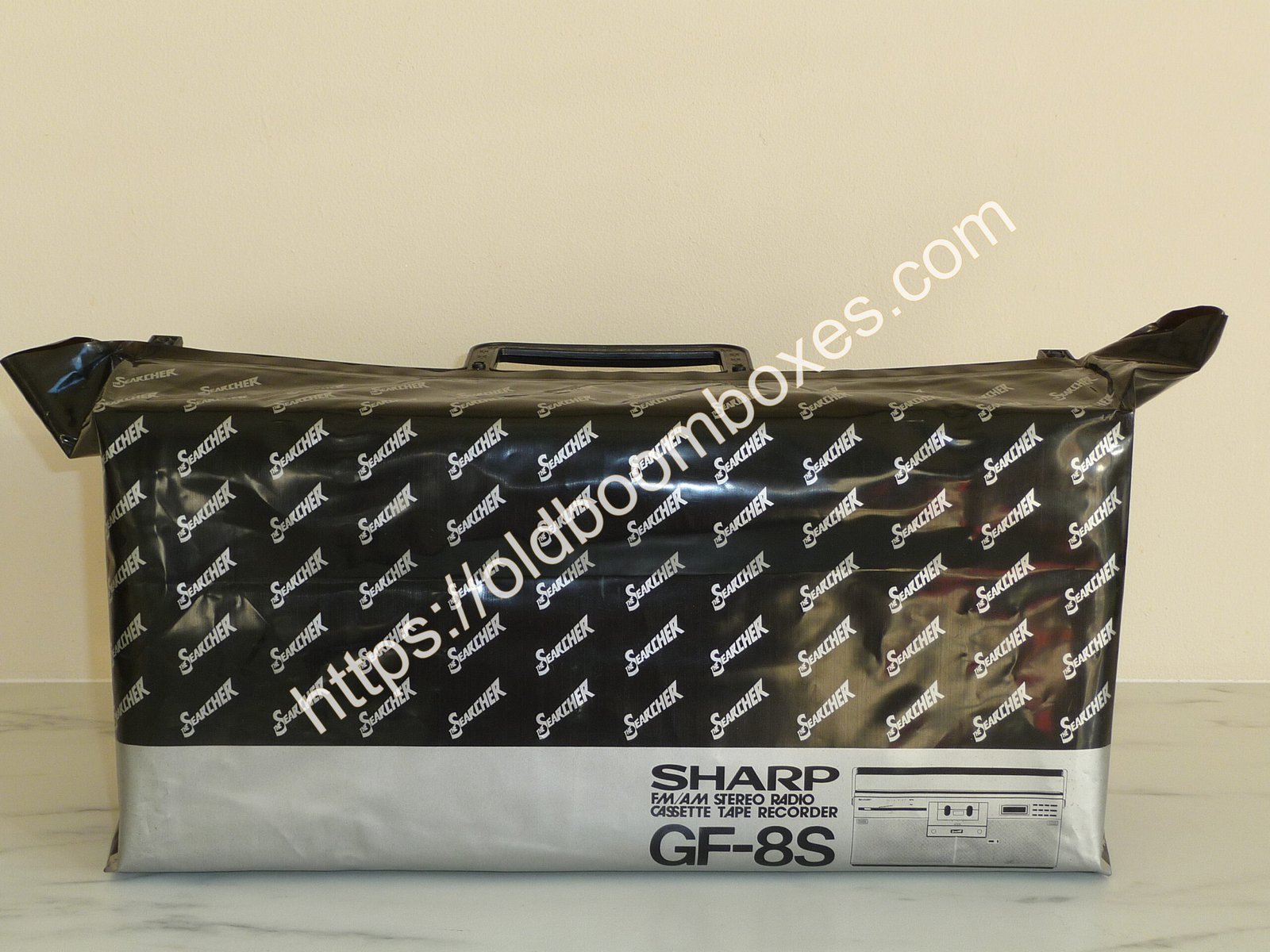

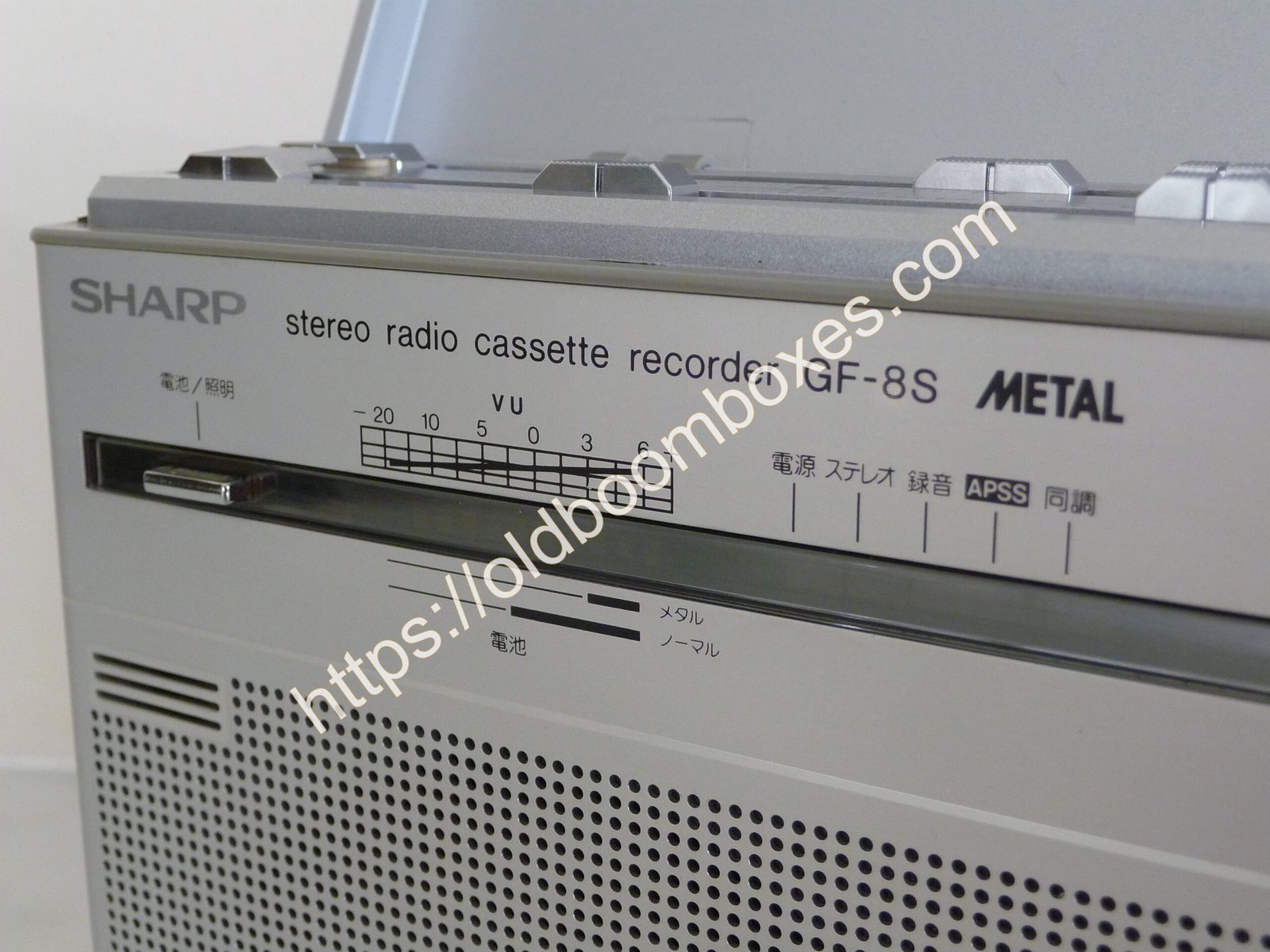

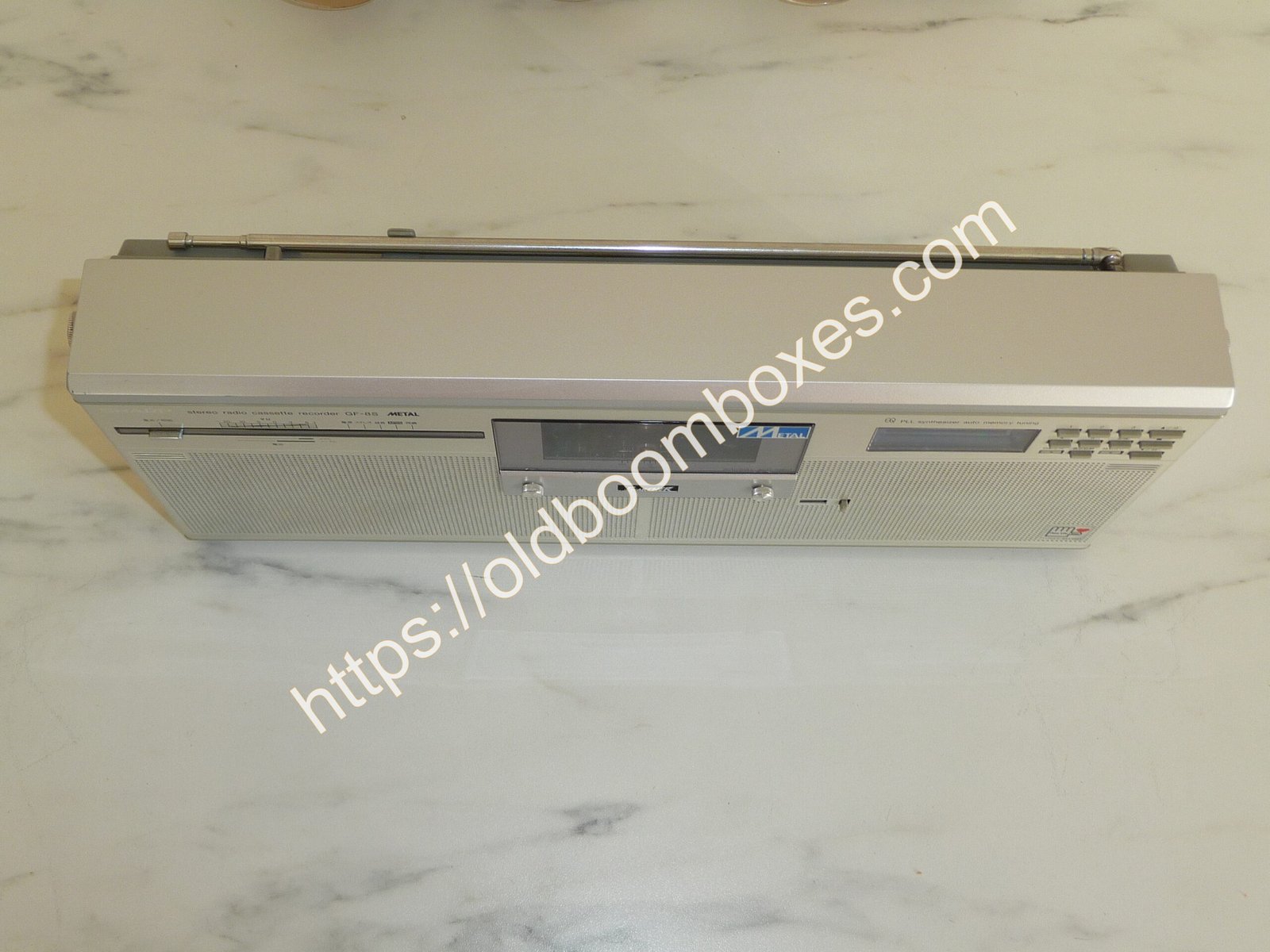

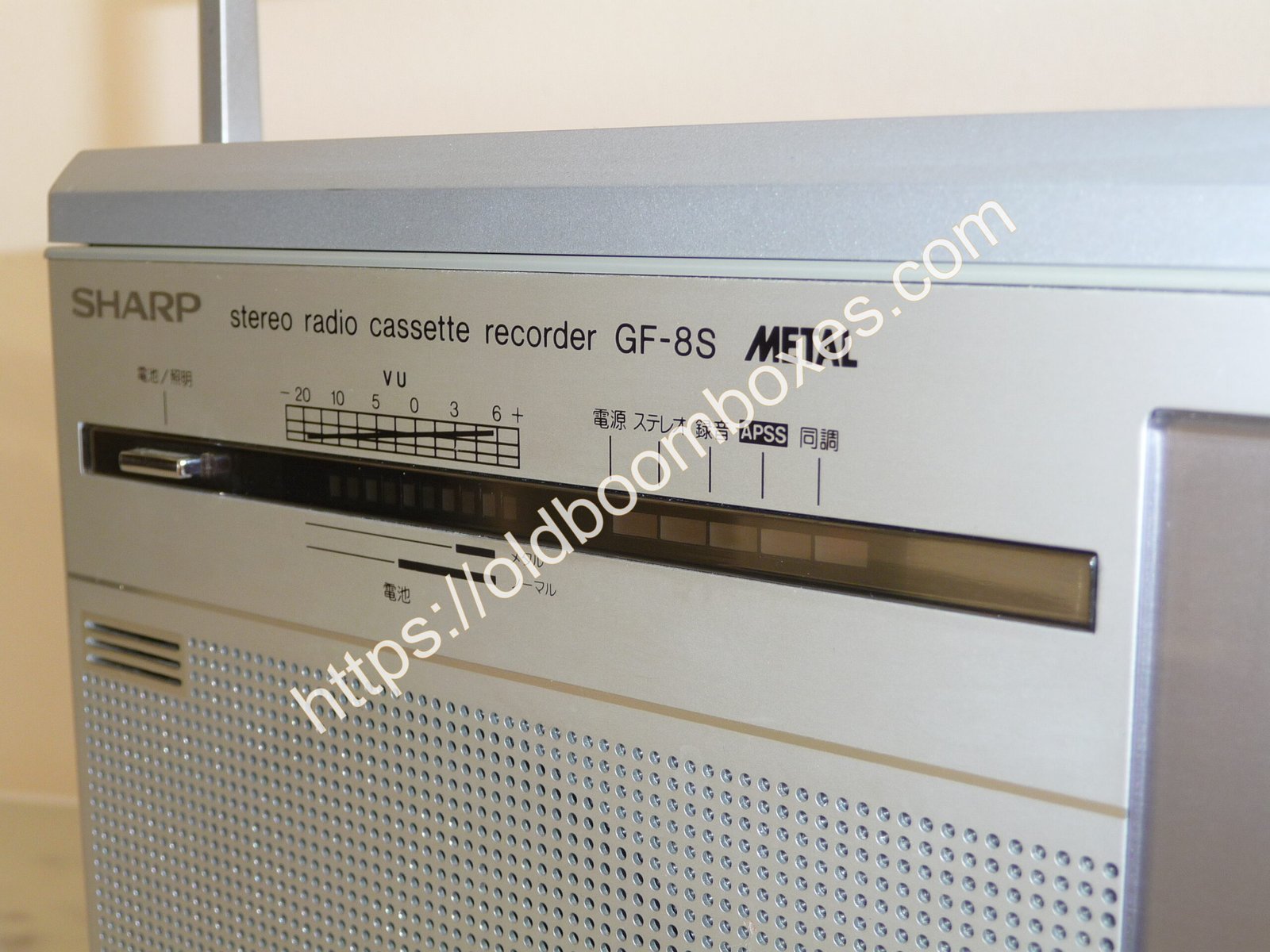

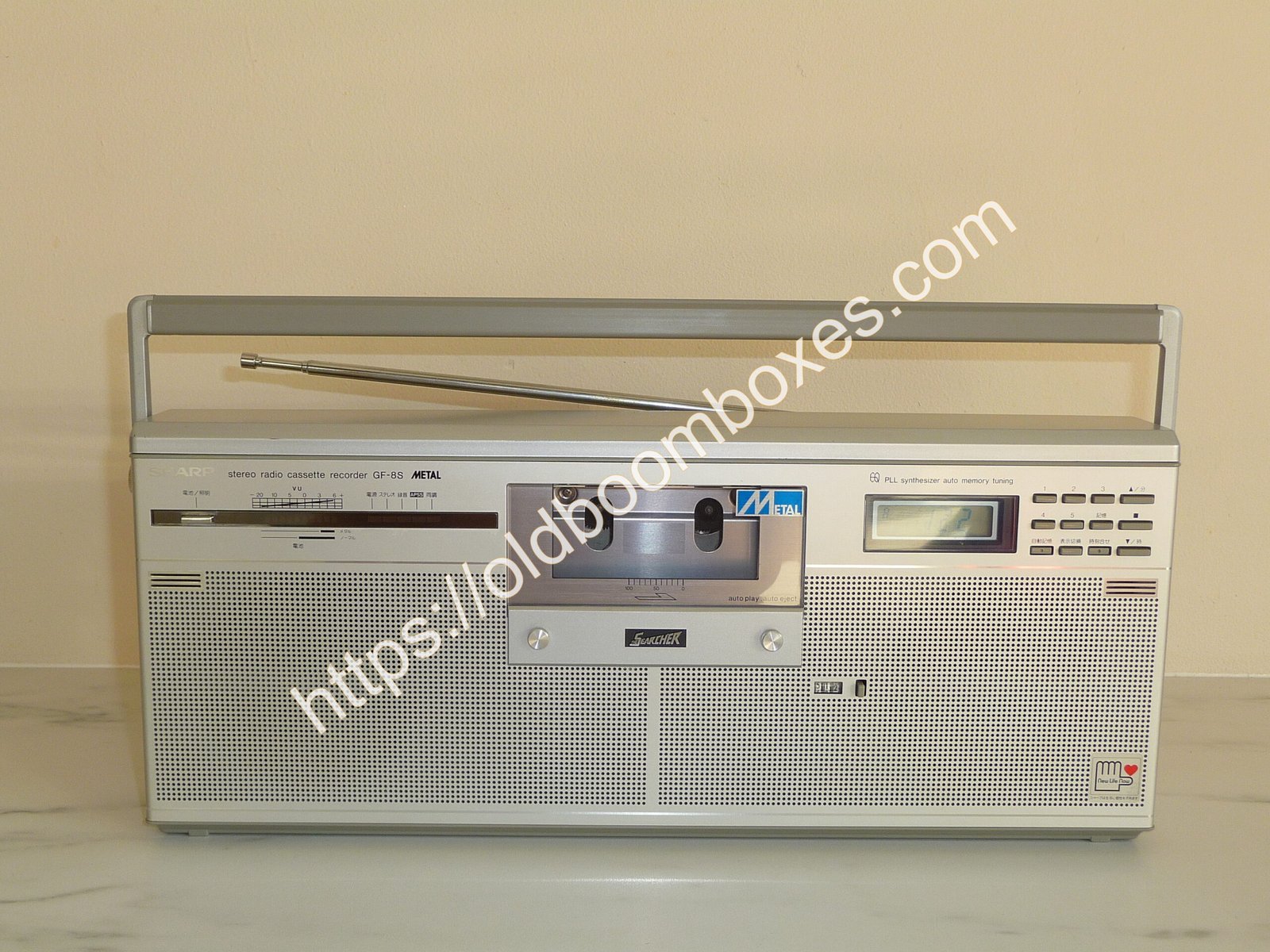

SHARP GF-8S Stereo Radio Cassette Recorder
1 in stock
SHARP GF-8S
Future:
- Manufactured Date 1980 of March
- Stereo radio cassette recorder

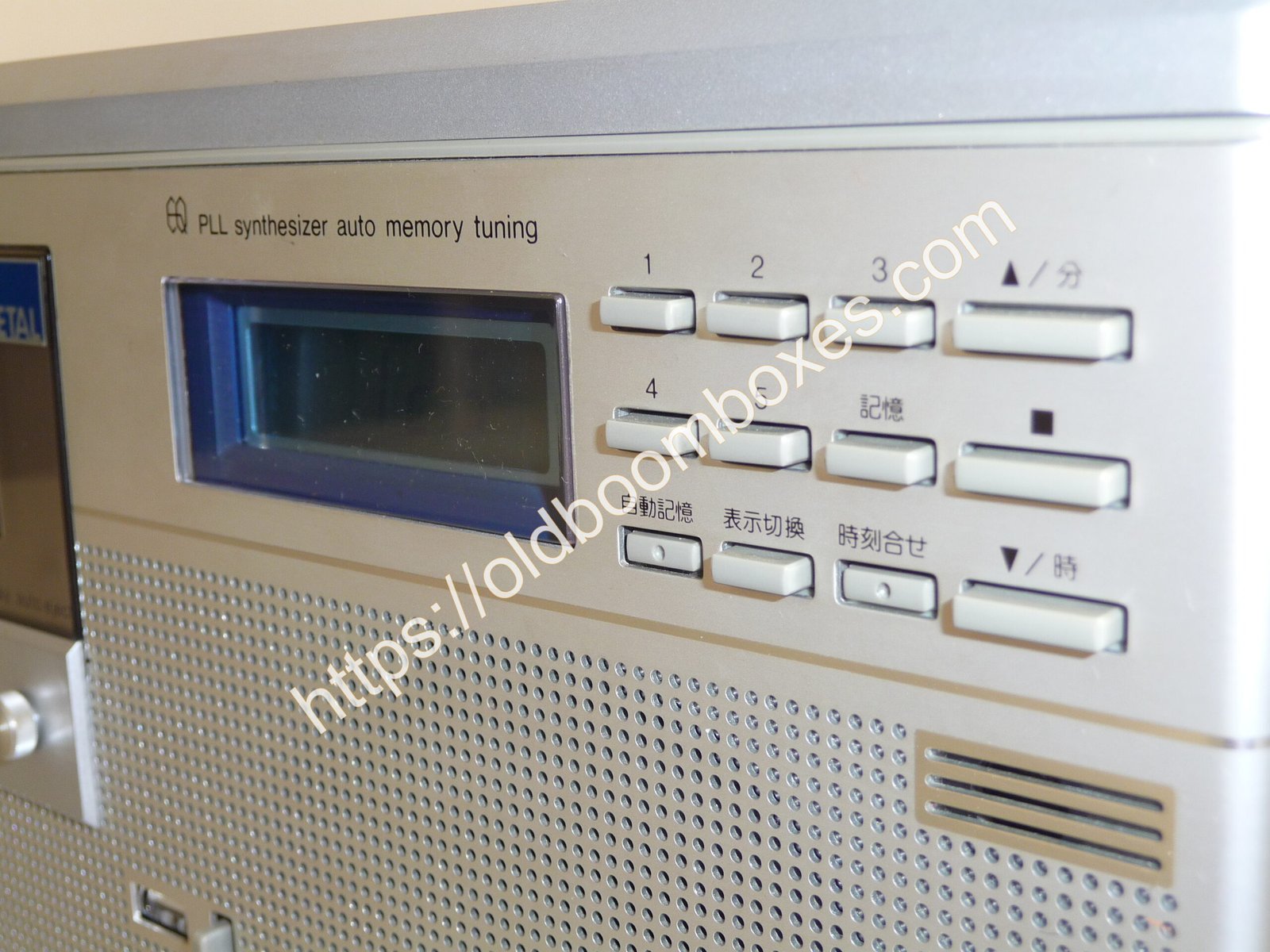

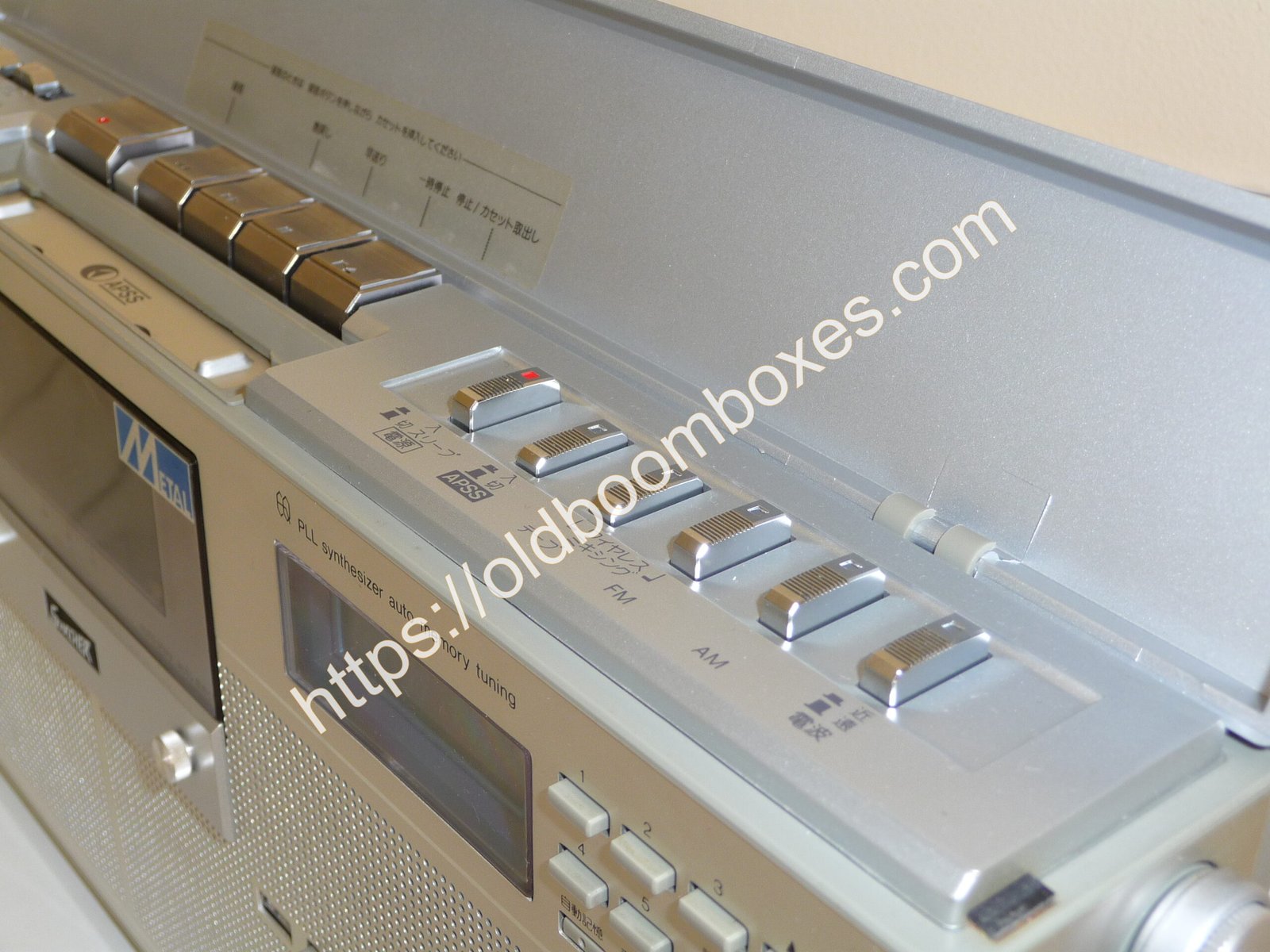

- PLL synthesizer radio tuning

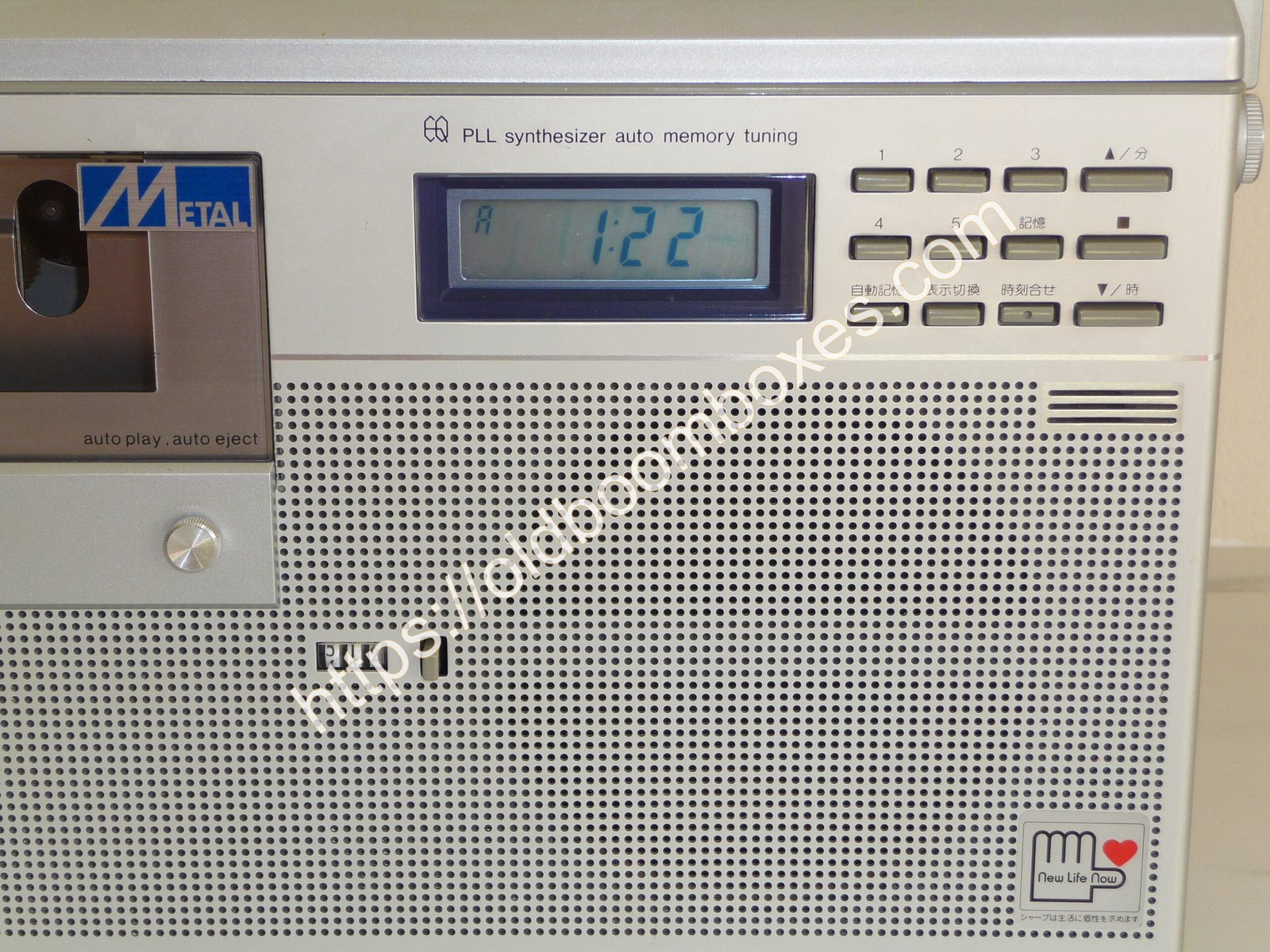

- Digital frequency display and quartz clock
- Metal cassette tape compatibility
- Built-in stereo speakers
- Portable battery-powered operation
Available colors:
- Silver
- Black
$1,753.00
1 in stock

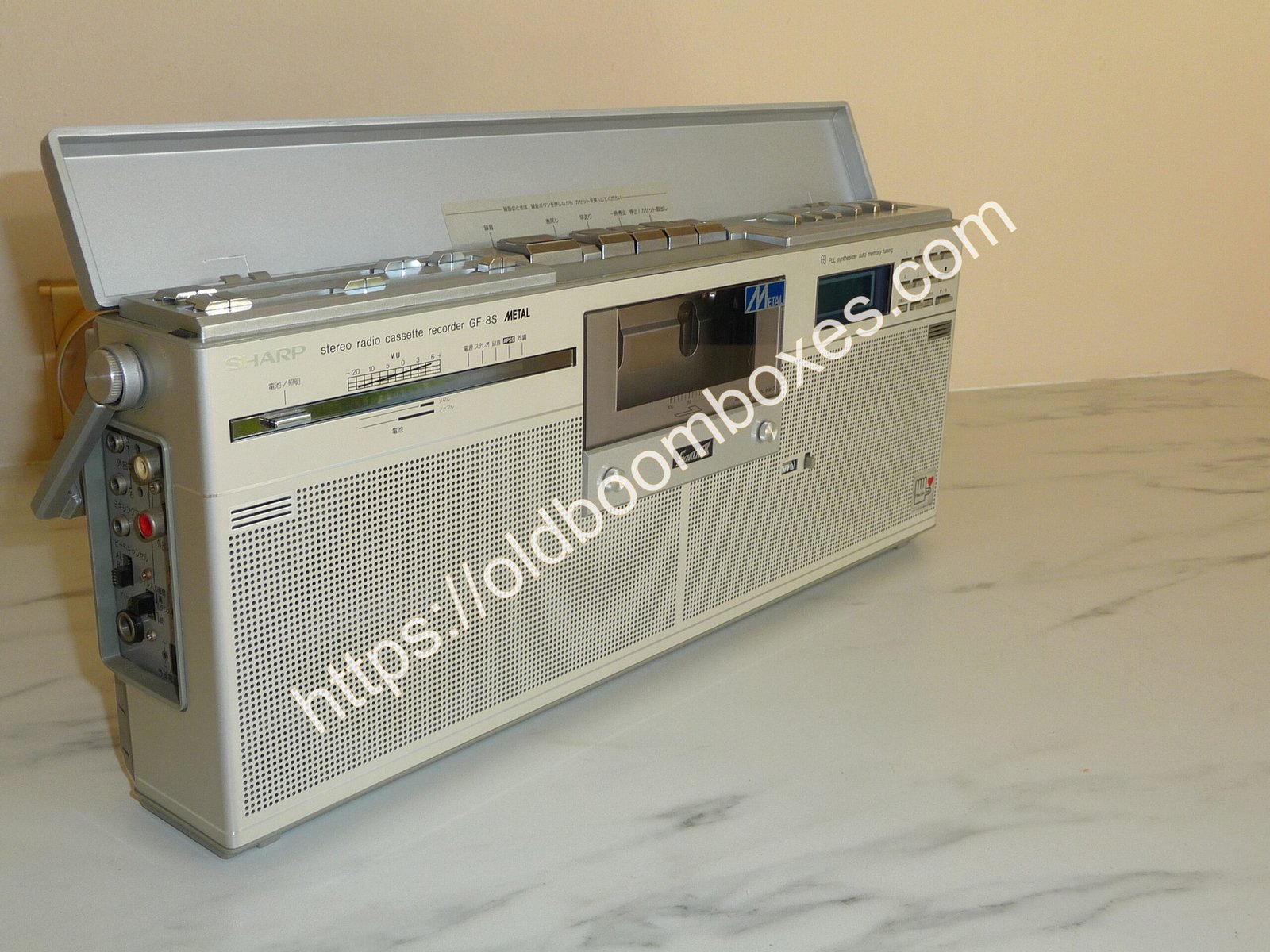

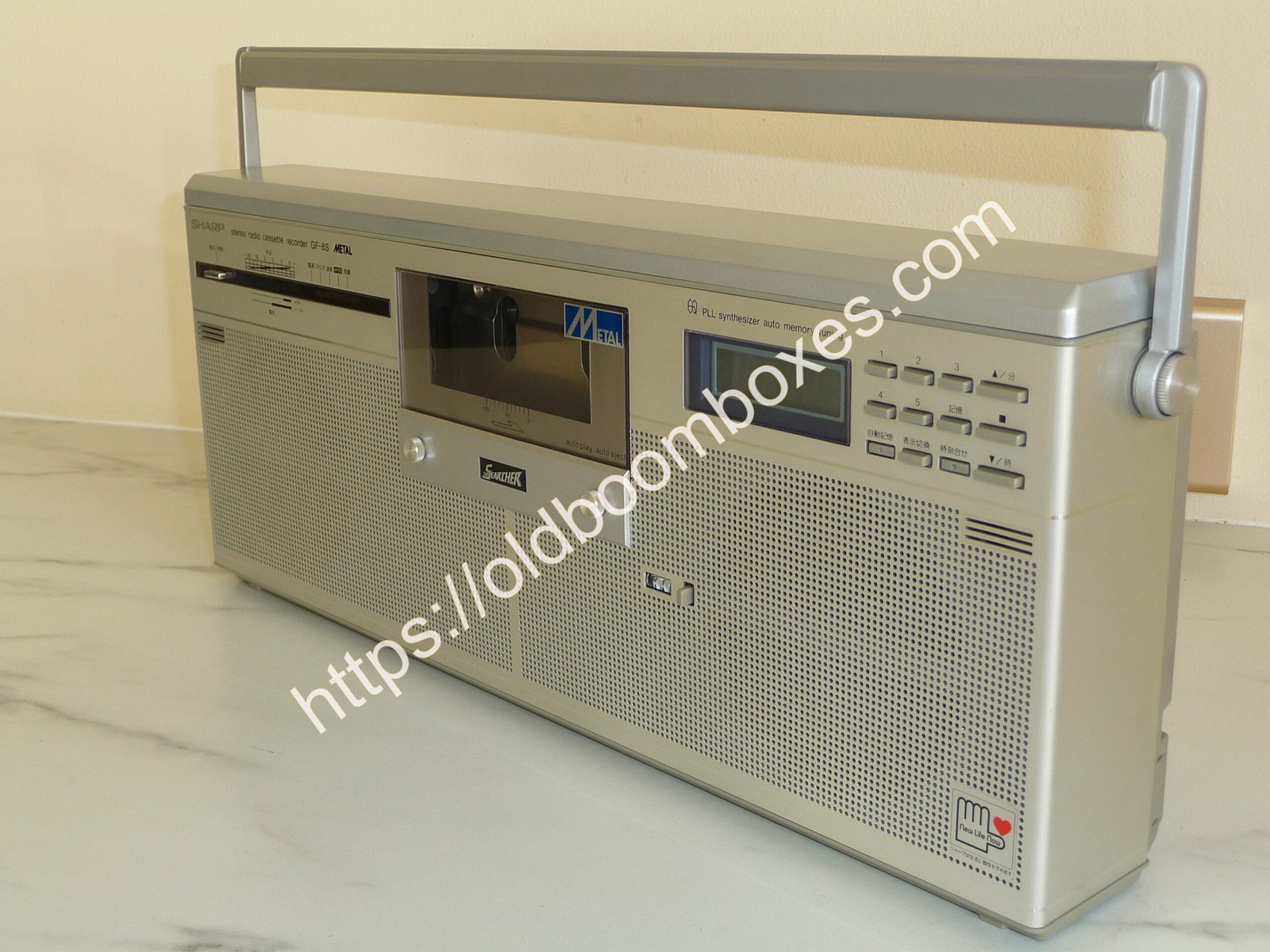

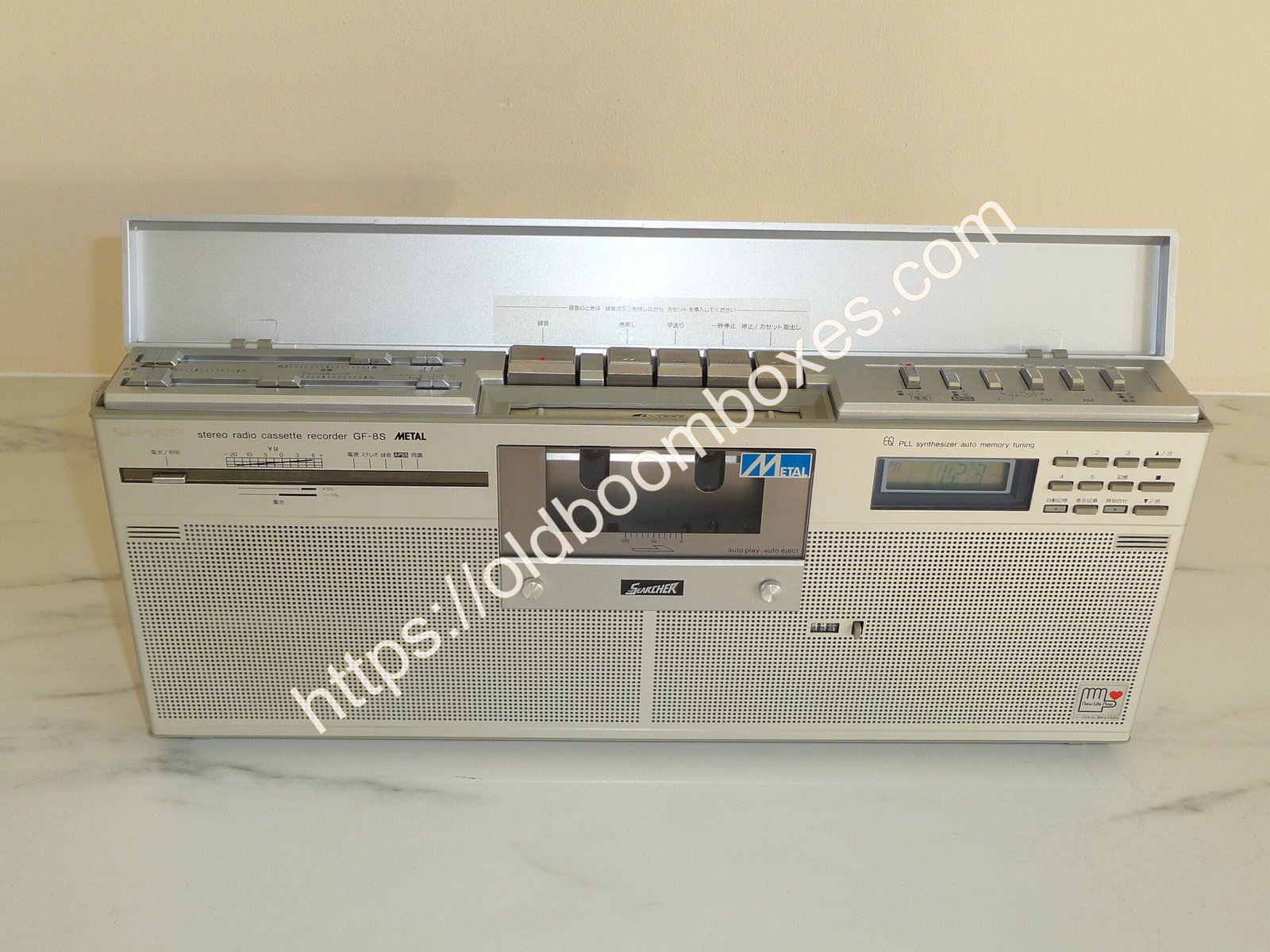

The Sharp GF-8 is a vintage Japanese portable radio cassette recorder featuring classic retro styling and a compact, practical design. Combining radio reception and cassette playback in one unit, it represents the distinctive design and audio technology of the late 1970s and early 1980s. Its traditional analogue controls, built-in speaker system, and cassette mechanism capture the nostalgic charm of Japan’s golden age of portable audio equipment. Today, the Sharp GF-8 is an appealing collectible for vintage audio enthusiasts, Sharp collectors, and anyone who appreciates authentic Japanese retro electronics.
Type: FM/AM 2-Band Radio Cassette Stereo Tape Recorder
RADIO SECTION
Receiving Frequency:
FM 76–90 MHz (0.1 MHz Step)
AM 531–1602 kHz (9 kHz Step)
Intermediate Frequency:
FM 10.7 MHz
AM 450 kHz

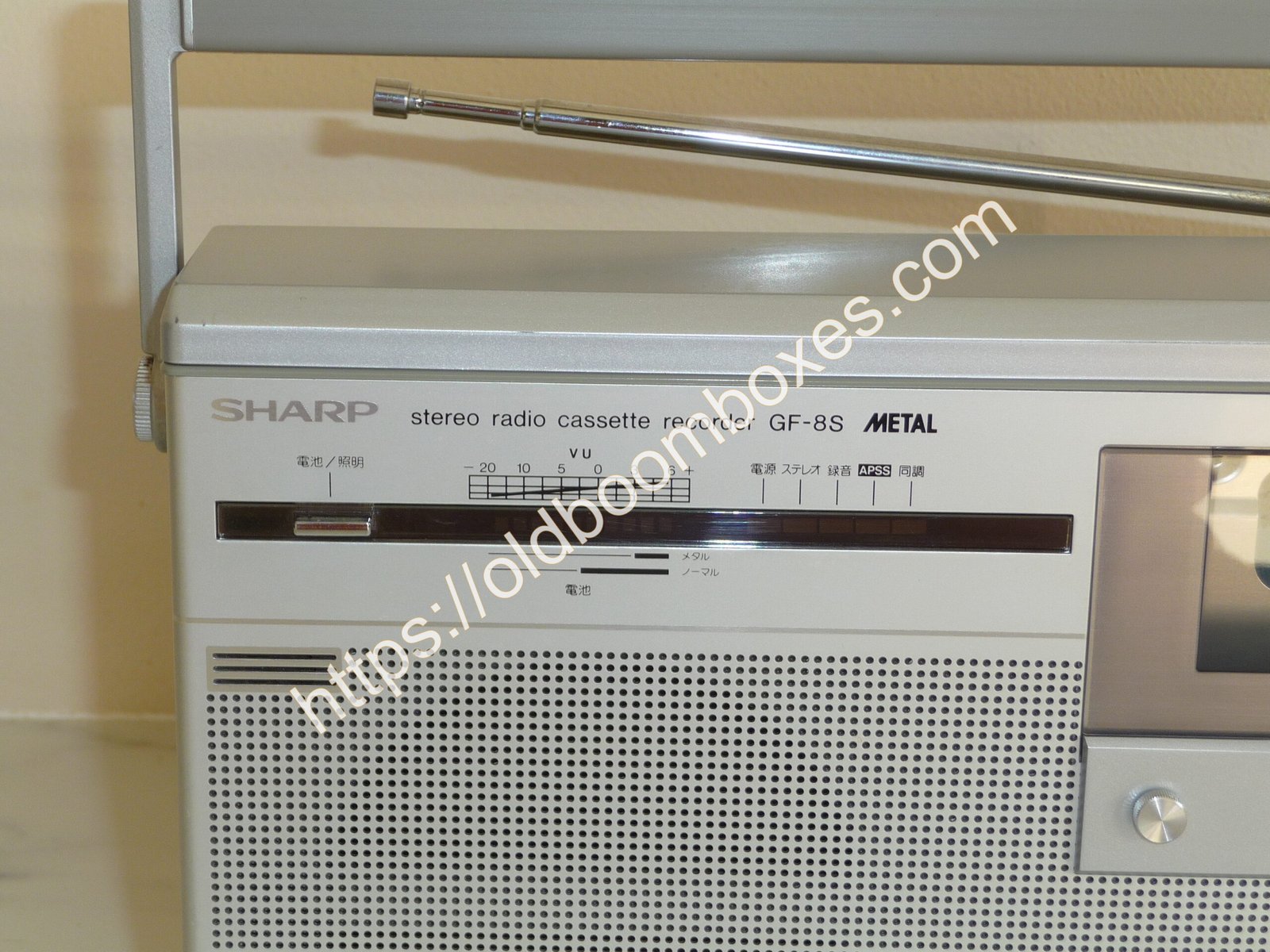

Antenna:
FM Rod Antenna
AM Built-In Ferrite Bar Antenna

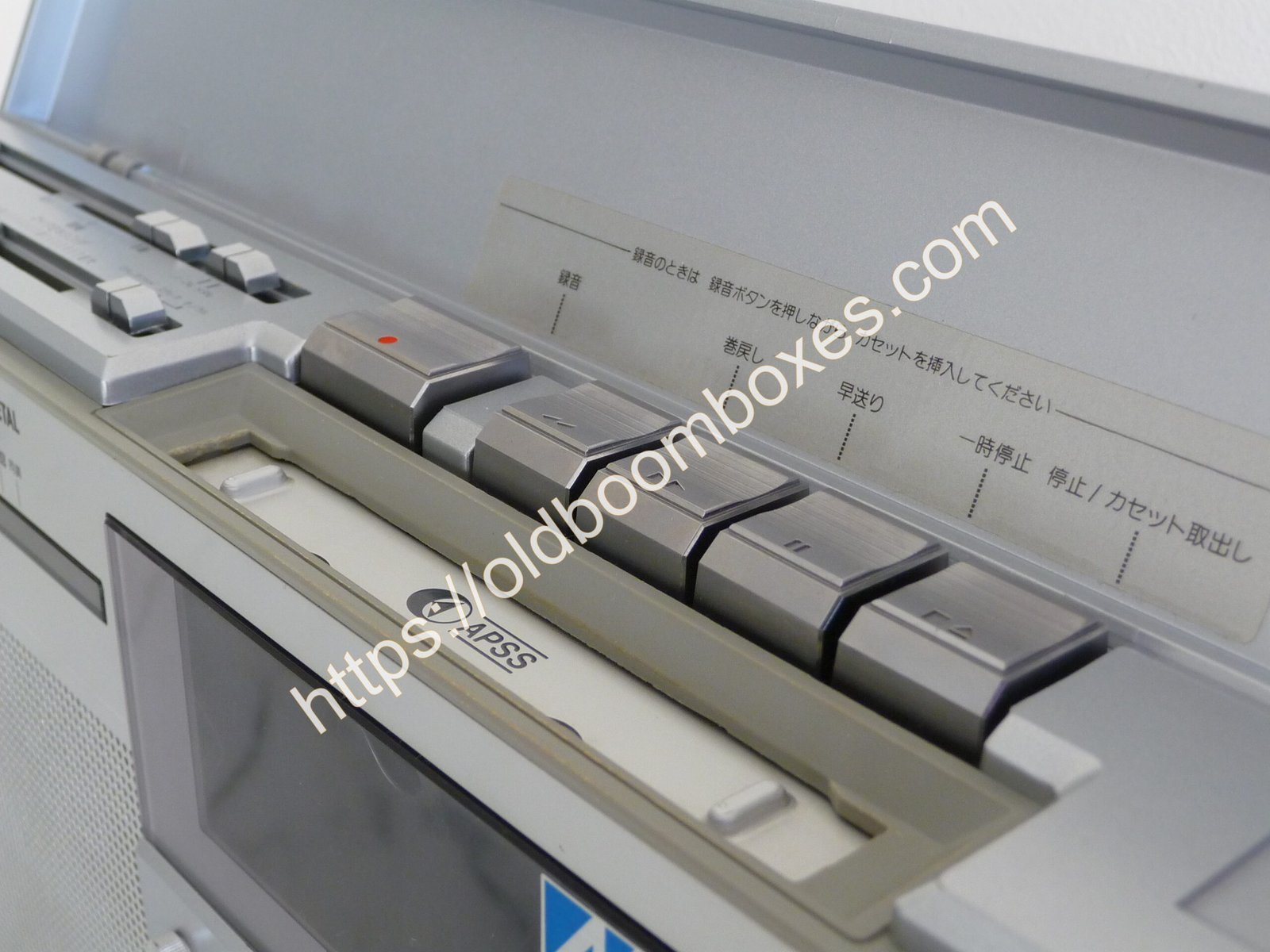

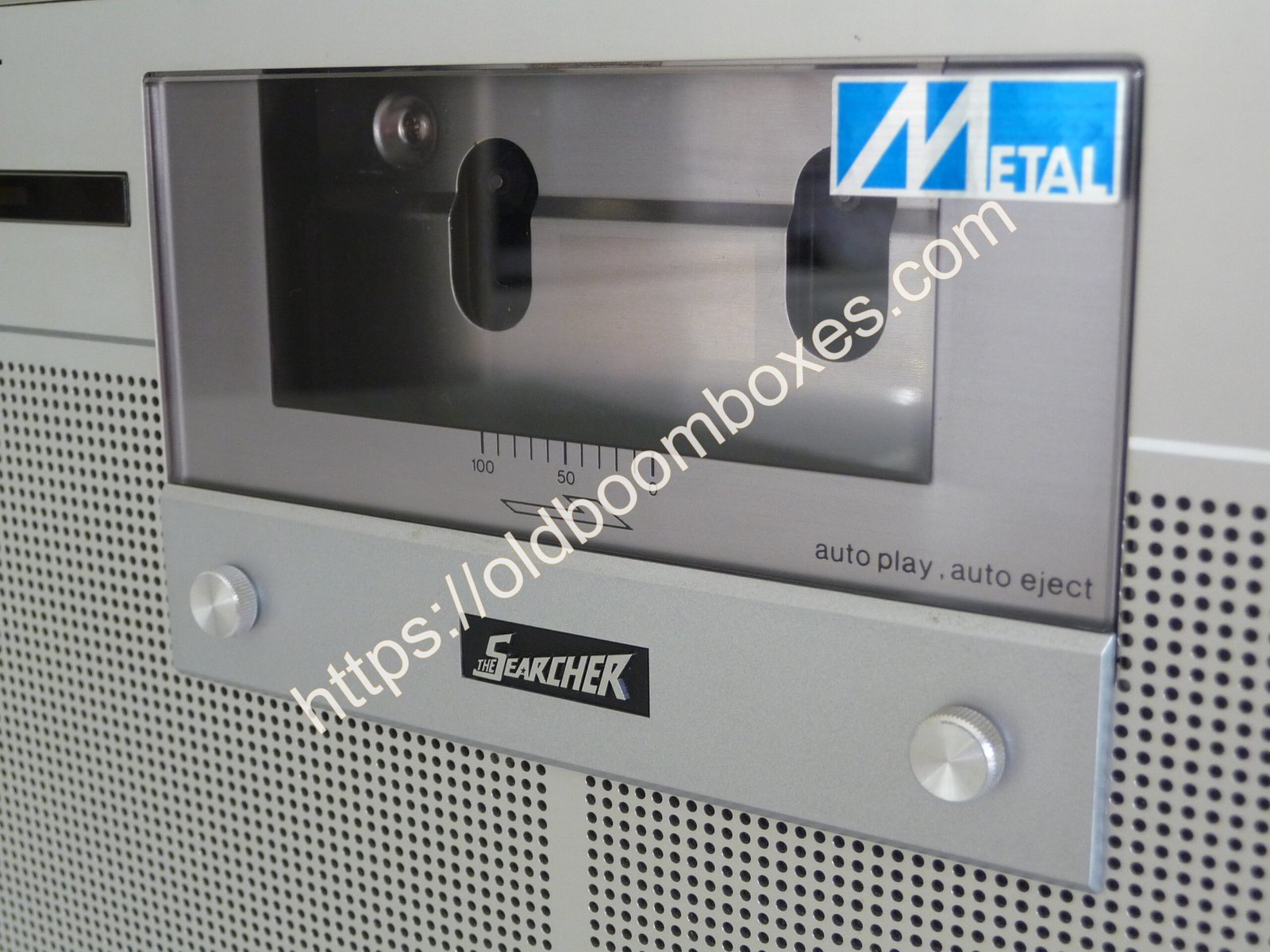

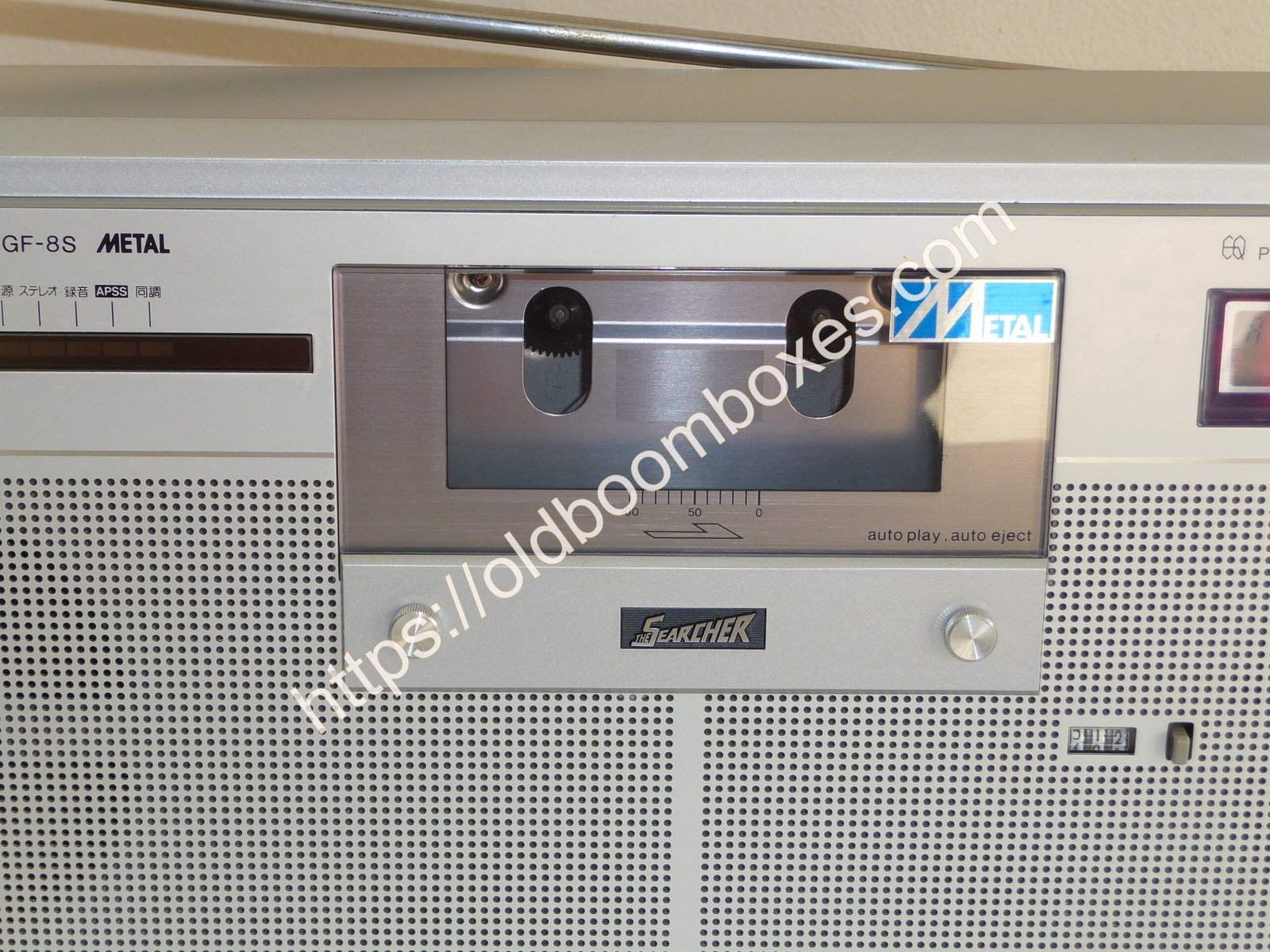

TAPE RECORDER SECTION
Track System: 4-Track 2-Channel Stereo
Recording System: AC Bias System
Erasing System: AC Erase System
Applicable Tape: Philips Standard Compact Cassette Tape
Recording Time: 60 Minutes Each Side (With C-60 Tape)
Fast Forward Time: 120 Seconds (With C-60 Tape)
Rewind Time: 120 Seconds (With C-60 Tape)
Frequency Response:
40–12,000 Hz (Normal Tape)
40–16,000 Hz (Metal Tape)
Signal-To-Noise Ratio: 50 dB
COMMON SECTION
Semiconductors: 1 LSI, 13 ICs, 39 Transistors, 3 FETs, 45 Diodes, 11 Light-Emitting Diodes, 1 Hall Element
Monitor System: Variable Monitor System
Speakers: 9.2 cm Dynamic Speakers × 2
Maximum Practical Output: 5 W (2.5 W + 2.5 W), EIAJ / DC 9 V, At 4 Ω Load

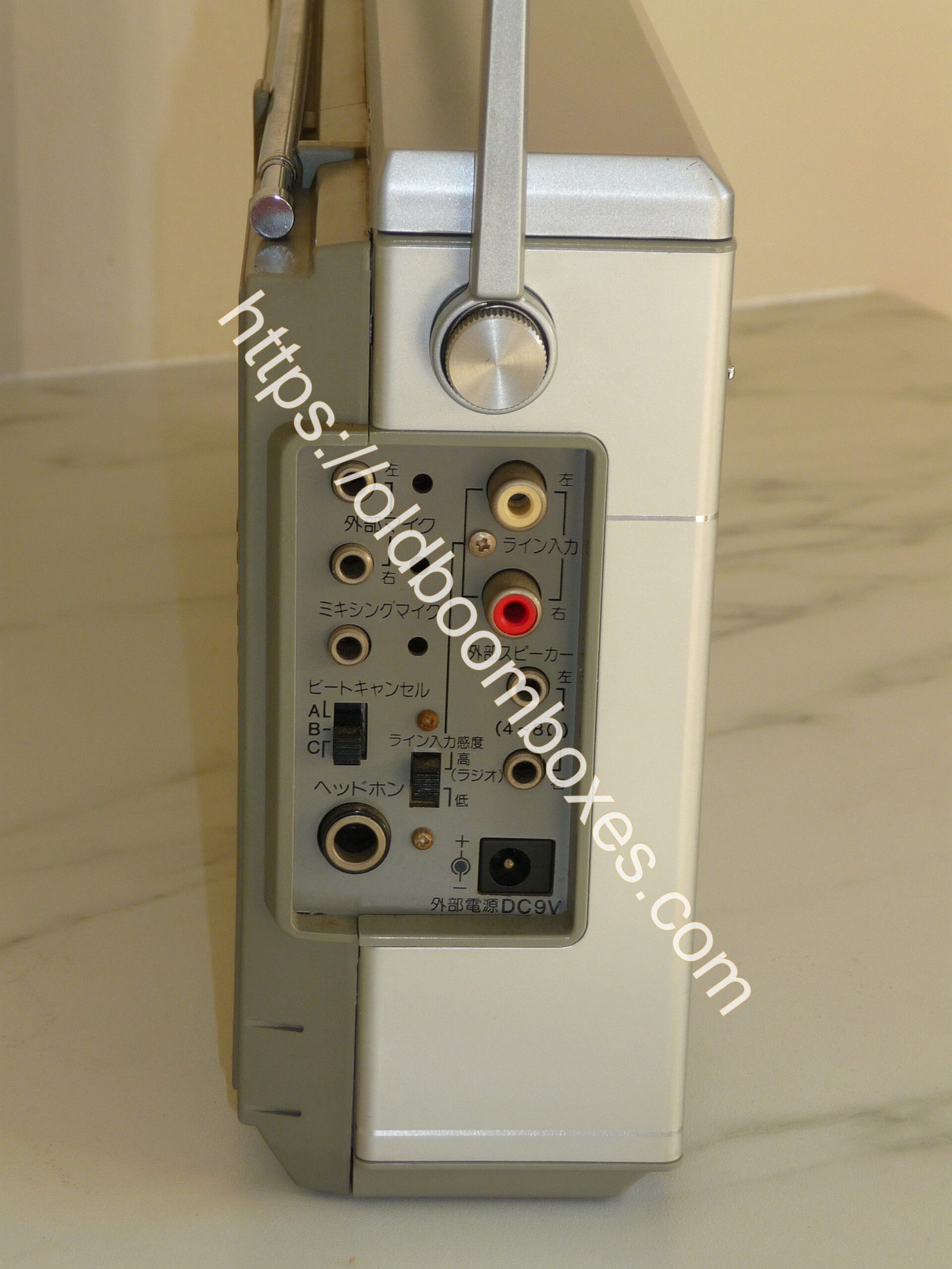

Input Terminals
External Microphone Terminals: × 2, Impedance 600 Ω, Mini Jack Ø3.5 mm
Mixing Microphone Terminal: × 1, Impedance 600 Ω, Mini Jack Ø3.5 mm
Line Input Terminals: × 2, Impedance 100 kΩ, Pin Jack
Output Terminals
External Speaker Terminals: × 2, Impedance 4 Ω, Mini Jack Ø3.5 mm
Stereo Headphone Terminal: × 1, Impedance 8–32 Ω, Standard Stereo Jack
Other Terminals

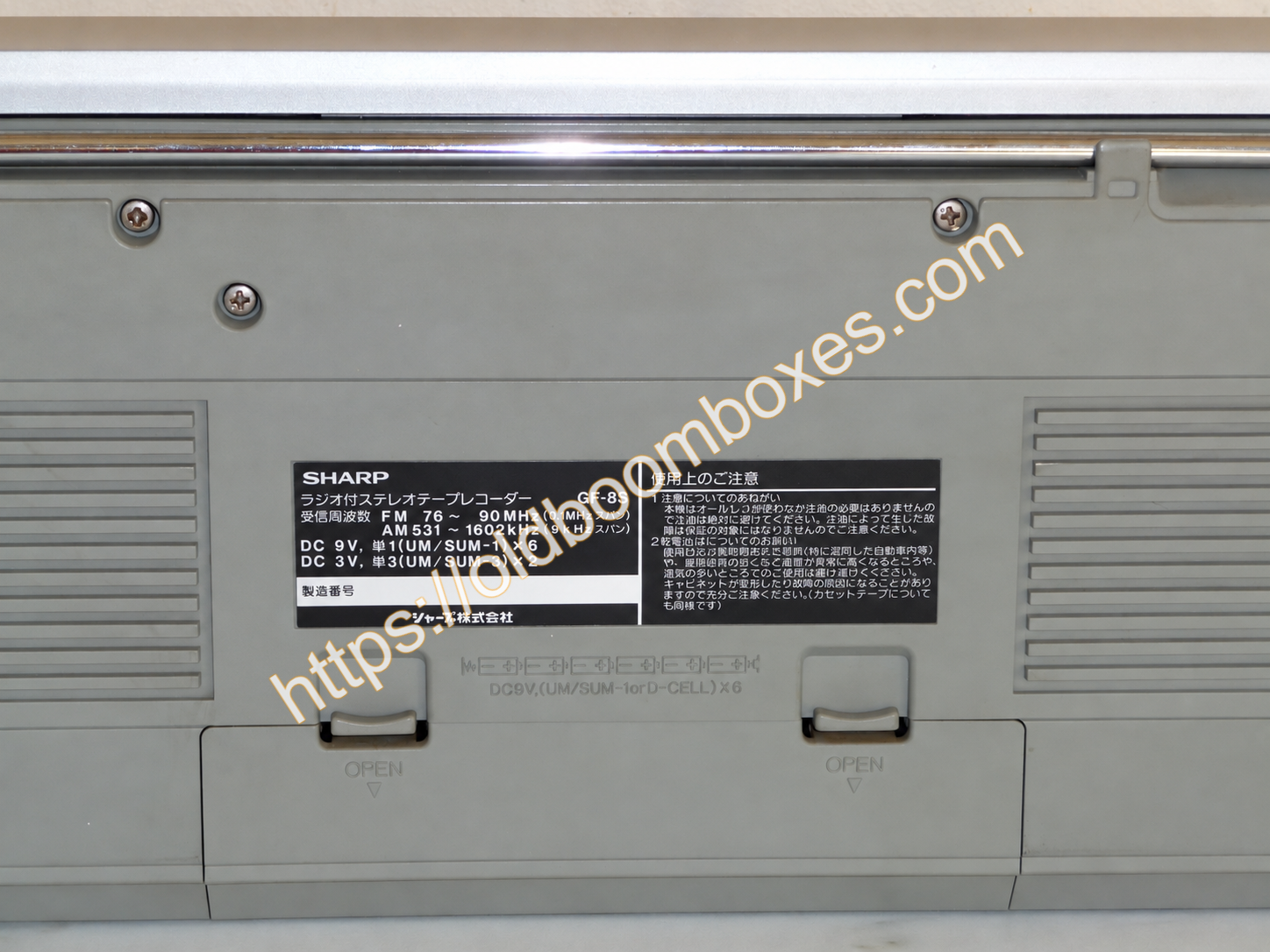

External Power Terminal: × 1, DC 9 V
Power Supply
DC 9 V: 6 × D-Size Batteries
DC 3 V: 2 × AA-Size Batteries For LSI
Battery Life: Approx. 13 Hours (Using EIAJ / SUM-1E Batteries)
Clock

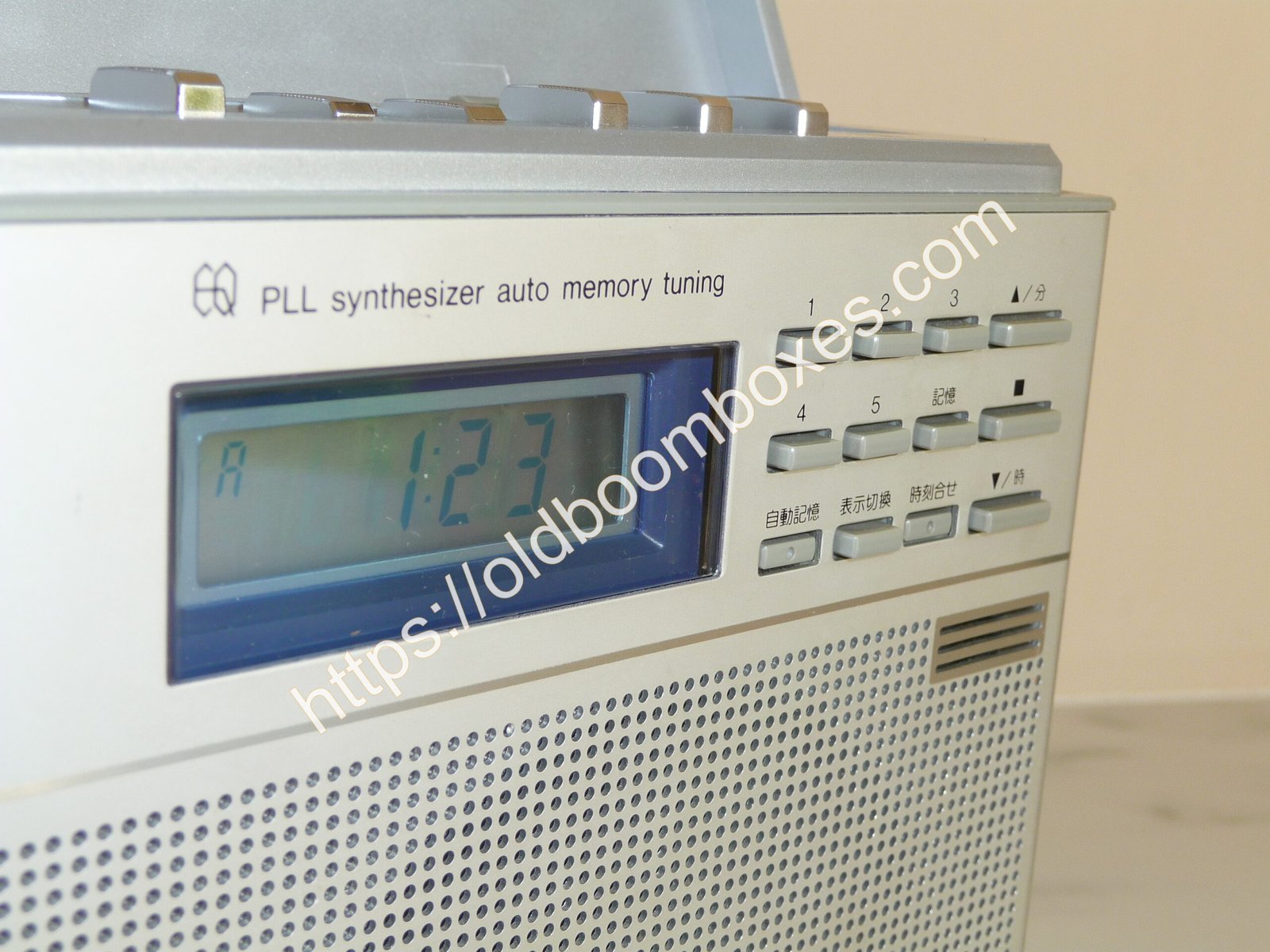

Type: Digital Clock With Liquid Crystal Display
Digital Display: Radio Preset Frequency And Time Display (12-Hour Format)
Clock Accuracy: Within ±15 Seconds Per Month At 25°C
LSI Battery Life: Approx. 1 Year (Using SUM-3E Batteries)
Dimensions: 396 (W) × 69.5 (D) × 165 (H) mm
Weight: 3.4 kg Including Batteries

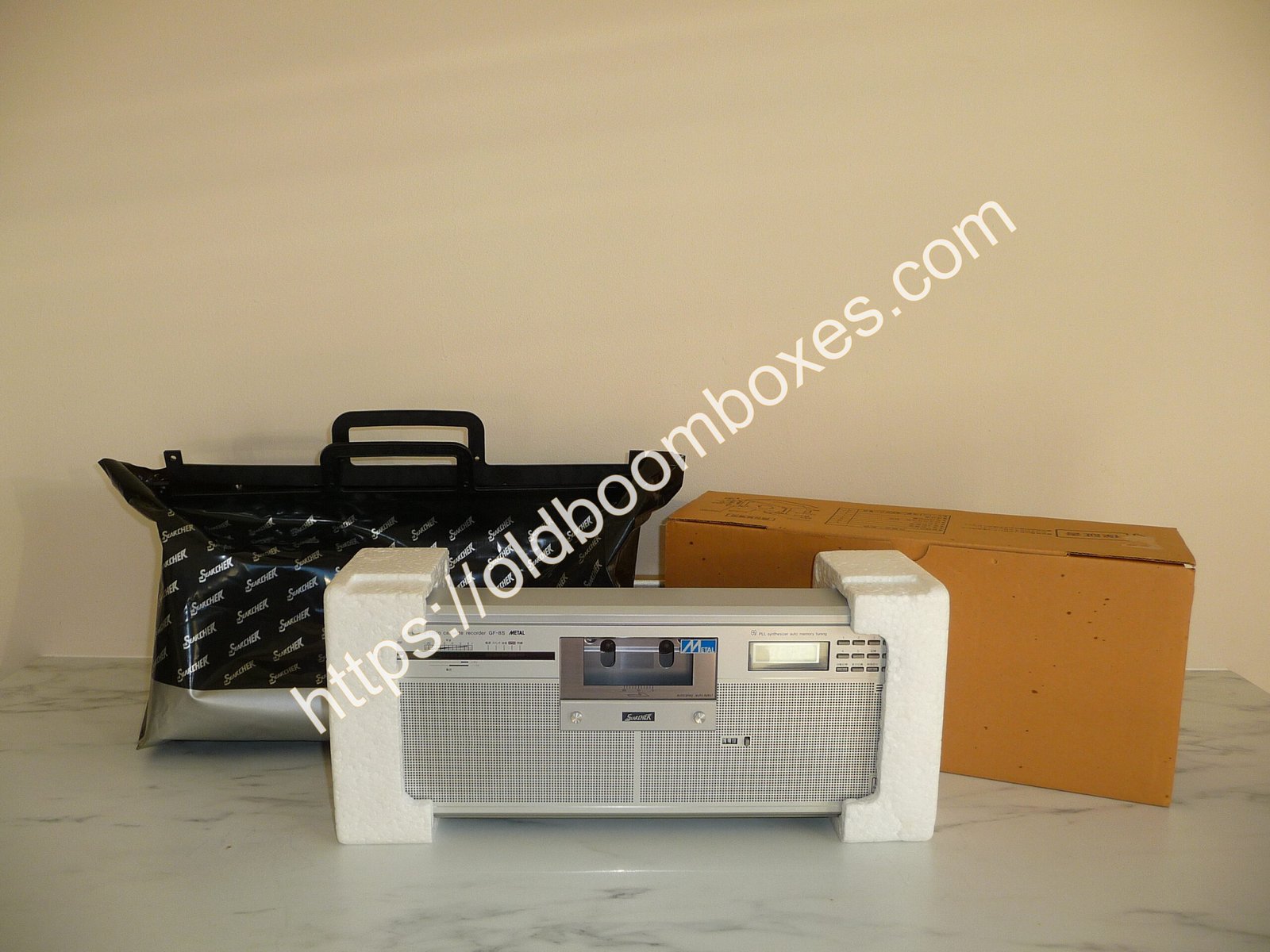

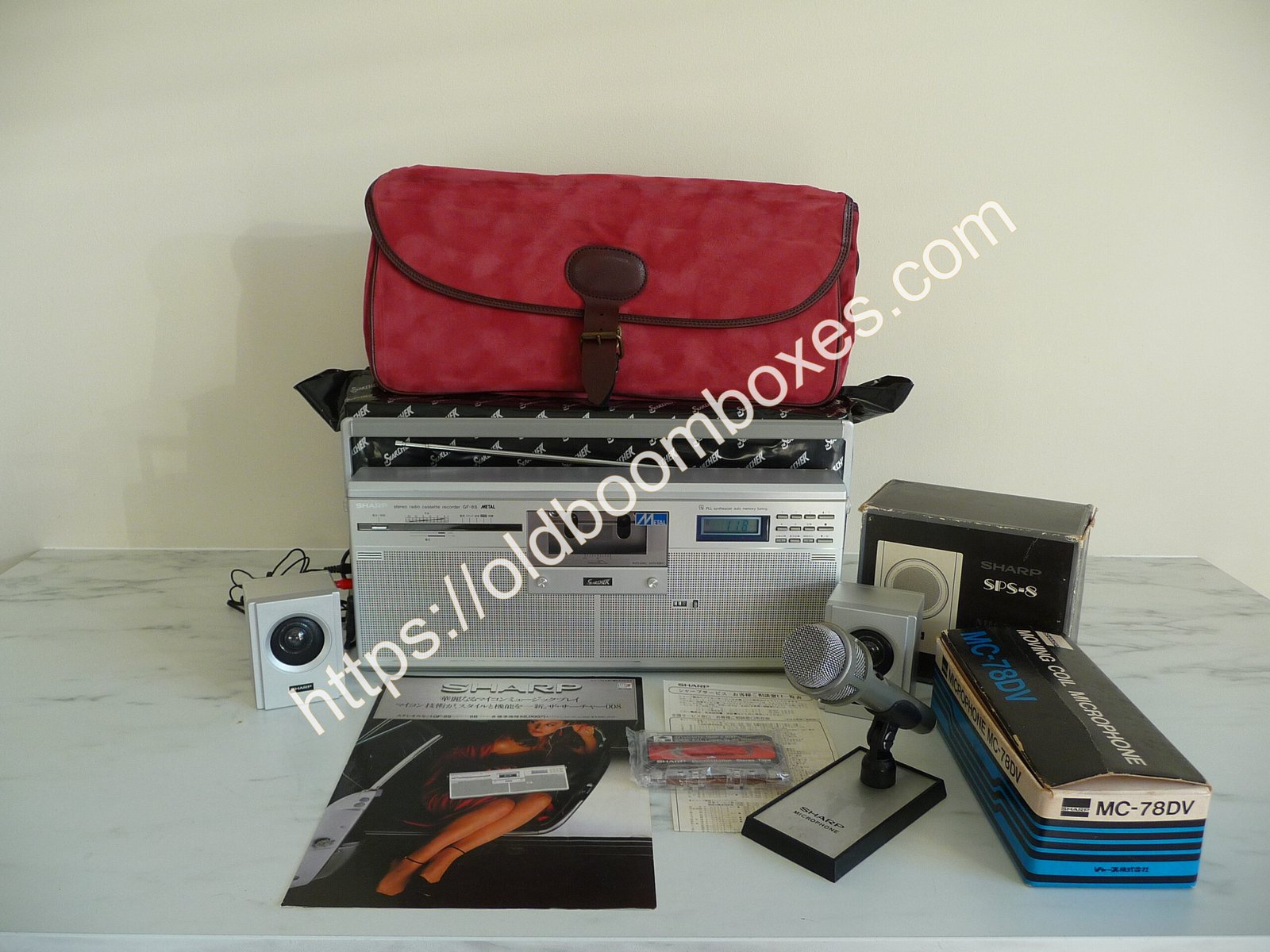

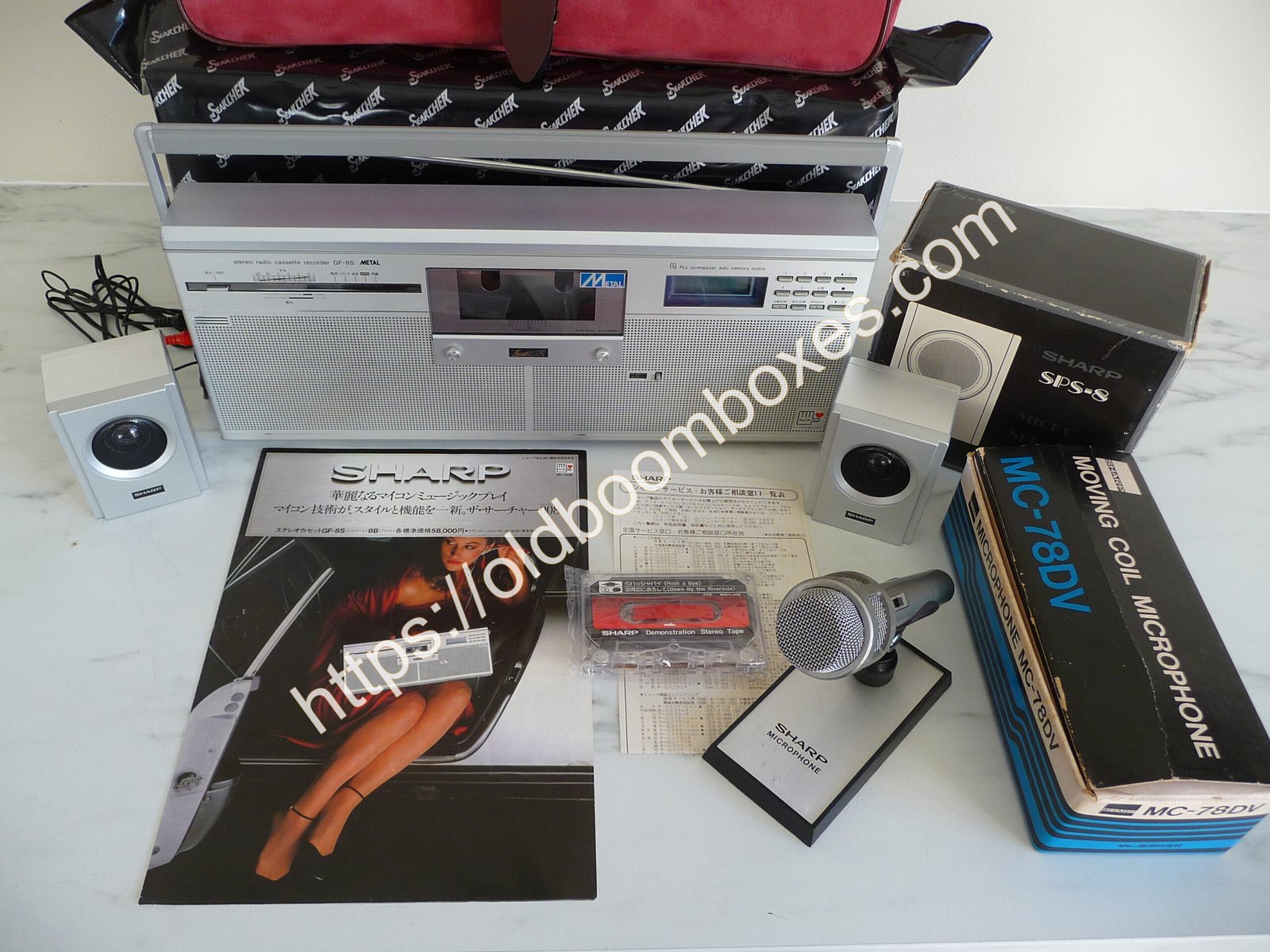

ACCESSORIES
Test Tape: × 1
D-Size Batteries: × 6
AA-Size Batteries: × 2
Eraser Plug: × 1
Broadcast Station Frequency Chart: × 1
Operating Instructions: × 1
Warranty Card: × 1
Service Consultation Office List: × 1
