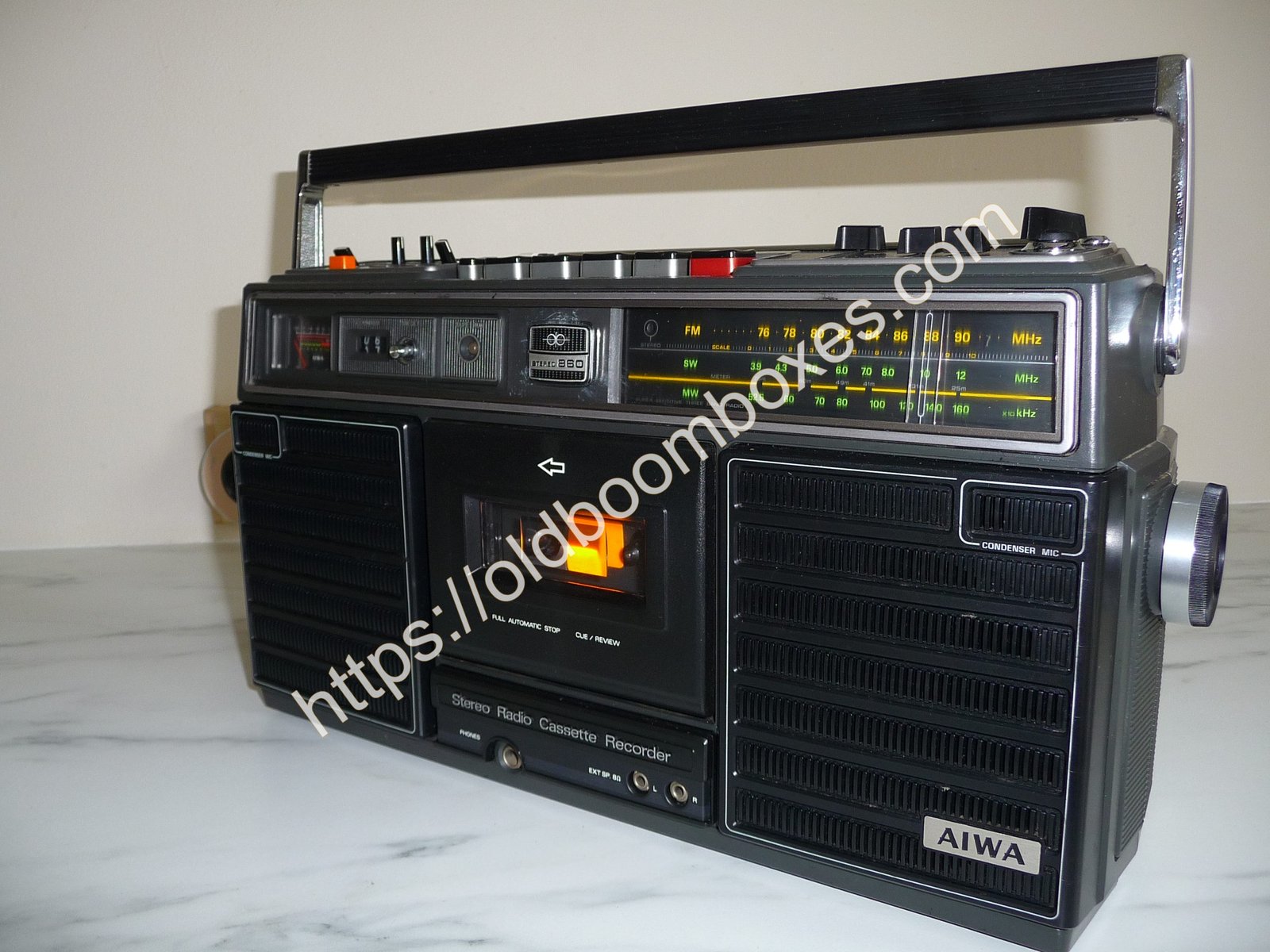

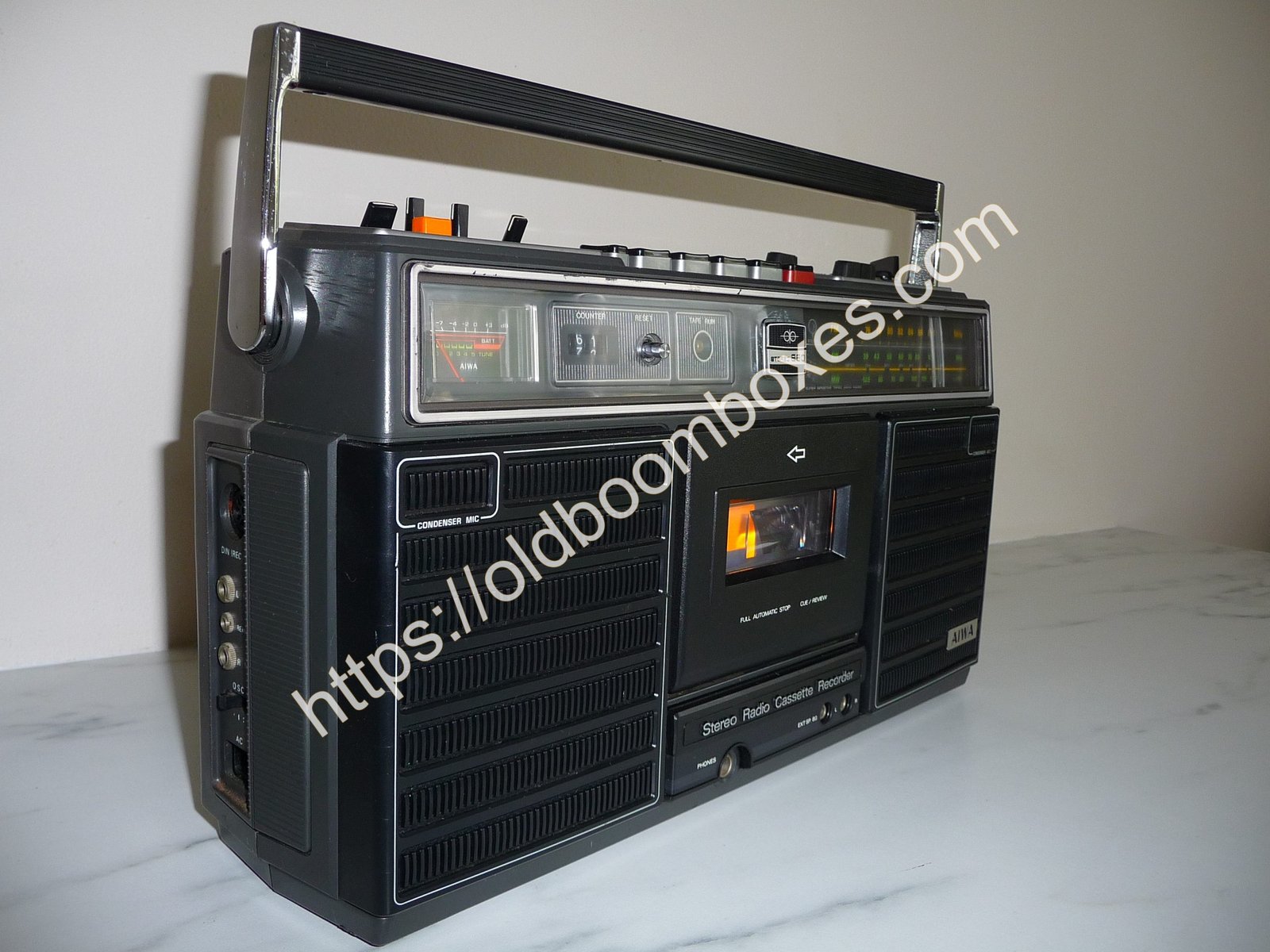

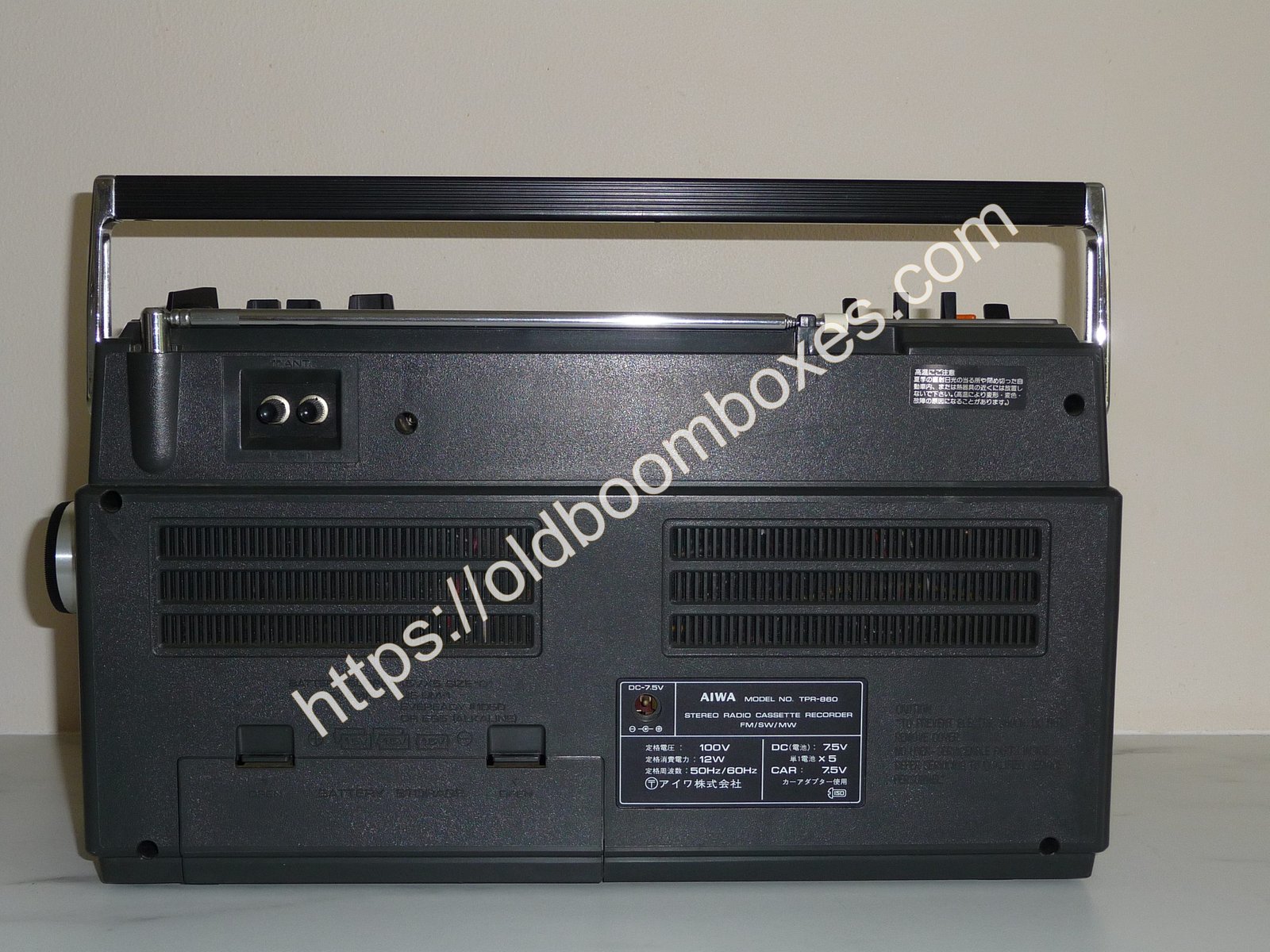

AIWA TPR-860 Stereo Radio Cassette Recorder
1 in stock
AIWA TPR-860
Future:
- Manufactured Date 1977 of March
- Dual Telescopic Antennas
- Music Search (AMS) Function

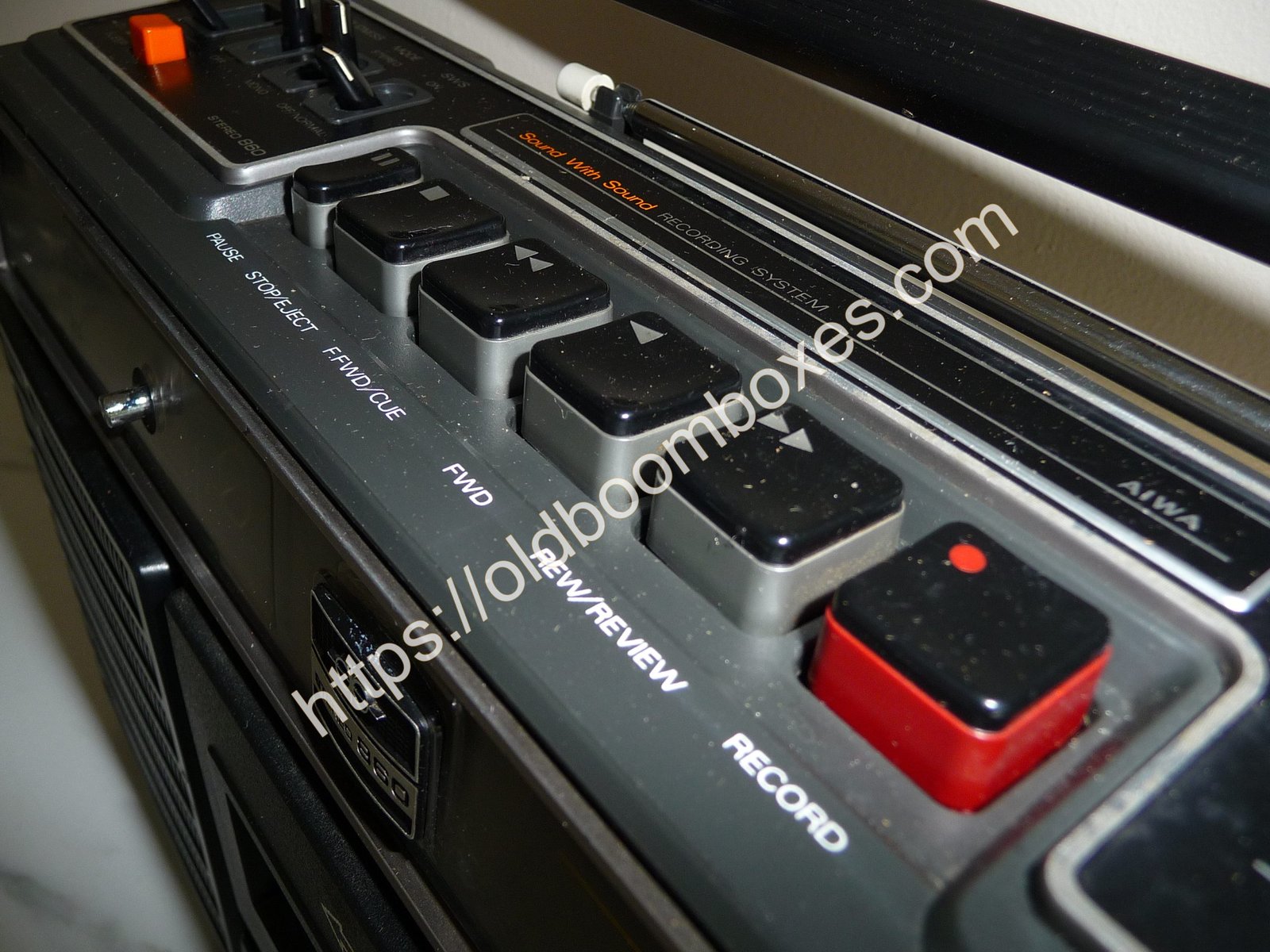

- One-Touch Recording
- LED Recording Level Meter
- Blue Woofer Cones
- Real Cone Tweeters
Available colors:
- Black
549.00€
1 in stock
The AIWA TPR-860 is a vintage portable stereo radio cassette recorder introduced during the golden age of Japanese audio equipment in the mid-1970s.
Combining a high-performance multi-band radio with a versatile stereo cassette deck.
The TPR-860 was designed for music enthusiasts who wanted quality sound, advanced recording capabilities, and true portability.
RADIO SECTION
Receiving Frequencies: FM: 76 ~ 90 MHz, SW: 39 ~ 12 MHz, MW: 525 ~ 1605 kHz
Antennas: FM/SW: Rod (Telescopic) Antenna, MW: Ferrite Bar Antenna, FM External Antenna Terminal
TAPE RECORDER SECTION
Track System: 4-Track, 2-Channel Stereo
Recording System: AC Bias
Erase System: AC Erase
Usable Tapes: C-30, C-60, C-90, (C-120)
Rewind Time: Approx. 60 Seconds (For C-60 Tape)
Frequency Response: 50 ~ 10,000 Hz
Wow & Flutter: 0.14 % (WRMS)
Signal-To-Noise Ratio: 50 dB
Microphone: Built-In Condenser Microphone
Semiconductors Used: IC × 5, Transistors × 25, Diodes × 14, LEDs × 2, Variable Capacitor × 1
Speakers: 100 mm (4-Inch) round, 8 Ω × 2
Practical Output Power: 3000 mW (1500 mW + 1500 mW) (EIAJ / DC)
Input Terminals: MIC: 3.5 mm Mini Jack × 2, REC DIN Terminal
Output Terminals: EXT.SP: 3.5 mm Mini Jack × 2, DIN (PB) Terminal
Headphones: 6.3 mm Standard Jack

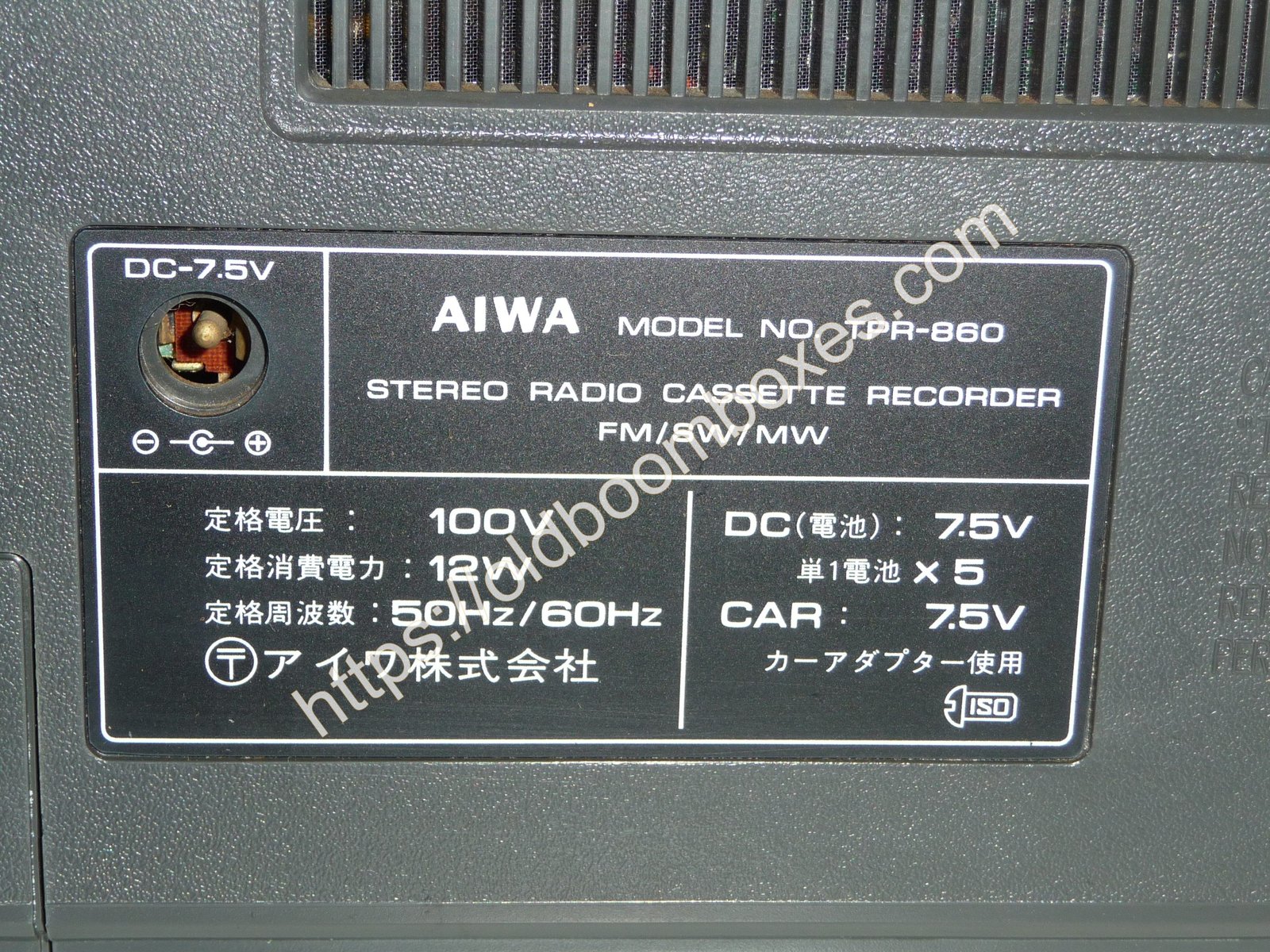

Power Supply: DC 7.5 V (Size D Batteries × 5), AC 100 V, 50/60 Hz
Battery/AC Adapter Compatible
Power Consumption: 12 W (AC Operation)
Dimensions: 378 (W) × 246 (H) × 100 (D) mm
Weight: 4.0 kg (Including Batteries)
ACCESSORIES
AC Power Cord × 1
Cassette Tape × 1
Size D Batteries × 5
Erase Plugs × 2
Cleaning Stick × 1
