SHARP RD-438J Radio Cassette Recorder
1 in stock
SHARP RD-438J
Future:
- Manufactured Date 1971 of October

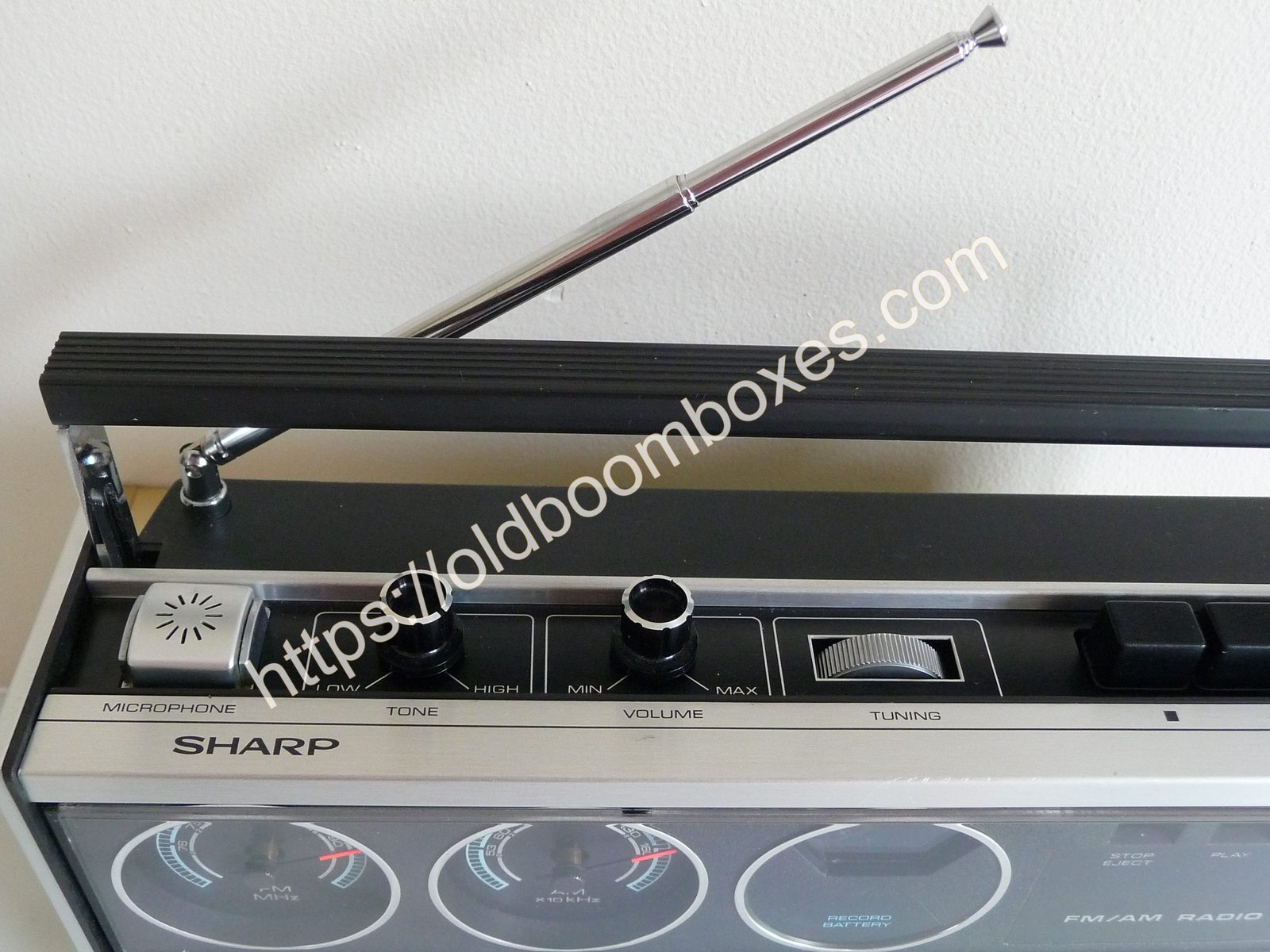

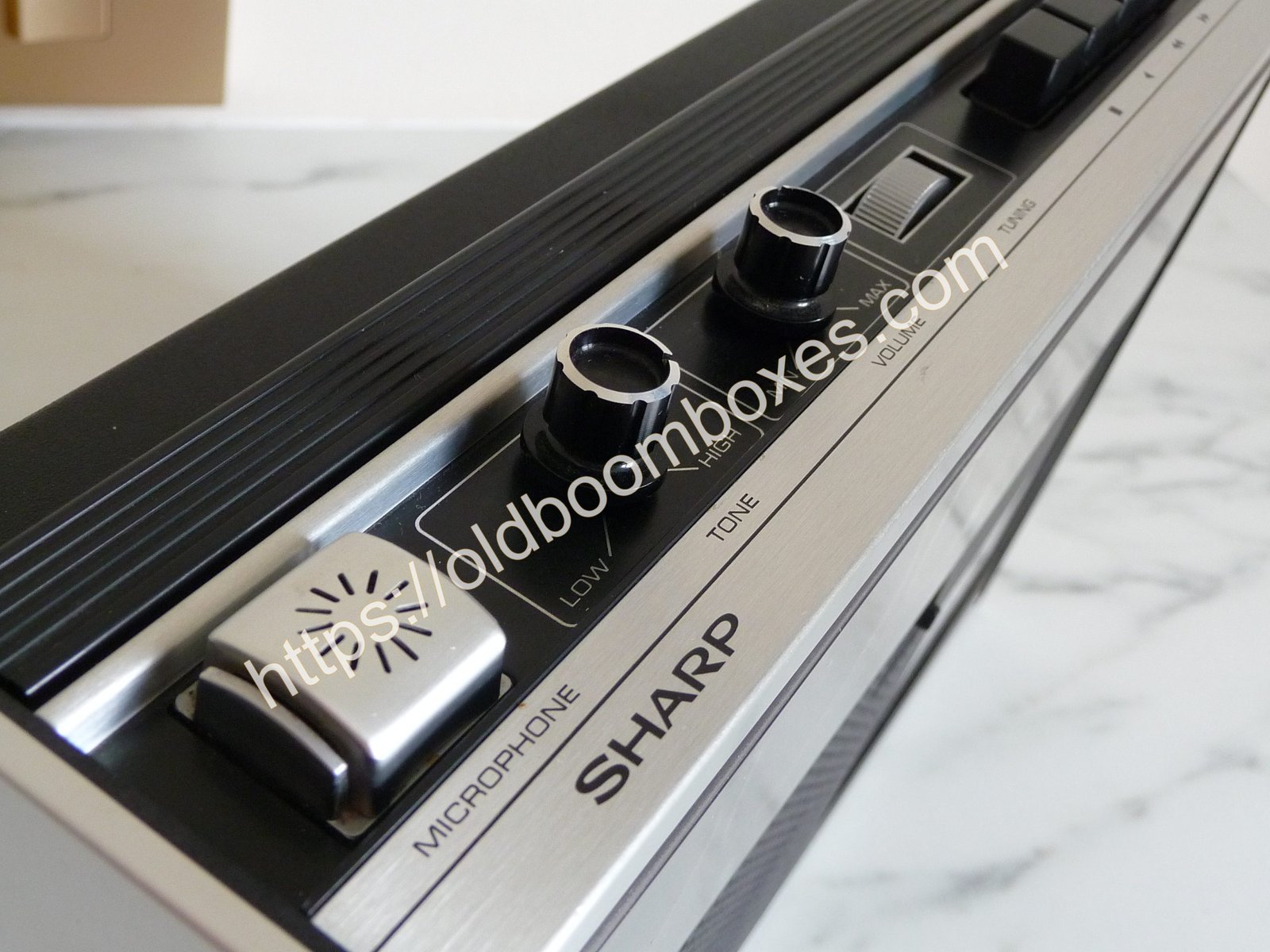

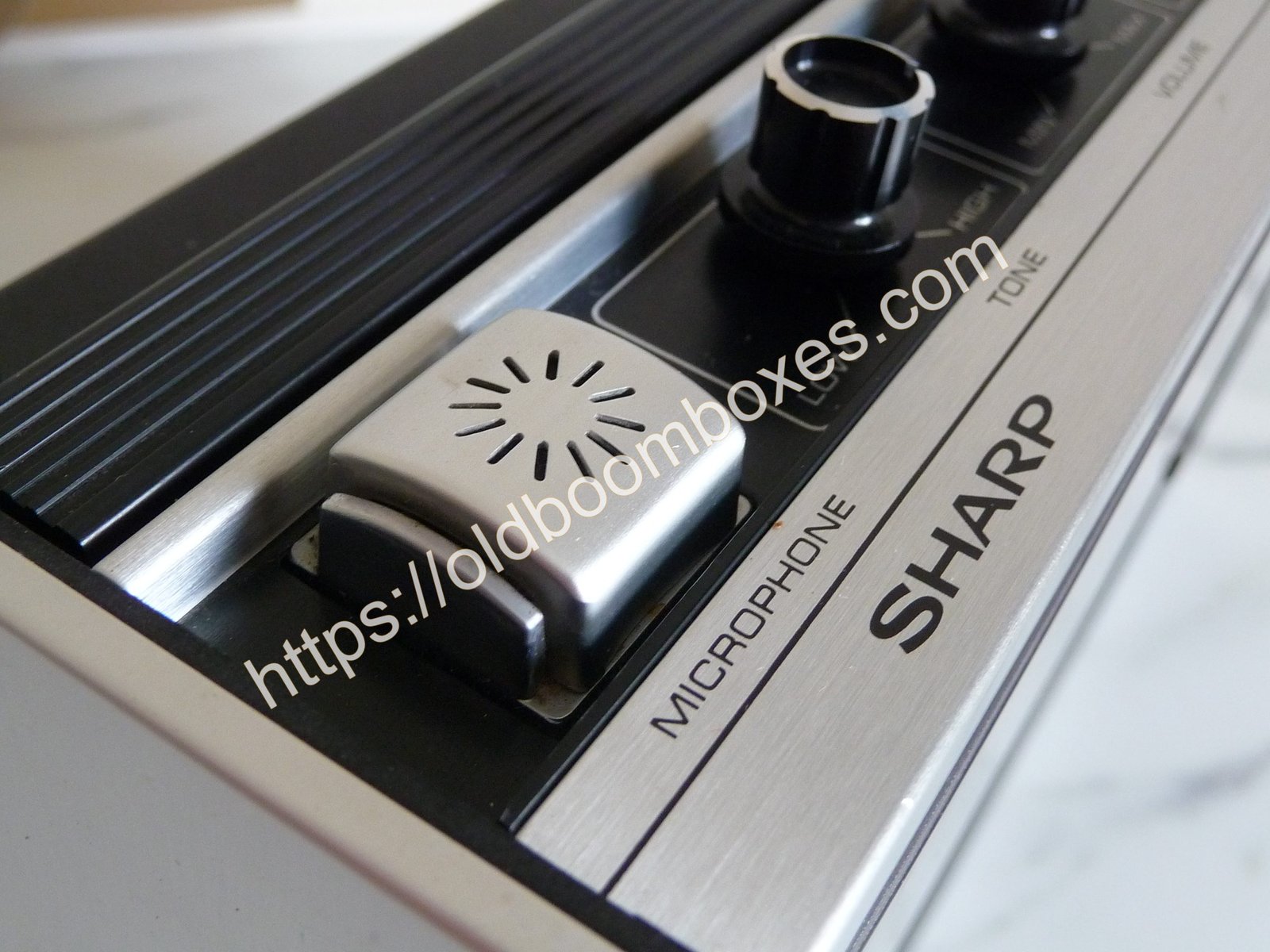

- Built-in pro-grade condenser microphone

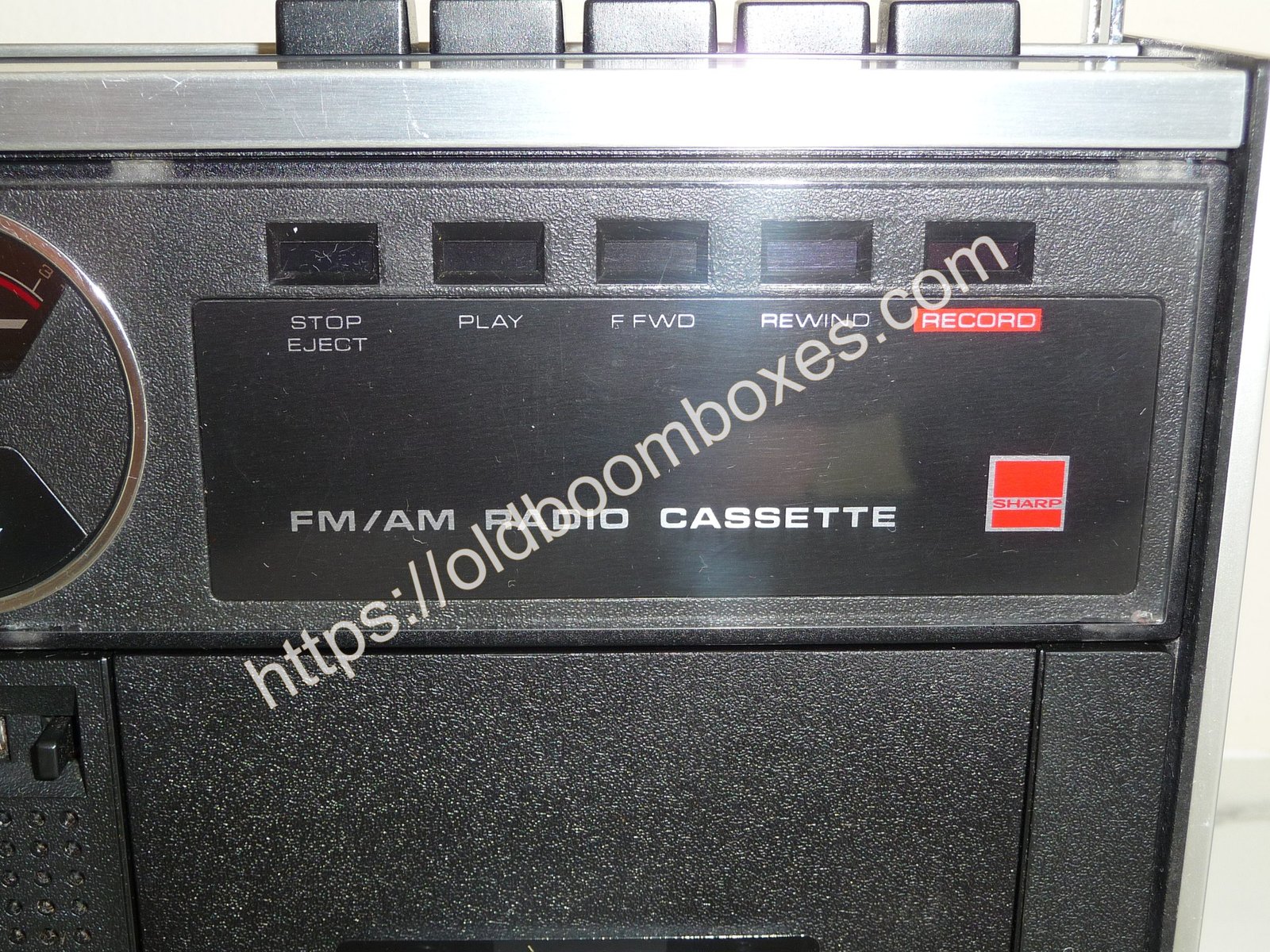

- Auto-stop mechanism that automatically stops when the tape ends
- Fresh/innovative design aimed at young users

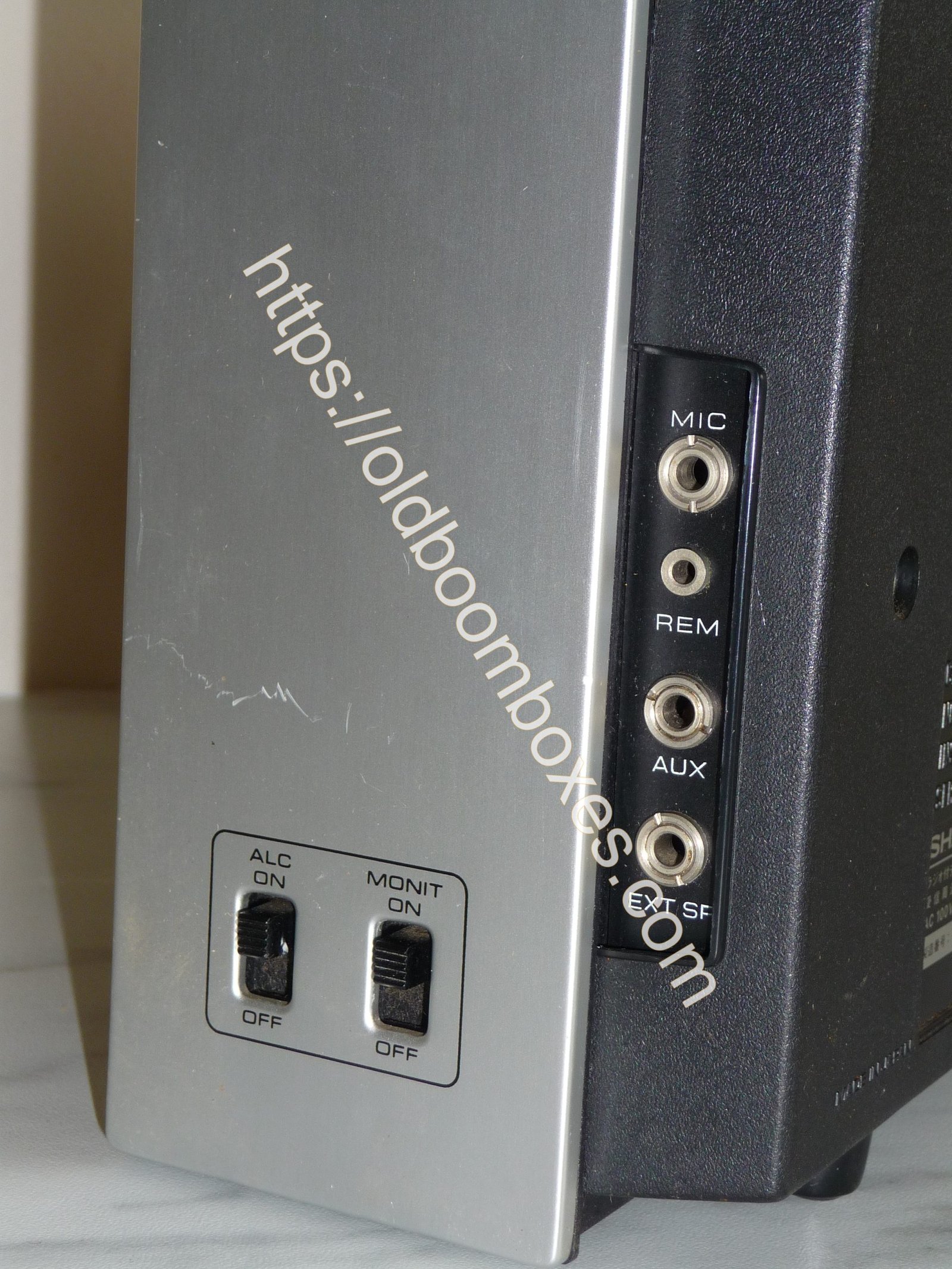

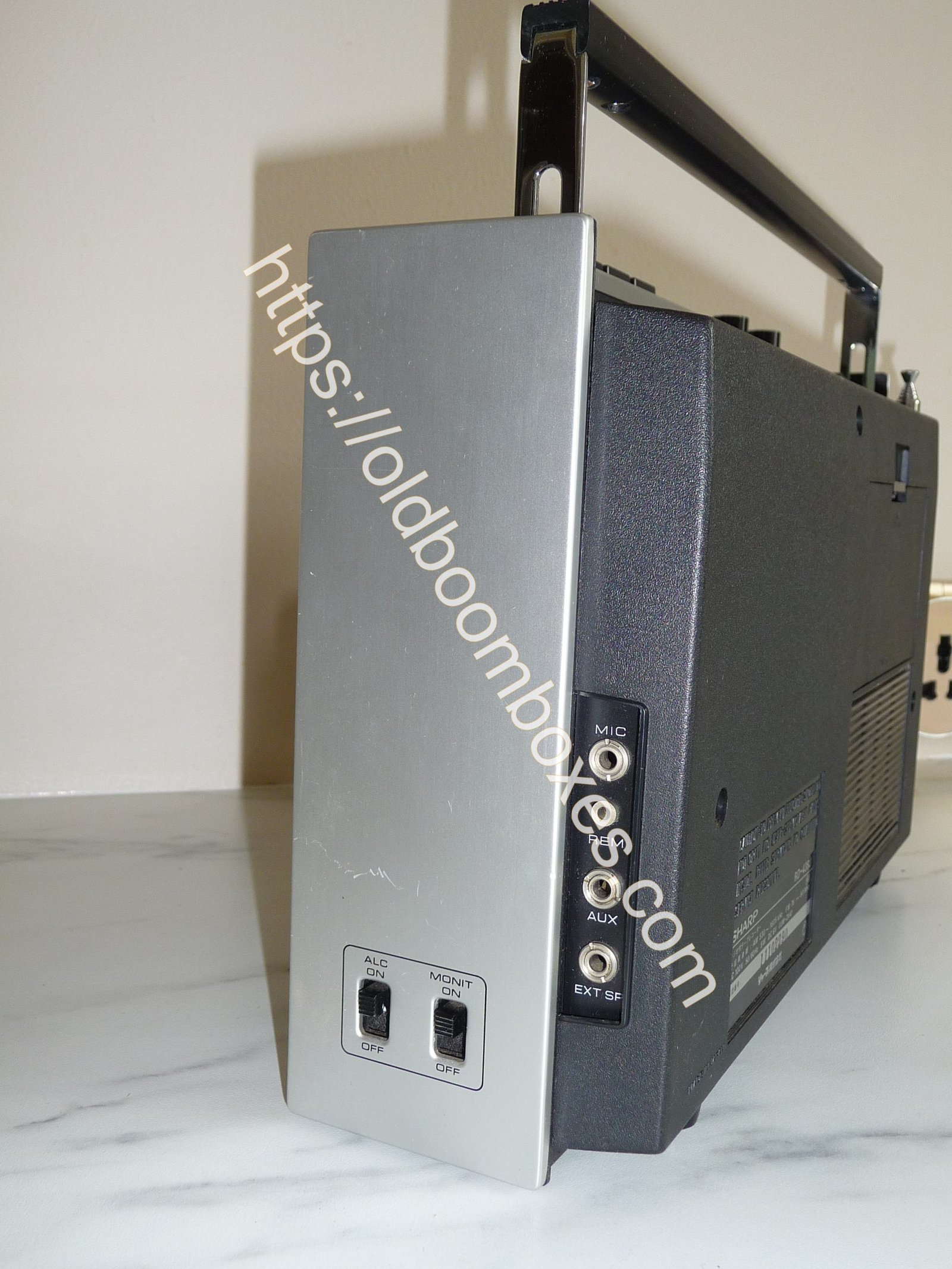

- Equipped with ALC switch and monitor switch, effective during recording
- A generous maximum output of 2.2 W
Available colors:
- Black
529.00€
1 in stock

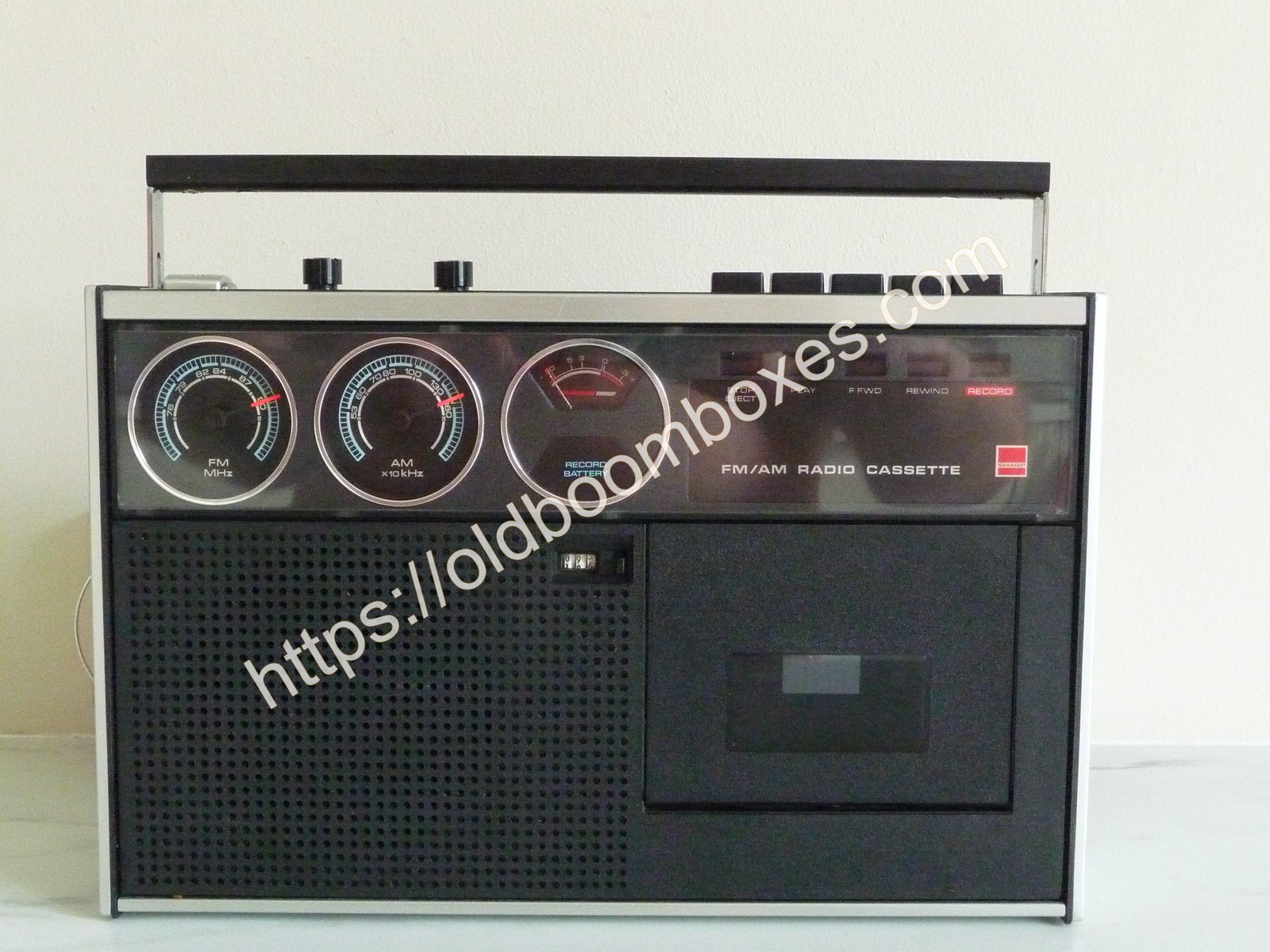

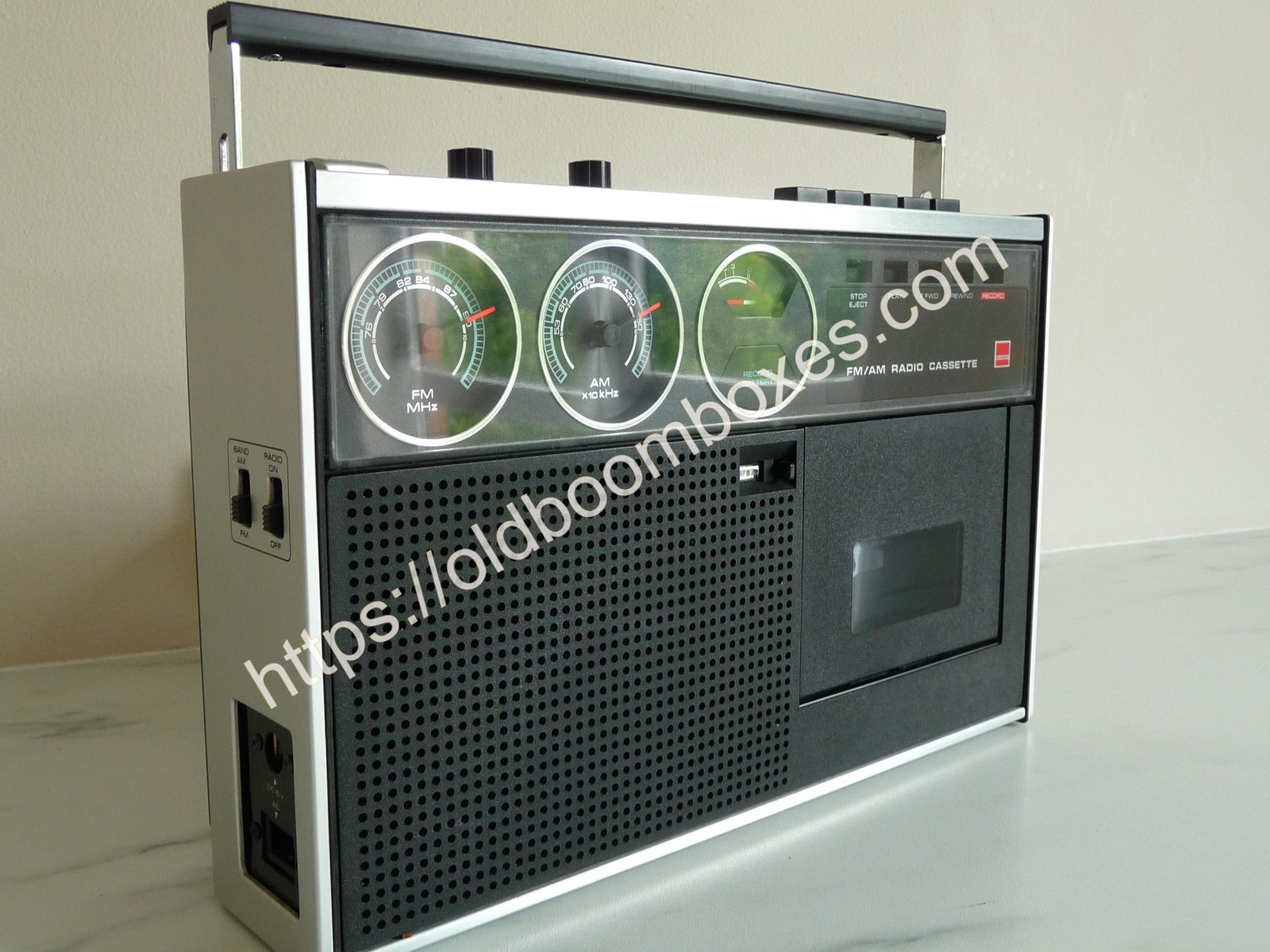

The Sharp RD-438J is a compact portable FM/AM radio cassette recorder designed for the Japanese domestic market in the early 1970s. It combines a high-sensitivity transistor radio with a single-cassette recorder, making it suitable for music playback, off-air recording, and voice recording. The “J” suffix denotes the Japanese version, which typically features the Japanese FM band (76–90 MHz) and operates from 100 V AC or batteries.

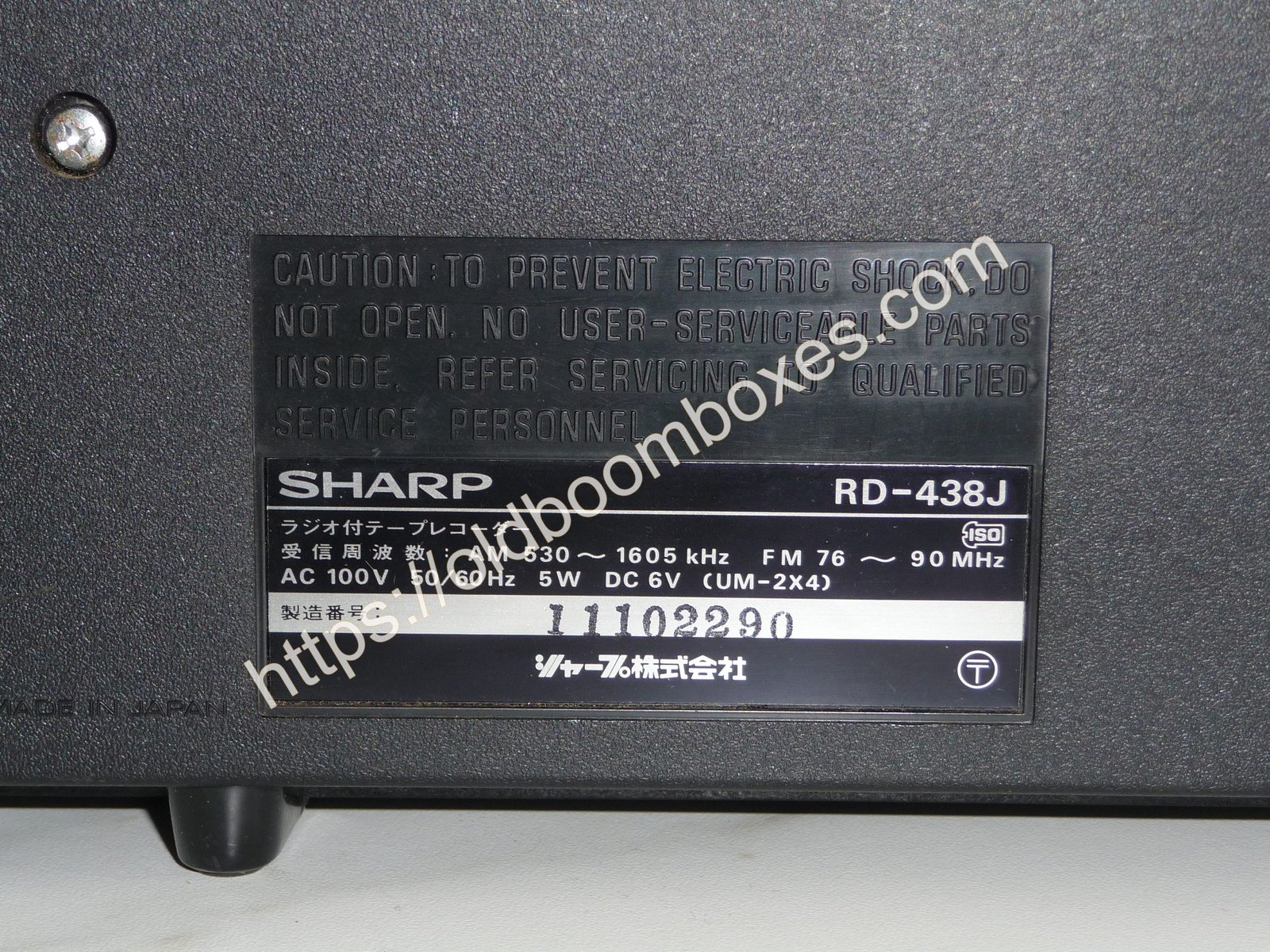

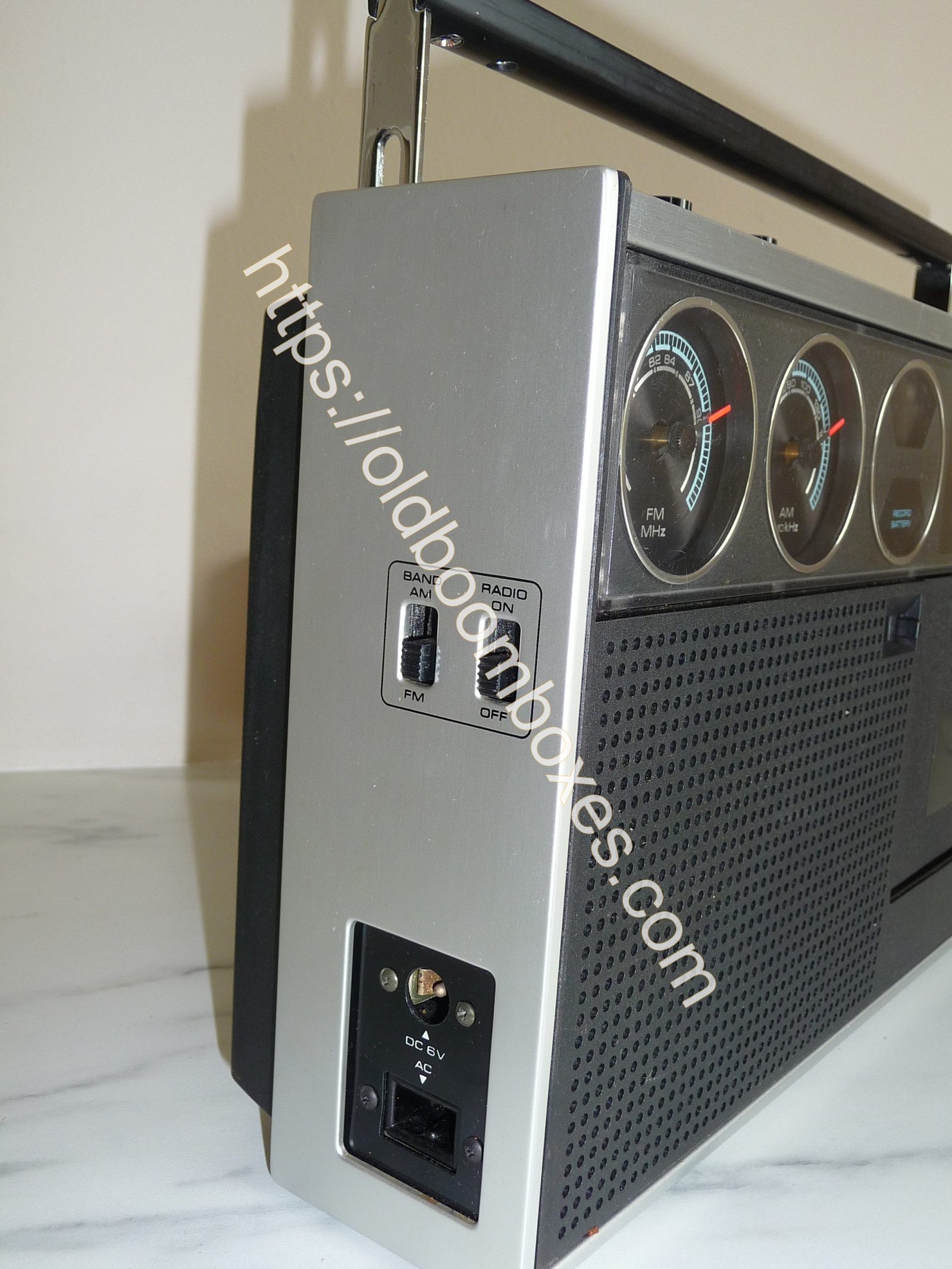

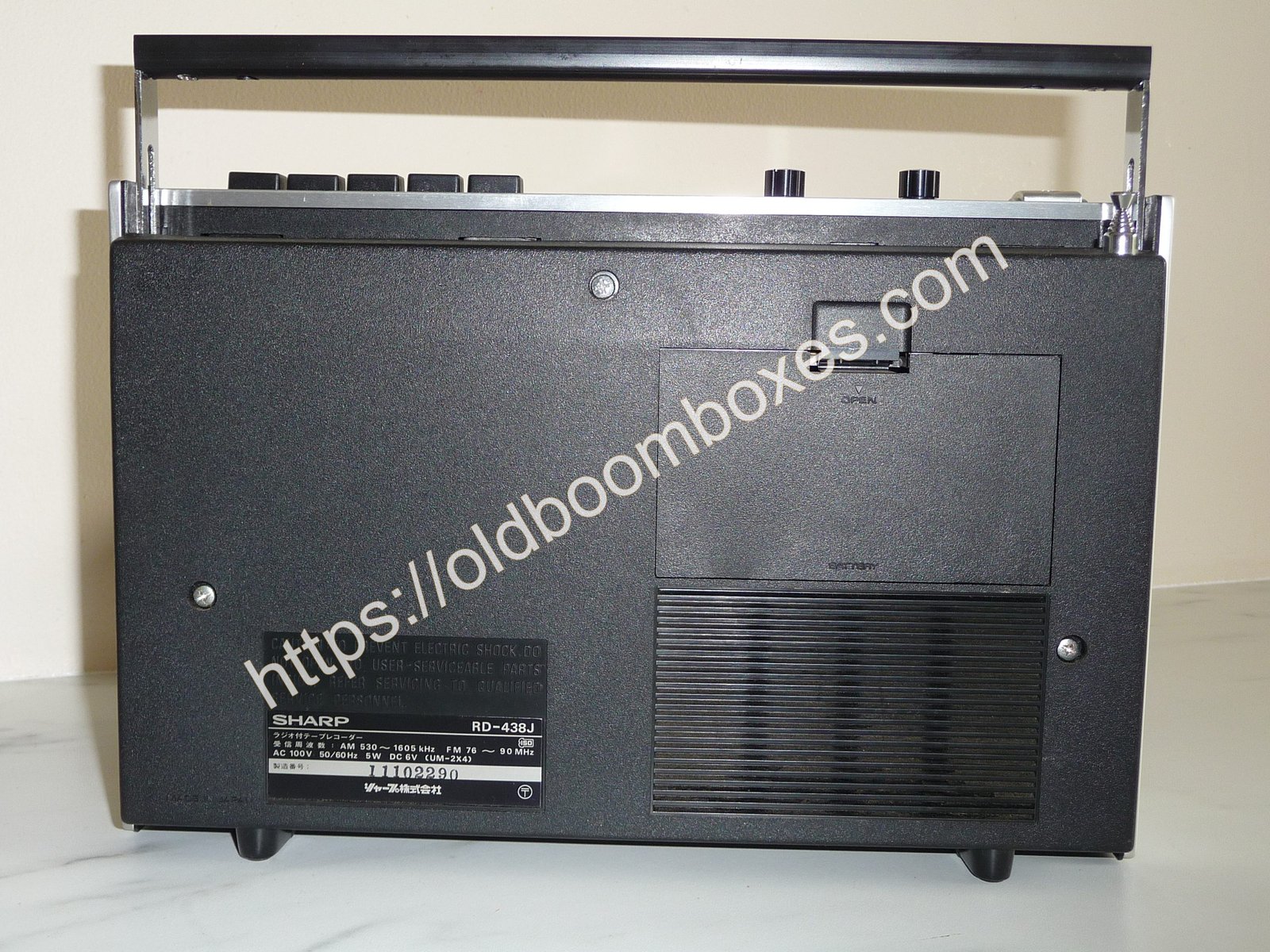

Power: AC 100V 50/60Hz, DC 6V (UM-2 × 4), DC 12V Car Battery (With Adapter)

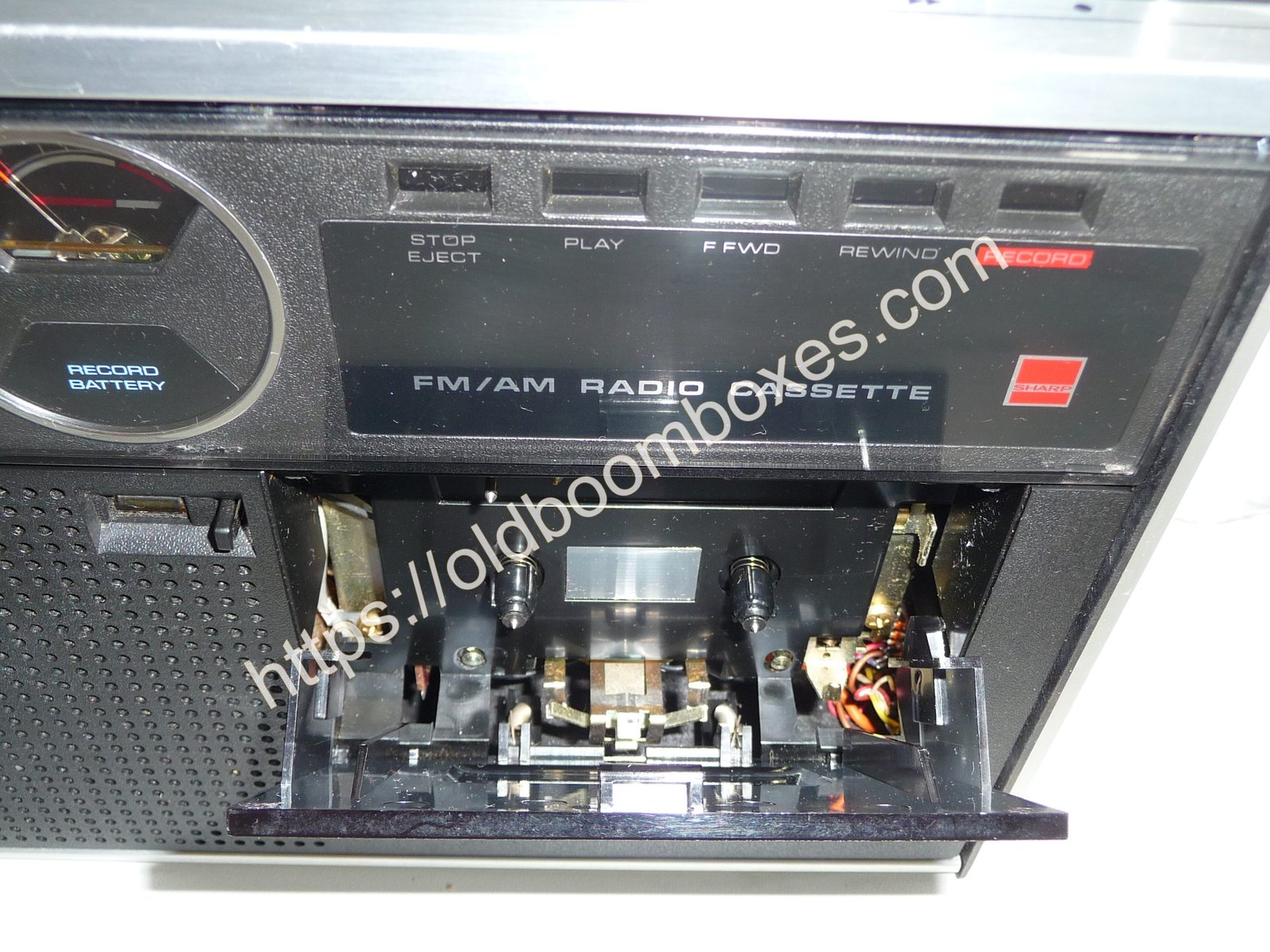

RECORDER SECTION
Type: 2-Track Mono/HybrId Cassette Tape Recorder
Tape Used: Full-Size Type Compact Cassette Tape
Tape Speed: 4.8 Cm/Sec
Recording/Playback Time: 30 Min (With C-30 Tape Or Equivalent), 60 Min (With C-60 Tape Or Equivalent), 90 Min (With C-90 Tape Or Equivalent)
Fast Wind Time: 90 Sec (With C-60 Tape Or Equivalent)
Rewind Time: 90 Sec (With C-60 Tape Or Equivalent)
Recording Method: AC Bias: 49 Khz ± 3 Khz
Erase Method: DC Erase Head
Frequency Response: 40 – 8,000 Hz
S/N Ratio: 44 Db Or More
Wow & Flutter: 0.2% W.R.M.S.
Input Jacks: Microphone (200 Ω) × 1
AUX (820 KΩ) × 1
Remote Control × 1
AC Power Socket AC 100V × 1
DC Power Jack DC 6V × 1
Output Jacks: External Speaker Terminal 8 Ω × 1
RADIO SECTION

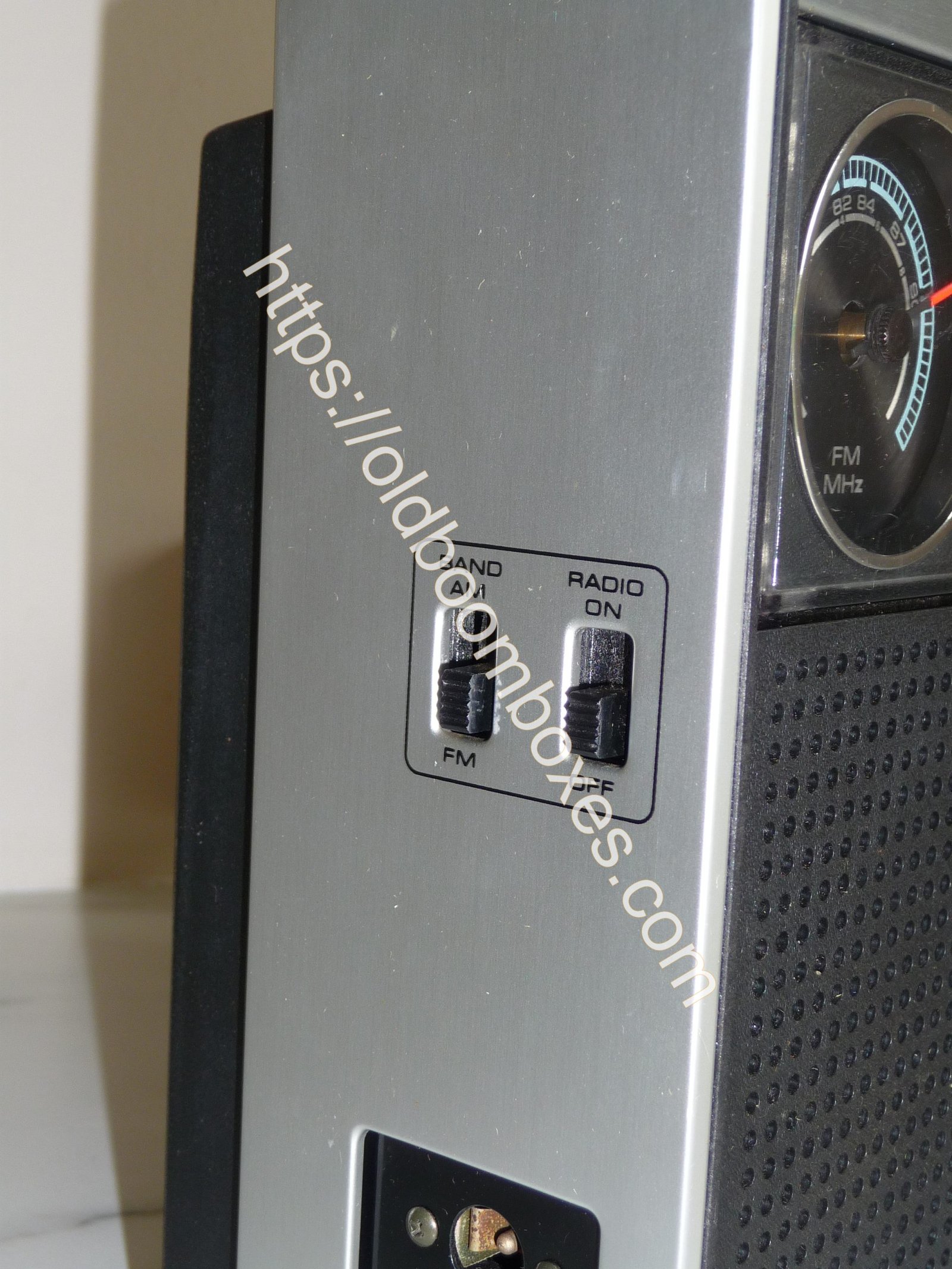

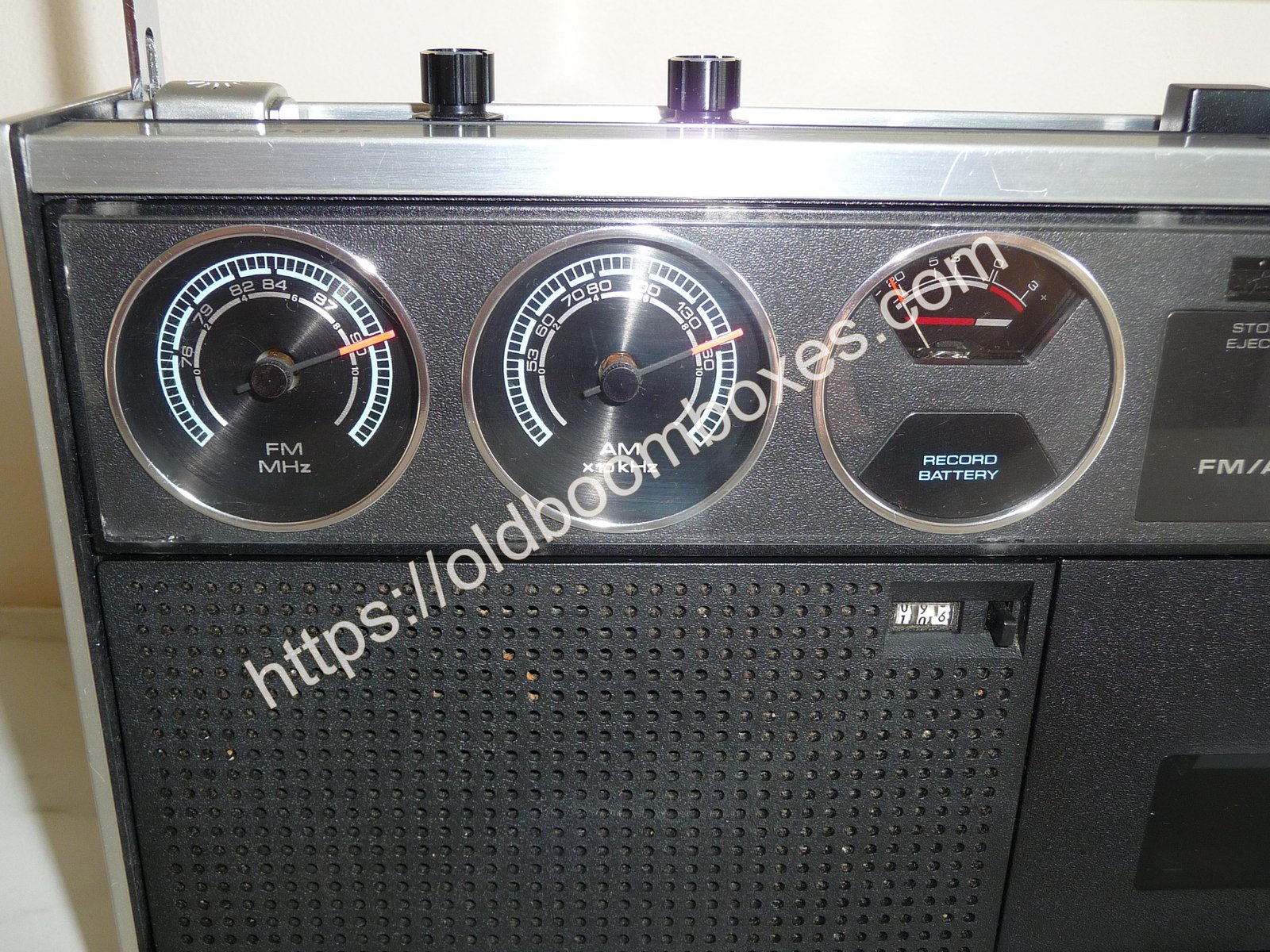

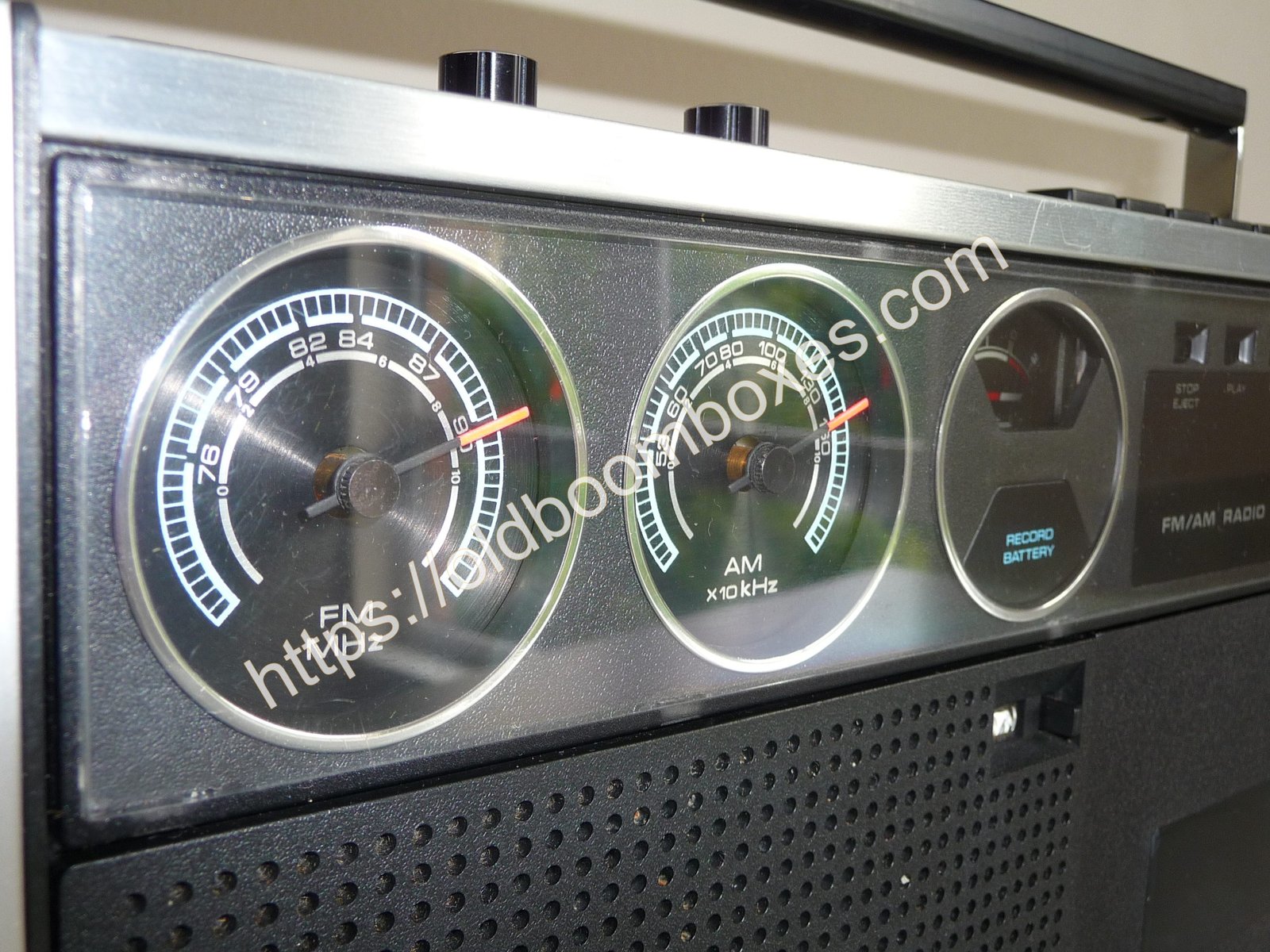

Reception Frequency Range: AM 530 ~ 1,605 Khz, FM 76 – 90 Mhz
Intermediate Frequency: AM 455 Khz, FM 10.7 Mhz
Selectivity: AM 60 ~ 3,500 Hz, FM 60 ~ 7,000 Hz
General / Usage:
Speaker: 10 Cm P.D.S (8 Ω)
Output: 2.2 W (Maximum Output)
Dimensions: 293 (W) × 84 (D) × 188 (H) Mm
Weight: 3.0 Kg (Excluding Batteries)
