Sony CFM-22
SONY CFM-22 FM/AM Radio Cassette Recorder
Availability:
1 in stock
SONY CFM-22
BRAND NEW
FUTURES:
- Manufactured Date: 1980 of January
- AM/FM Radio Reception
- Built-In Cassette Recorder/Player
- One-touch recording
- Built-in condenser microphone
- External microphone input
- Earphone output jack
- Automatic recording level control (ALC)
- Cue and Review tape search
- Pause control
- Automatic stop mechanism
- Telescopic FM antenna
- Silver
699.00€
1 in stock

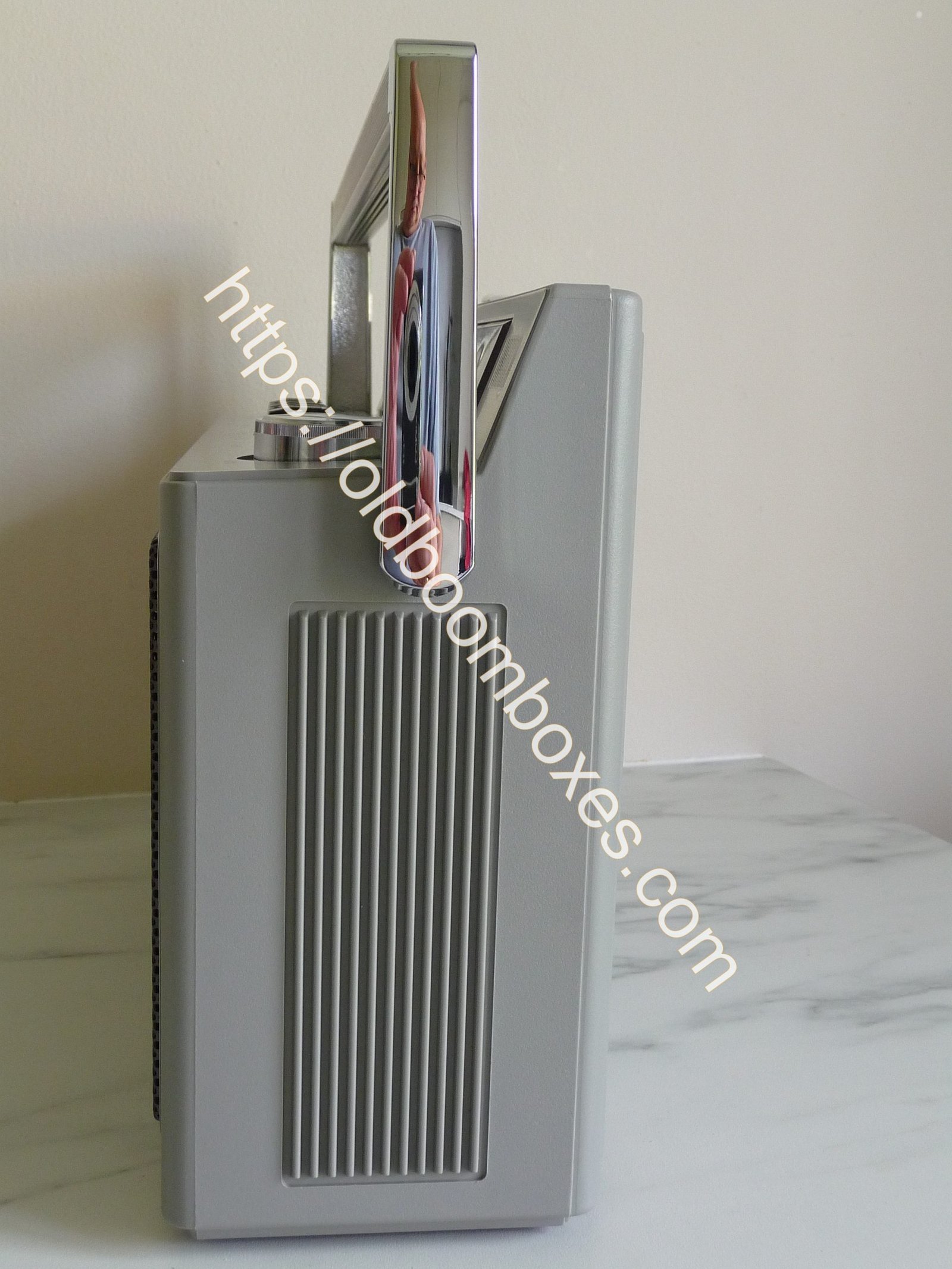

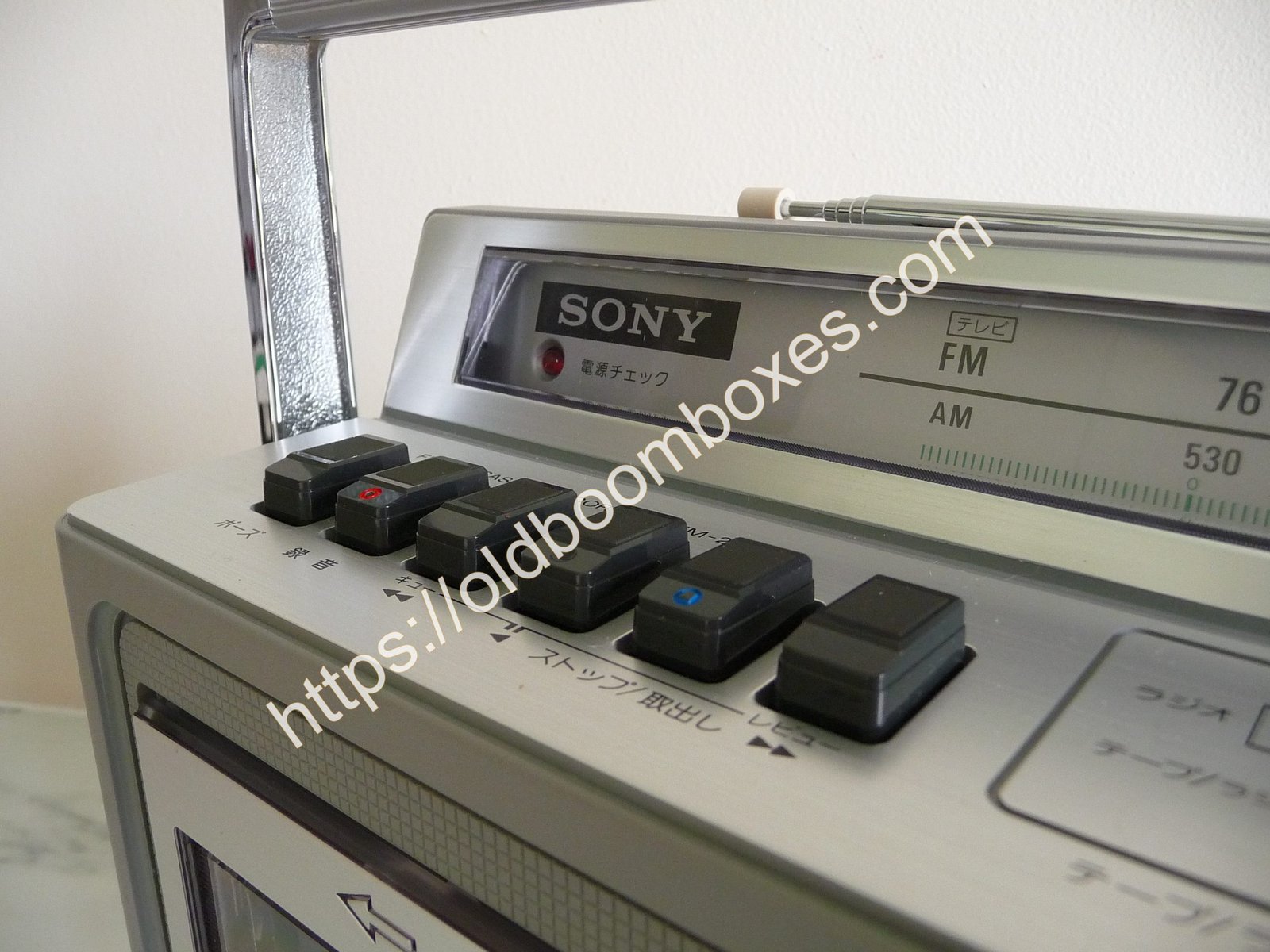

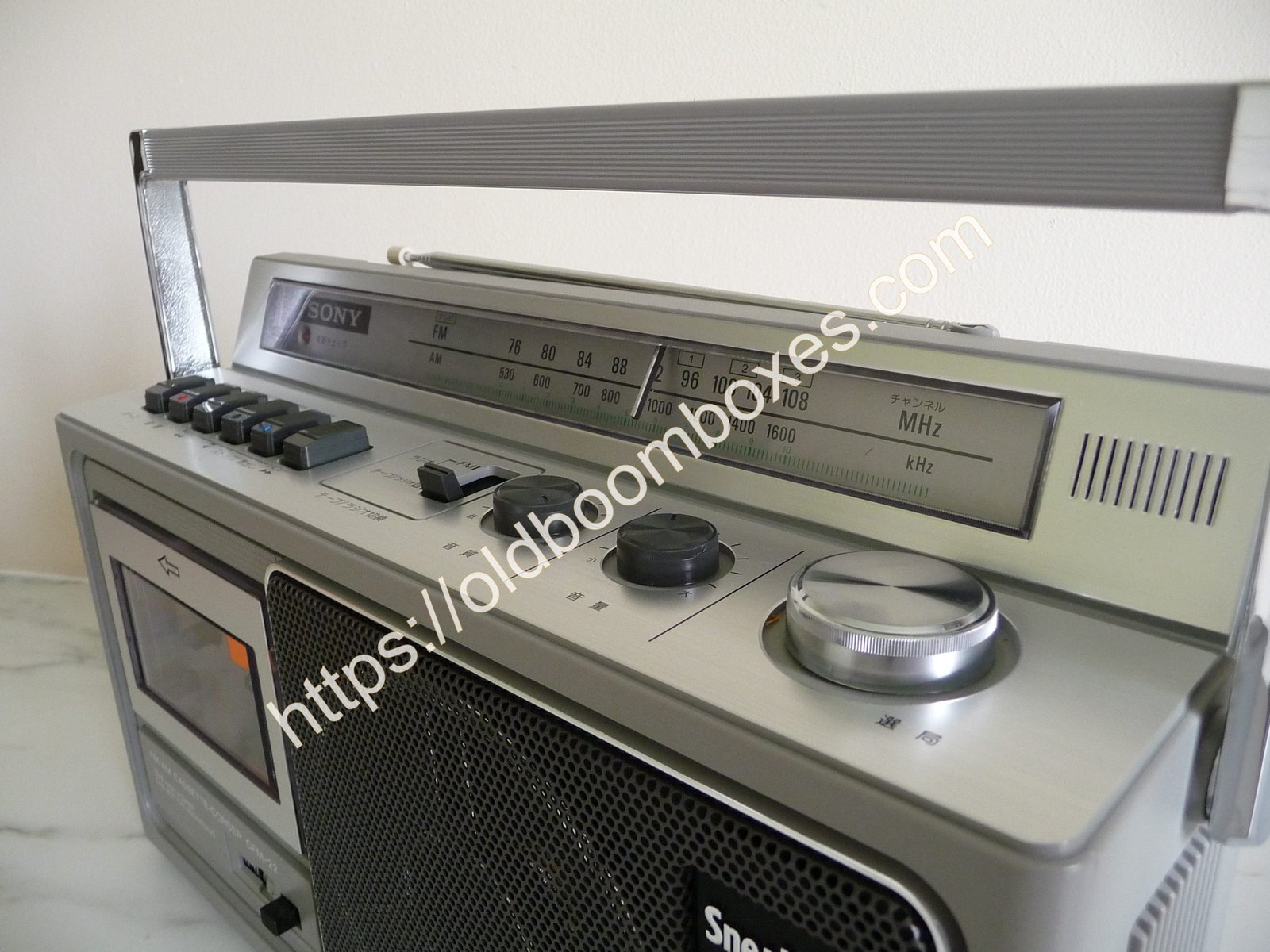

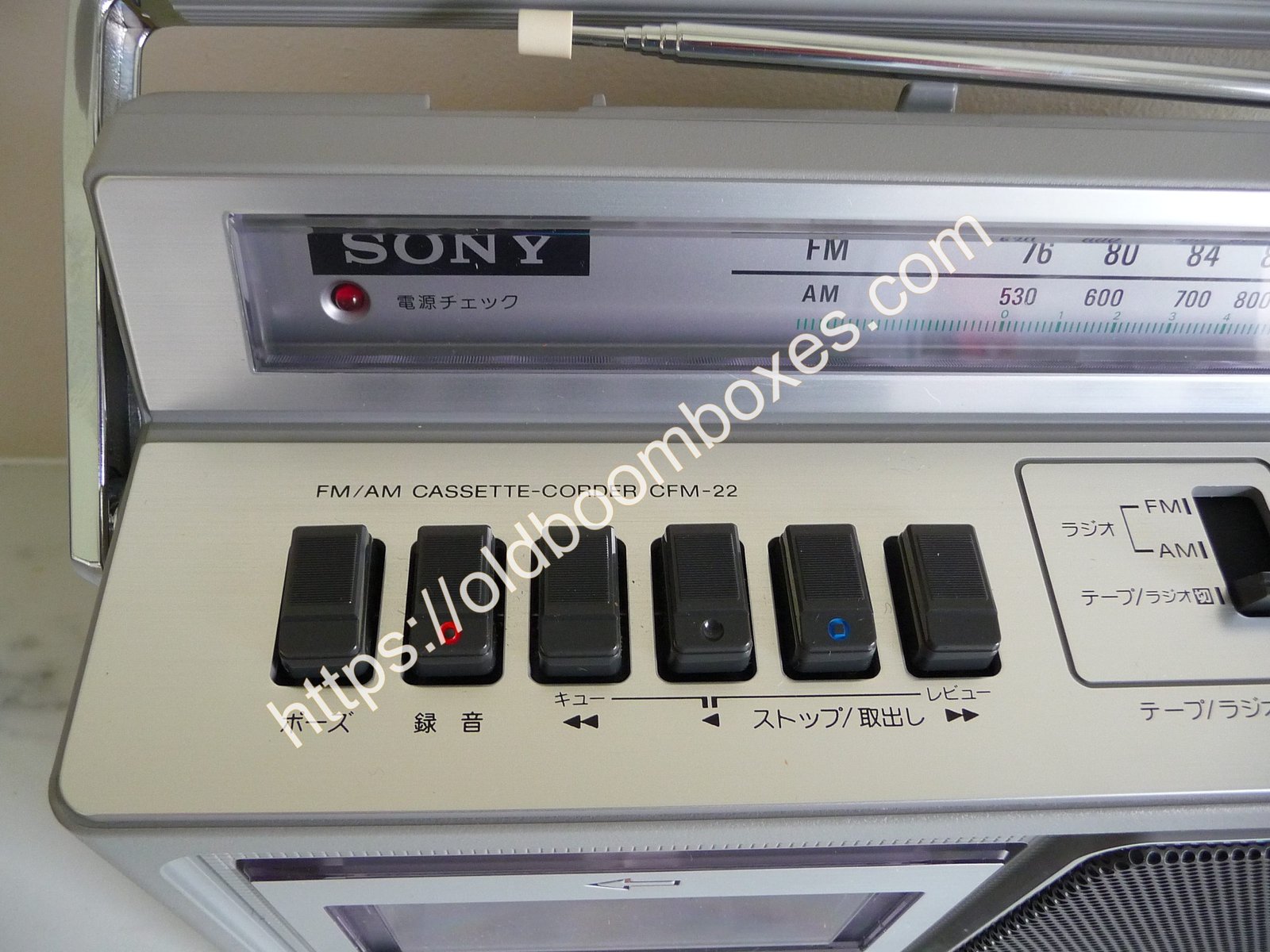

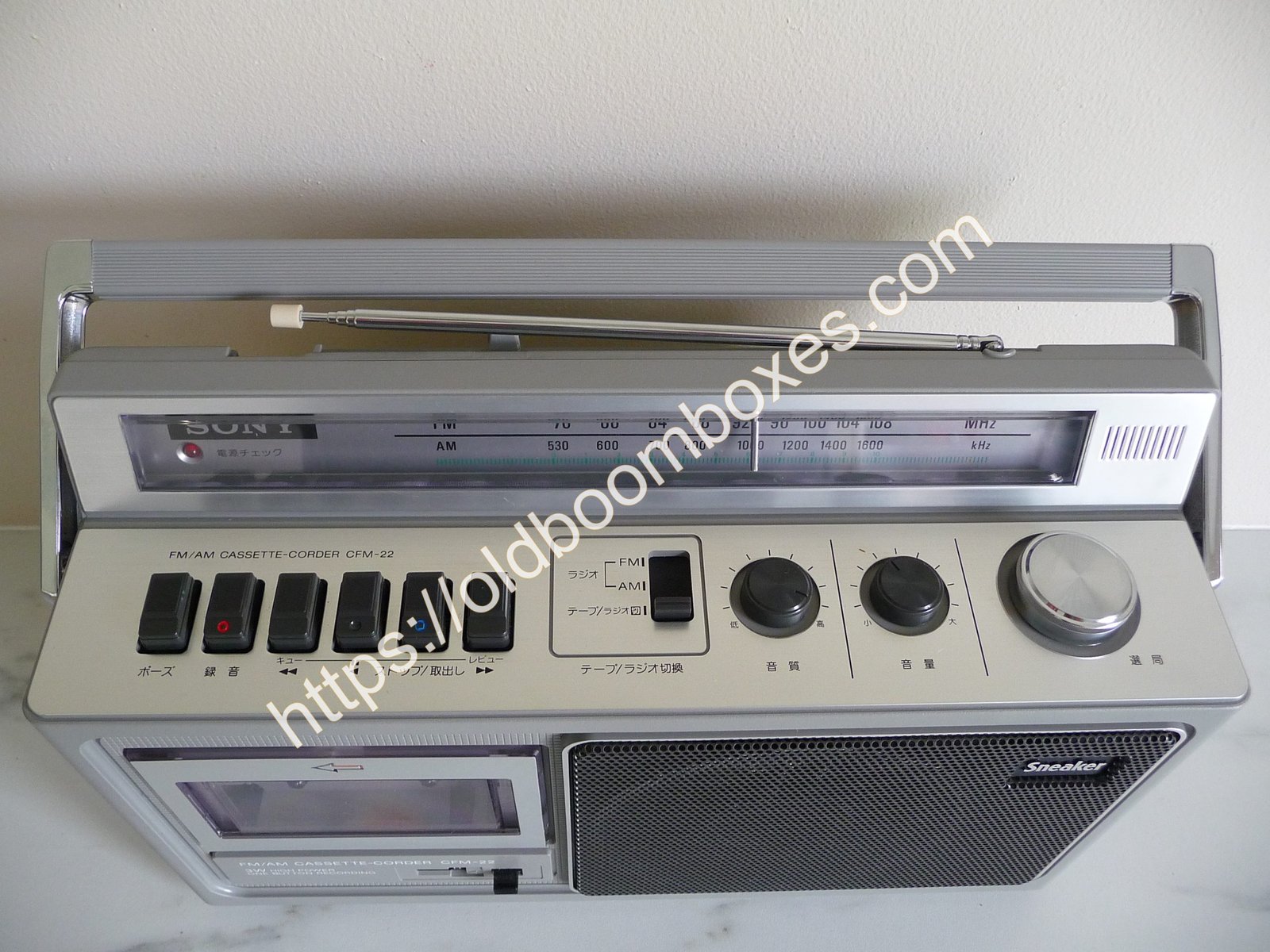

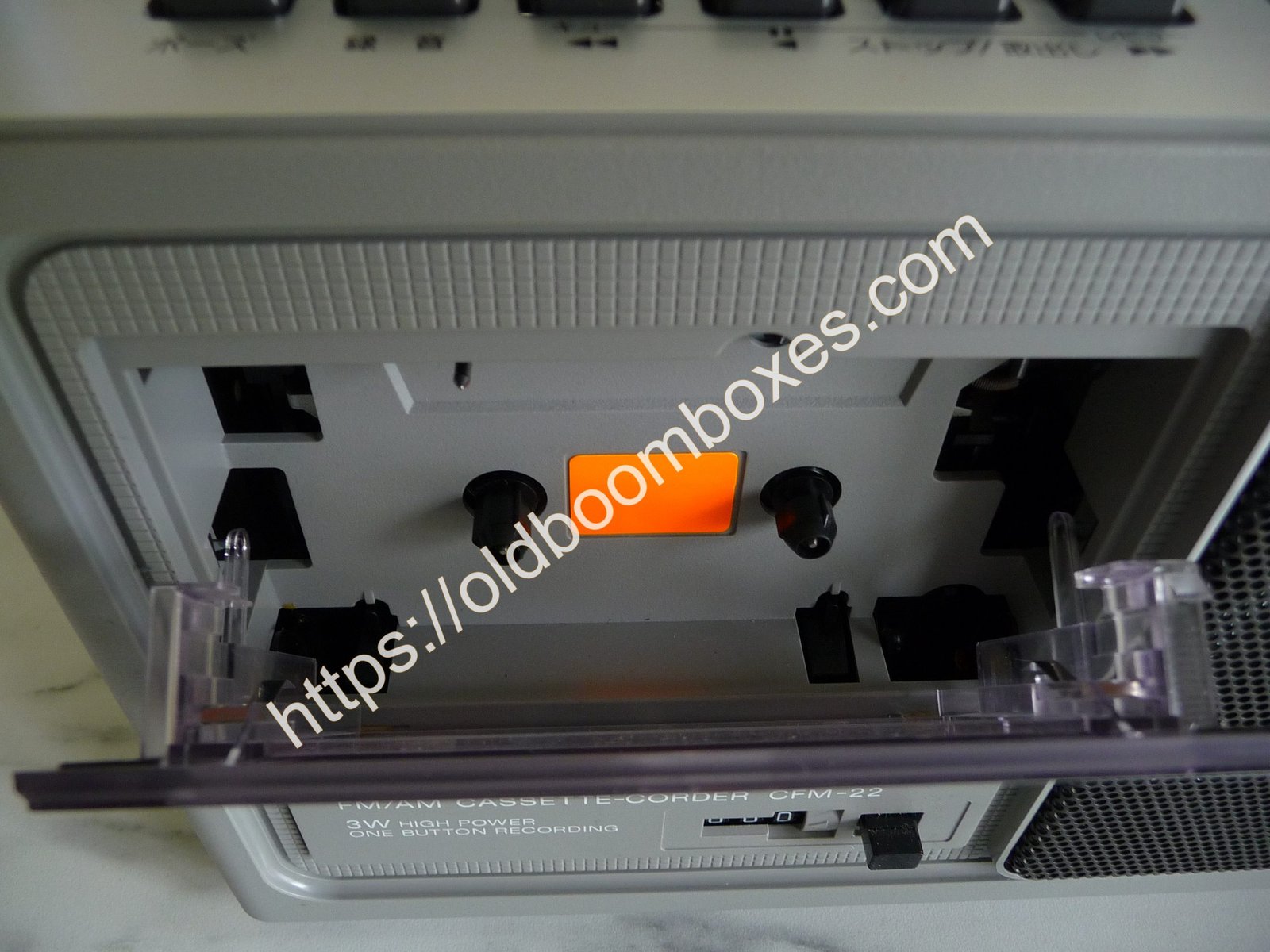

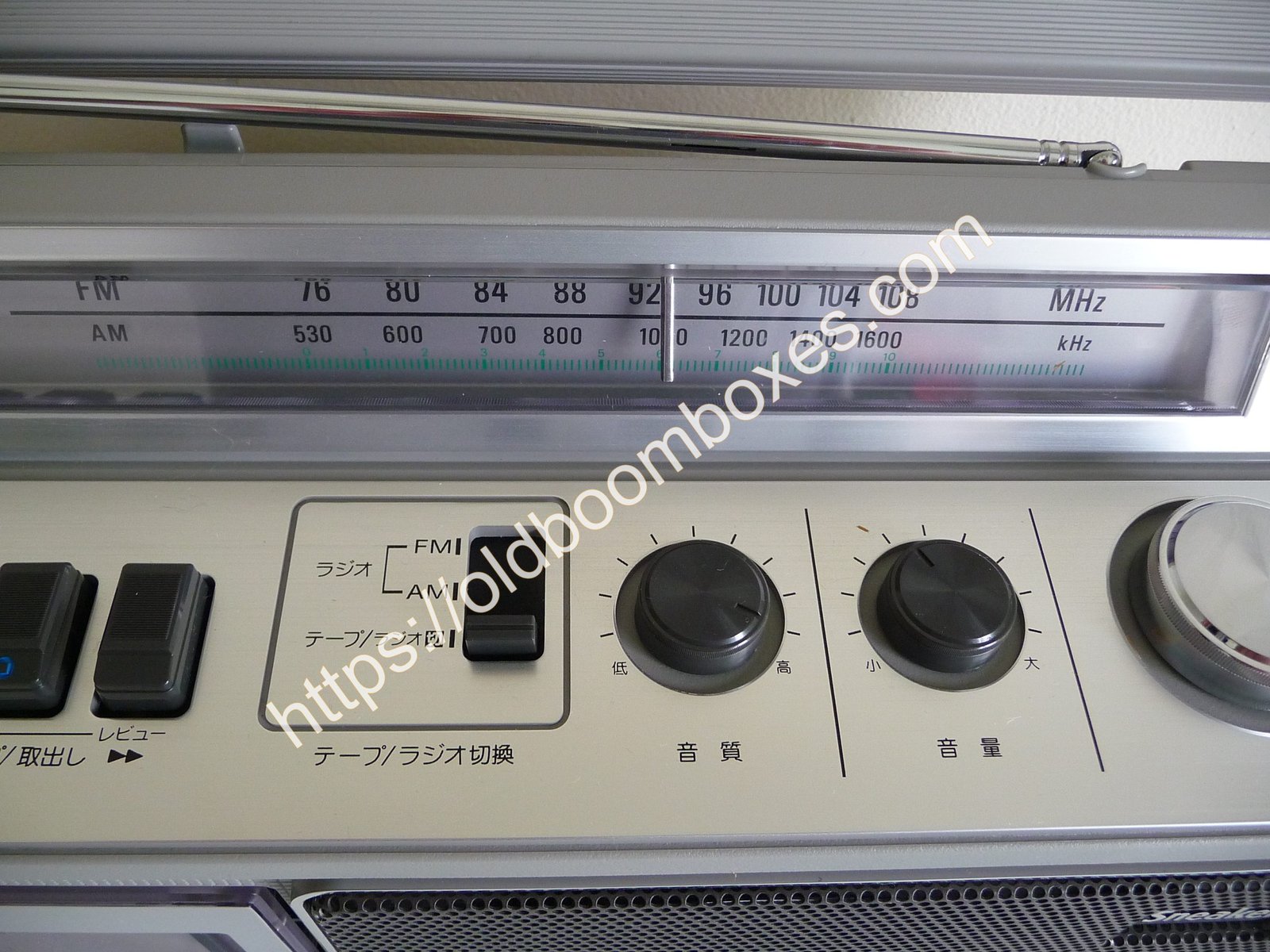

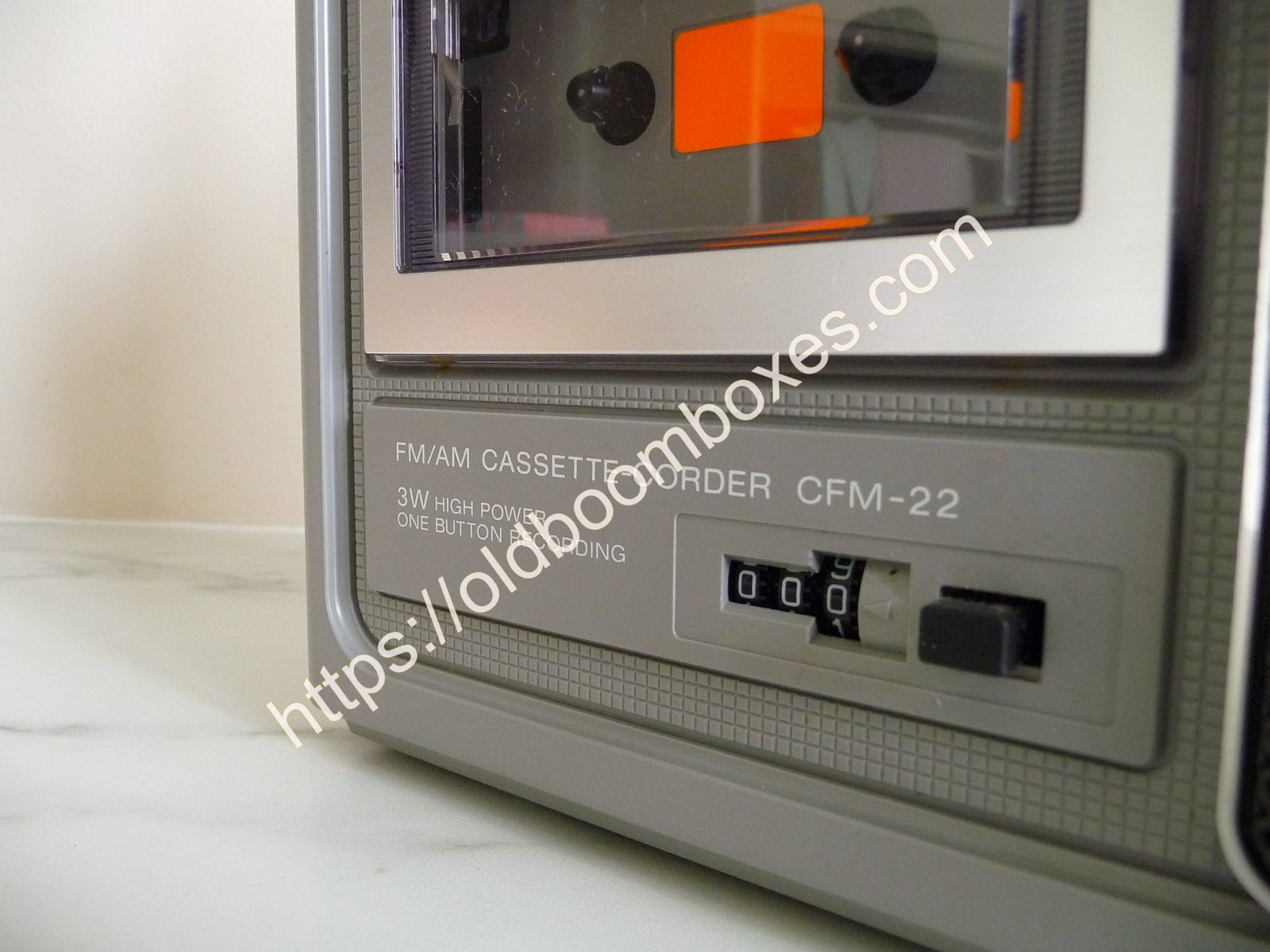

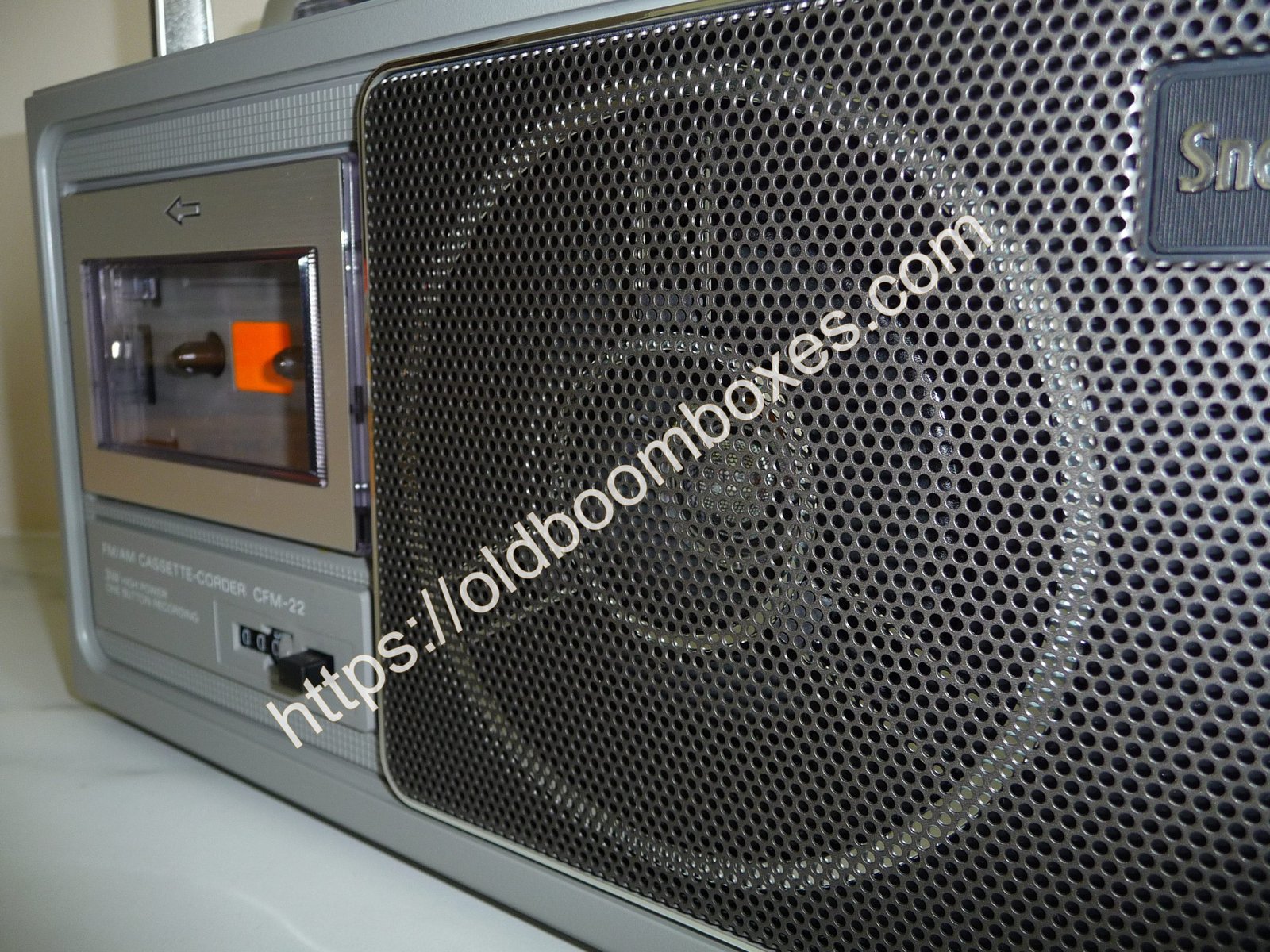

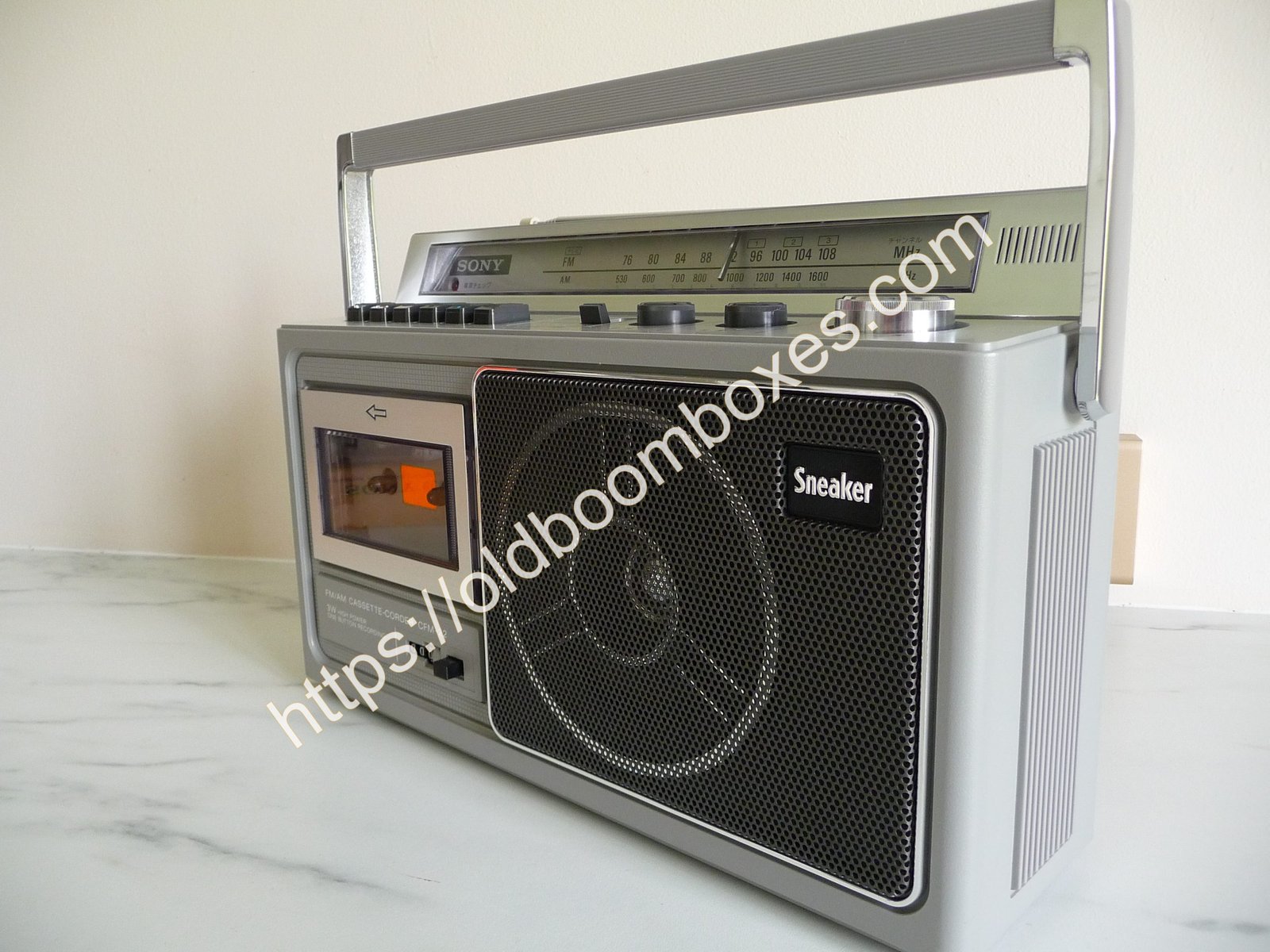

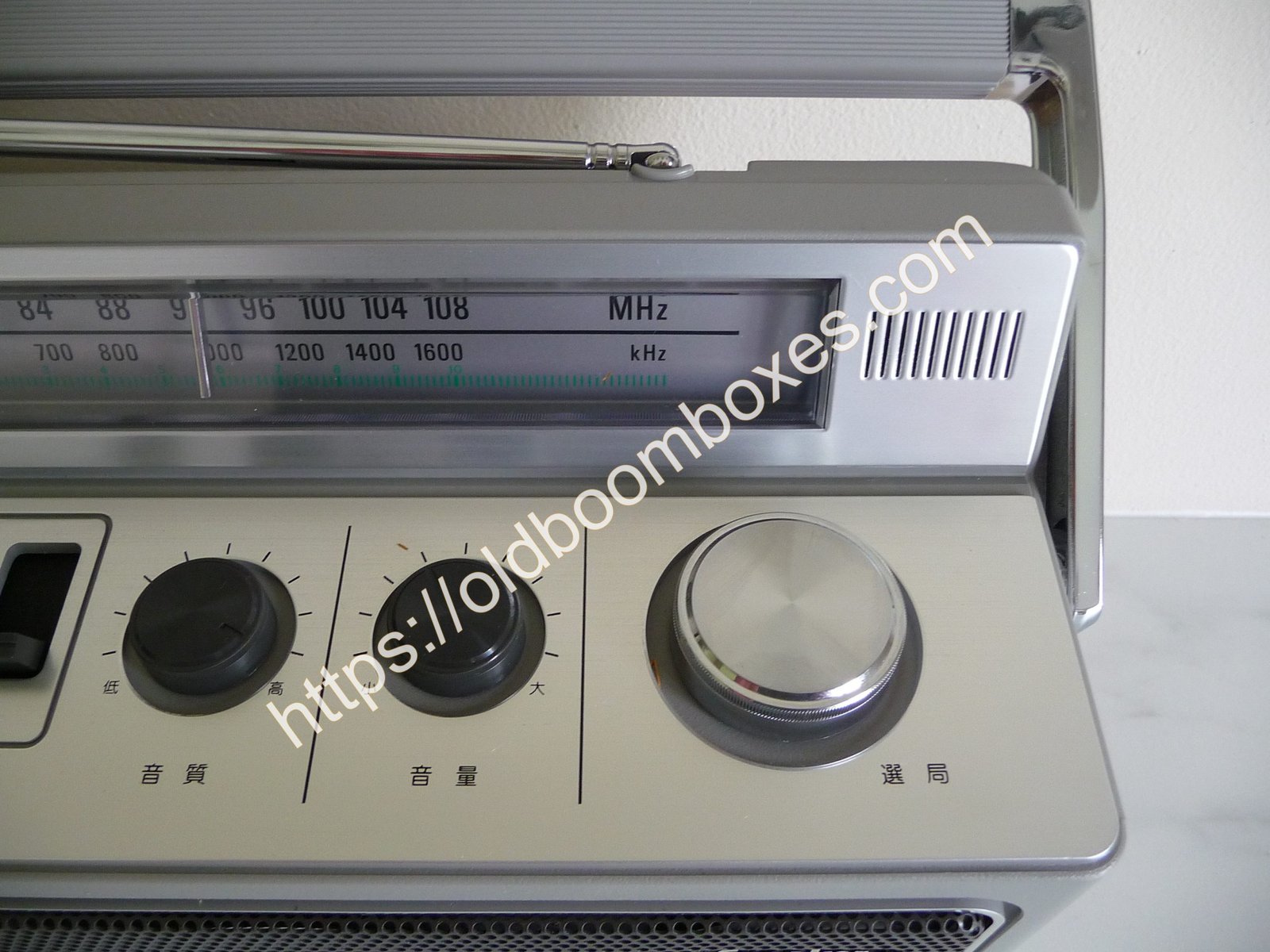

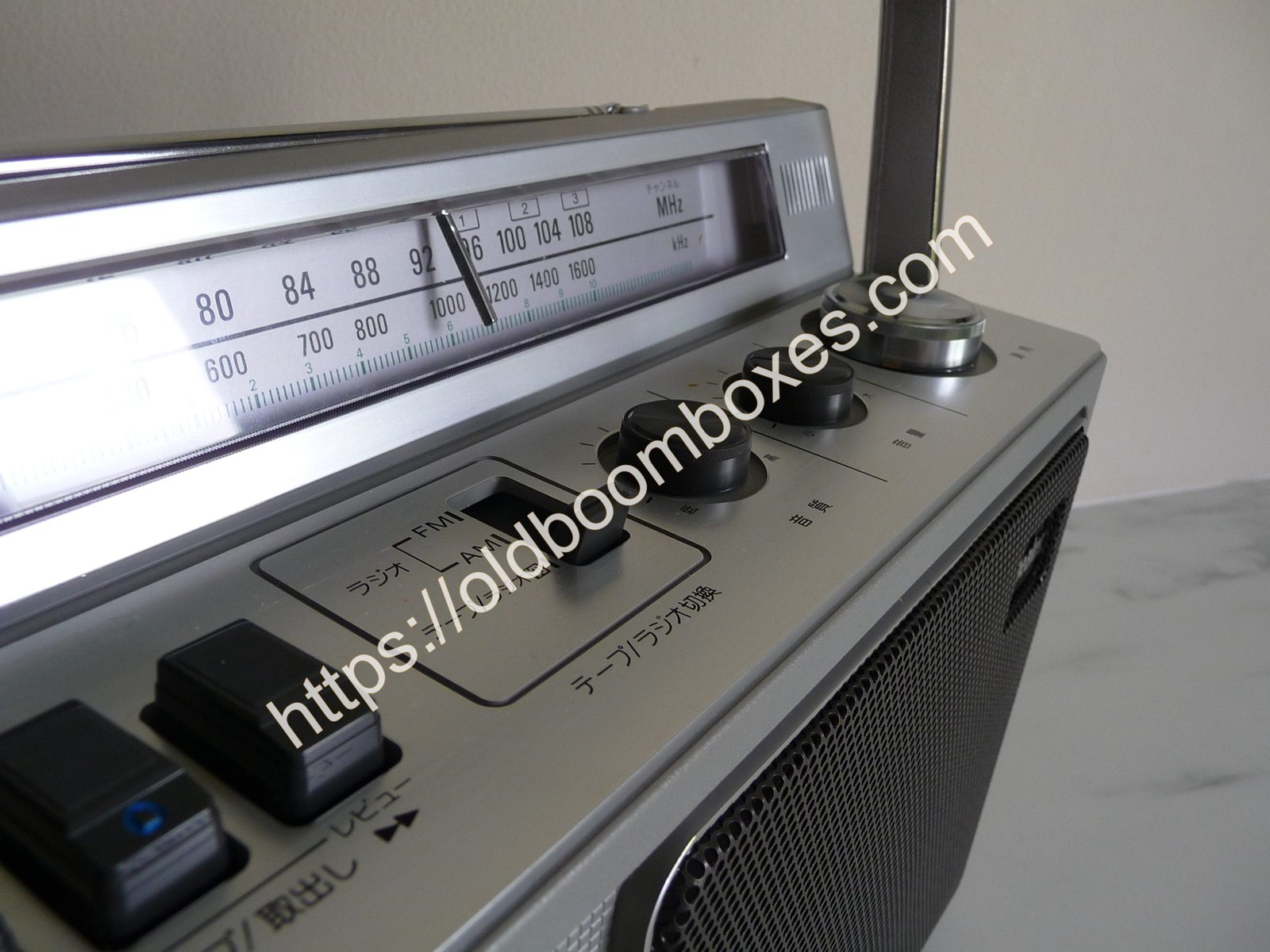

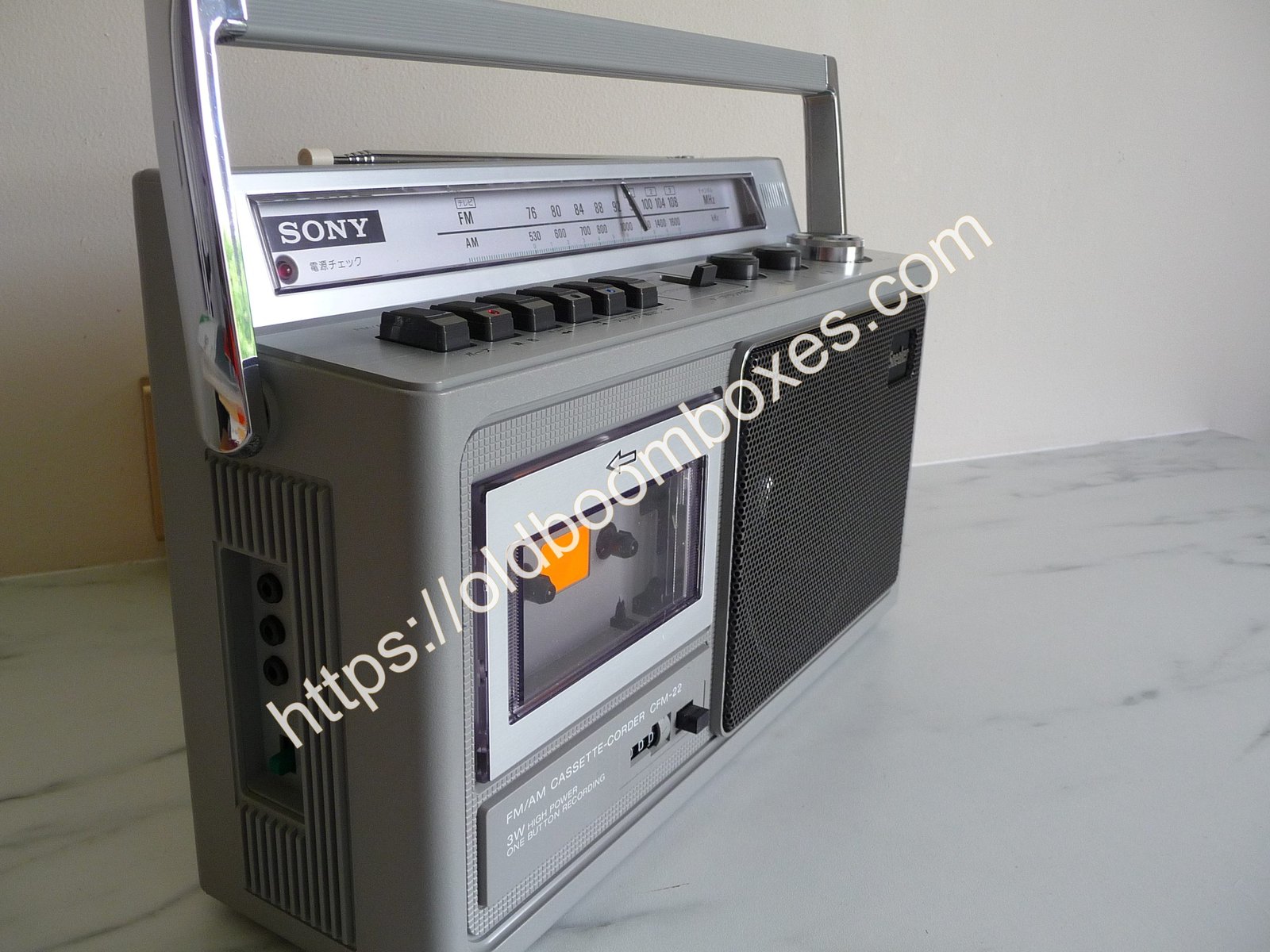

The Sony CFM-22 is a portable FM/AM radio-cassette recorder (branded “Sneaker”) designed for easy, everyday use. It has a metal carry handle, telescoping FM antenna, large single front speaker and a front-loading cassette compartment with tape counter. Top-mounted controls include push buttons for cassette transport (play, stop/eject, rewind, fast-forward, record), band/tape selector, tuning dial with FM/AM scale, volume and tone knobs, and a mixing/recording switch plus microphone/line jacks for one-button recording and simple mixing
Radio Bands: FM 76–108 MHz; AM 530–1605 kHz
Antenna: FM Rod Antenna; AM Built-In Ferrite Bar Antenna
Tape System: 2-Track, 1-Channel, Monaural
Fast Forward/Rewind: Approx. 2 Minutes (Sony C-60 Cassette)
Frequency Response: 60 ~ 8,000 Hz

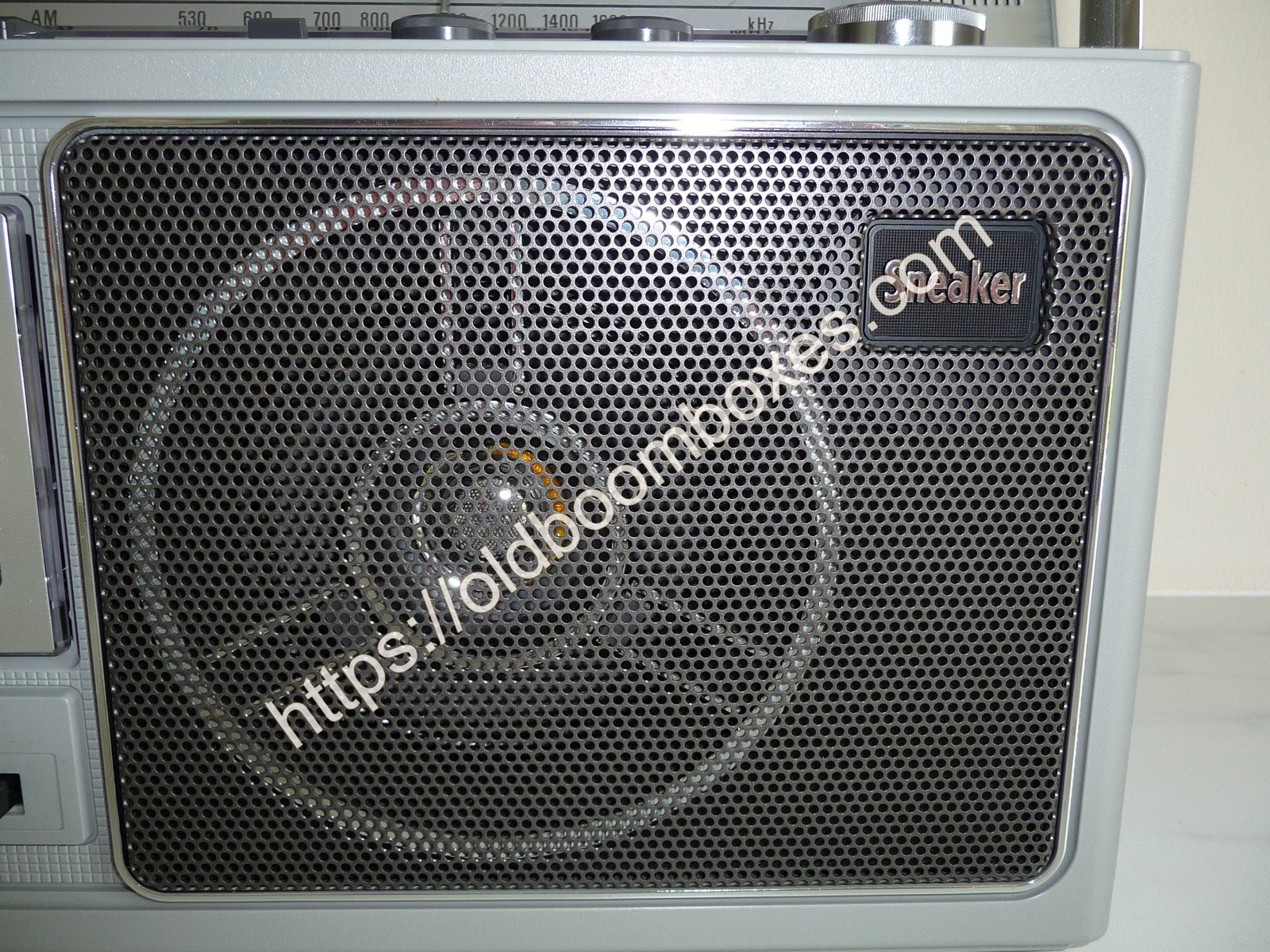

Speaker: 10 cm Diameter
Maximum Output: 3W (EIAJ/DC)
Microphone Input: 1 Mini Jack, 0.775 mV Minimum Input Level (-60 dB), Low-Impedance Microphone
Mixing Microphone Input: 1 Mini Jack, 4.4 mV Minimum Input Level (-45 dB), Low-Impedance Microphone
Output Jack: 1 Earphone Mini Jack, For 8 Ω Earphones Or Loads Above 10 kΩ

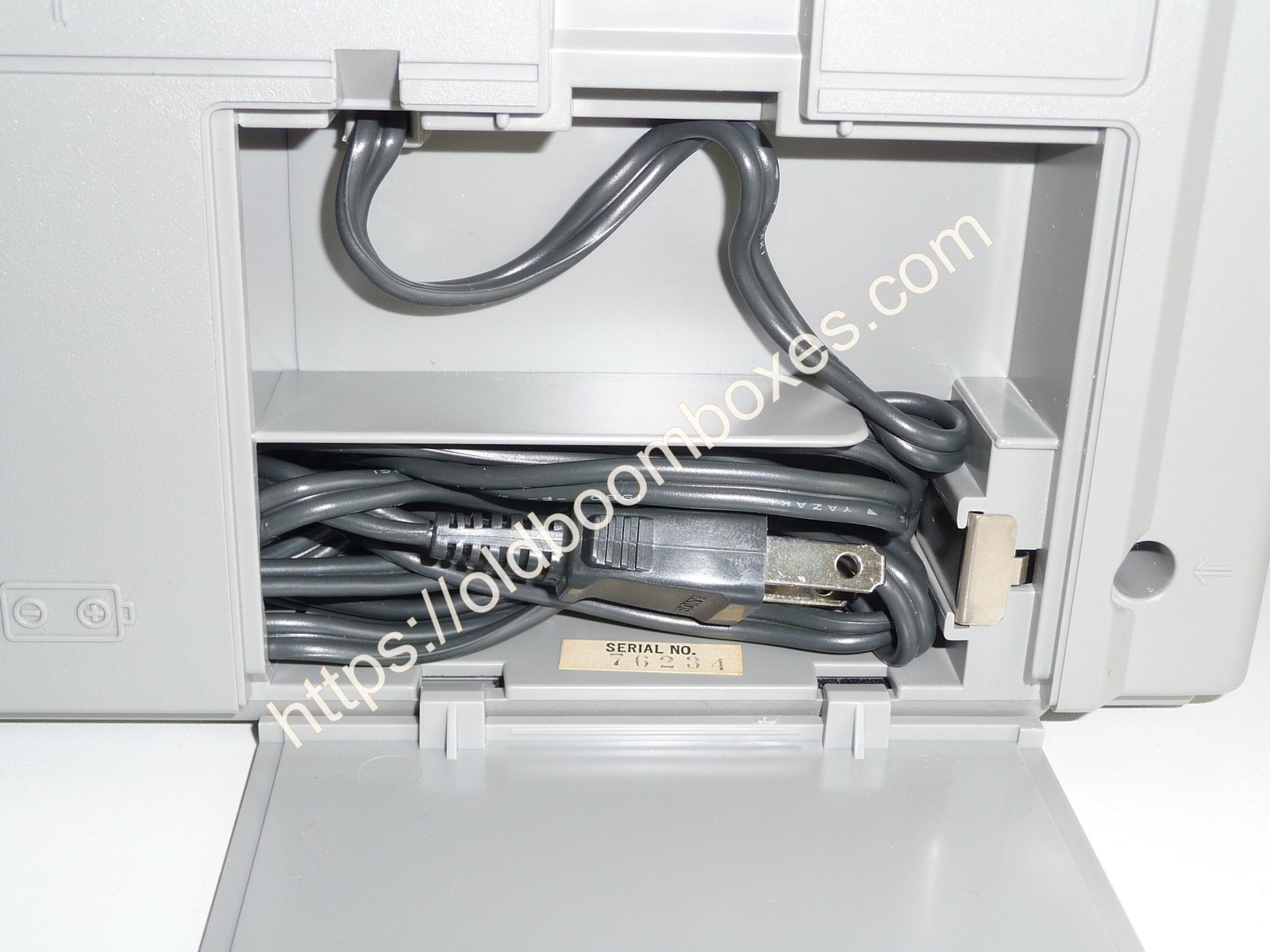

Power Supply: AC 100V 50/60Hz; DC 6V (4 × UM-1 Batteries, IEC R20)
Power Consumption: AC 10W
Battery Life: Approx. 14 Hours (EIAJ) With Sony Super SUM-1S Batteries; Approx. 10 Hours Continuous Recording Using Built-In Microphone
Dimensions: Width x 360mm, Depth x 113mm, Height x 218mm (Excluding Protrusions And Handle)
Weight 2.7 kg (Including Batteries)

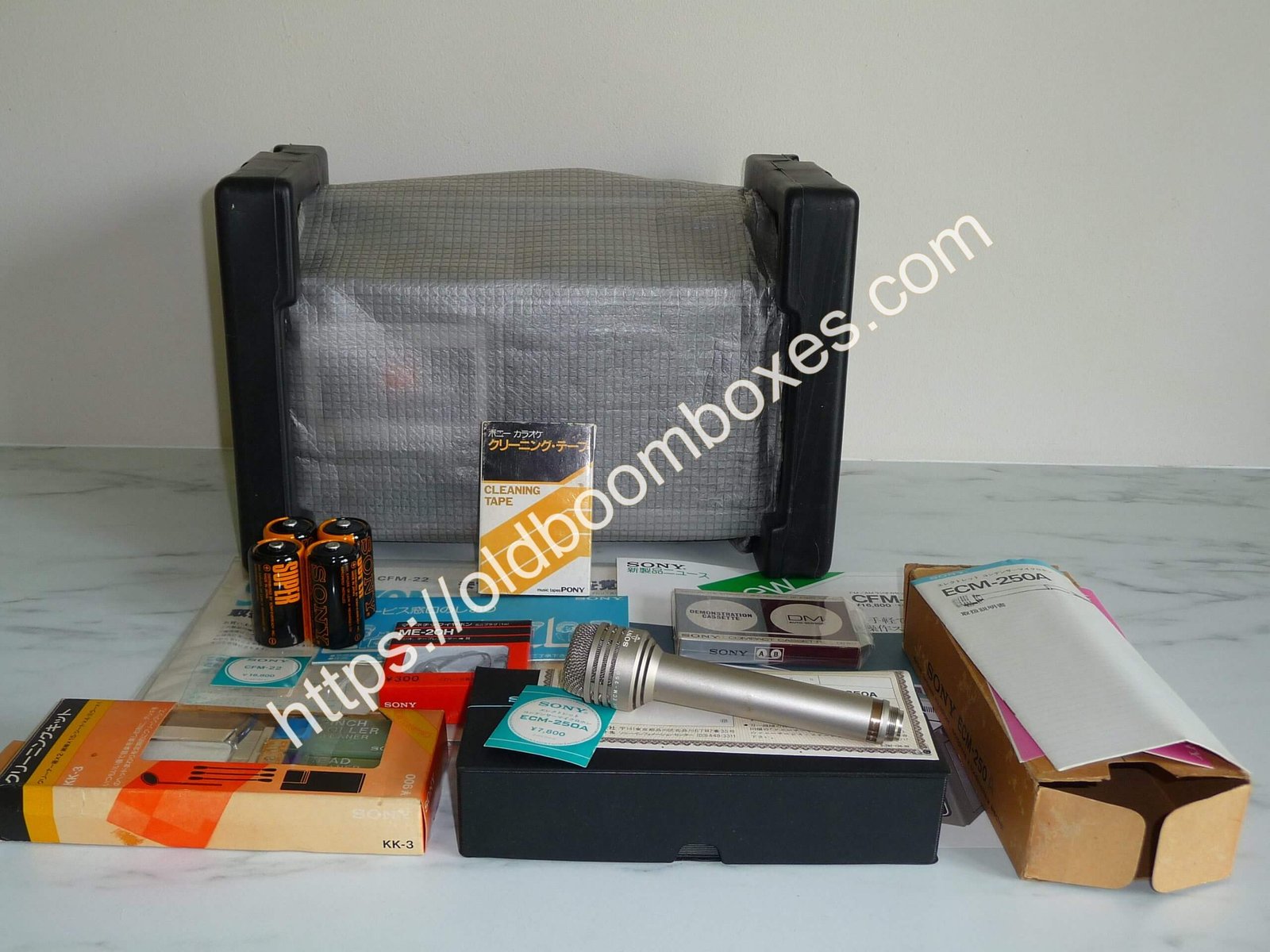

Included Accessories
Sony Super SUM-1S batteries ×4
Video
Soon!
Video Short

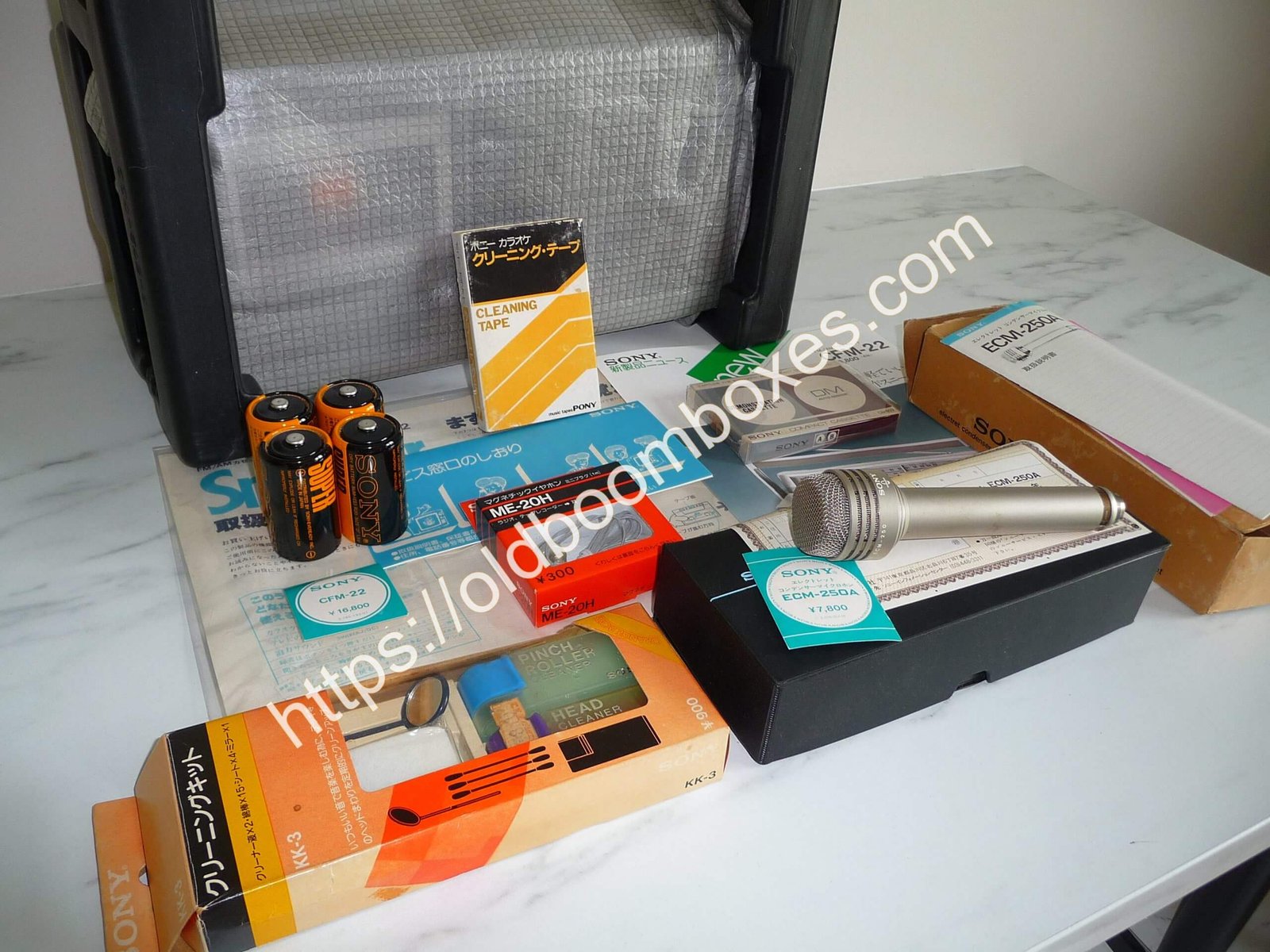

Accessories Sold Separately
Earphones ME-20H
Dynamic Microphones F-360M, F-500
Electret Condenser Microphone ECM-220FM (With Talk Switch) ECM-B1M
Wireless Microphones CRT-25, CRT-70, CRT-70B
Connection Cord RK-64A (Mini Plug To Mini Plug, With Built-In Resistor) RK-69A (Mini Plug To Mini Plug)
Cleaning Kit KK-3
Cleaning Pen CLH-3
Short Plug SP-100
Cassette Demagnetizer BE-9H
Head Demagnetizer HE-4
