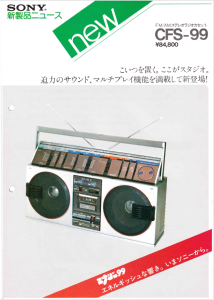

SONY CFS-99 Stereo Radio Cassette Recorder
Out of stock
SONY CFS-99
FUTURES:
- Manufactured Date: 1981 of February
- 3-Position Switch – Normal, CrO₂, METAL
- Tape Playback With AMS (Automatic Music Sensor)
- Fast-Forward Or Rewind To The Next Or Previous Track
- One-Touch Playback With Automatic Tape Selection
- High-Speed Tape Movement
- Supports Two Microphones And Phono Input
- Audio Line Input And Output Terminals
Available colors:
- Silver
$0.00
Out of stock
The Sony CFS-99, released in 1981, is a large, single-unit stereo boombox that exemplifies the aesthetic and technological innovation of the early 1980s portable audio market. Known for its vibrant design and powerful sound, the CFS-99 stands out as one of Sony’s few one-piece boomboxes, offering a blend of functionality, style, and high-quality audio performance. Measuring approximately 24 inches in width, it is a substantial and visually striking device, designed to deliver a premium listening experience for both home and portable use. Released during the golden age of boomboxes, the Sony CFS-99 reflects Sony’s commitment to quality over quantity in the portable audio market.
RADIO SECTION
FM : 76 ~ 90 Mhz, AM : 530 ~ 1,605 Khz
Antenna: FM : Rod Antenna With External Antenna Jack (752) Uses Dedicated Antenna Connector EAC-75
AM : Built-In Ferrite Bar Antenna
TAPE RECORDER SECTION
Common Areas: Track Method:4 Tracks, 2 Channels, Stereo
Fast Forward/Rewind Time Approximately 2 Minutes (Using Sony Cassette Tape C-60)
Tape Speed Variable Range ± 25 % Of Specified Speed (Playback Only)
Frequency Characteristics: 30 ~ 15,000 Hz (Metallic Cassette, Tape Select Switch: Type IV)
30 ~ 14,000 Hz (JHF Cassette, Tape Select Switch: Type II)
30 ~ 13,000 Hz (BHF Cassette, Tape Select Switch: Type I)
Wow Flutter: 0.075 % (Wrms)
Overall S/N: 46 Db
Total Strain Rate: 2 %
Speaker: 2 Way For Bass, Diameter 20 Cm 2 Pieces, For Treble, 5 Cm Diameter, 2 Pieces
Practical Maximum Output: Total 12 W (6 W + 6 W) (EIAJ/DC)
Input Jack: Line Input/Phono Input Jack x 2 (Mini Jack), Line In/Phono Selector Switch
Minimum Input Level At Line In Position: 200 Mv (-12 Db) Input Impedance 47 KΩ
Minimum Input Level At Phono Position: 2 Mv (-68 Db)
Input Impedance 27 KΩ
External Microphone Jack x 2 (Mini Jack)
Minimum Input Level: 0.3 Mv (-68 Db), For Low Impedance Microphone, Mixing Microphone Jack x 2 (Mini Jack)
Minimum Input Level: 1.2 Mv (-56 Db) For Low Impedance Microphones
Output Jack: Line Output Jack x 2 (Pin Jack), Nominal Output 0.44 V (-5 Db) At 47 KΩ Load, Load Impedance 10 KΩ Or More
External Speaker Jack x 2 (Mini Jack)
Speaker Impedance 4 ~ 8 Ω
Headphone Jack x 1 (Standard Stereo Jack) Load Impedance 8 Ω
Power Supply: Ac 100 V, 50/60Hz, DC 15 V, Uses 10 UM-1 Type Dry Batteries (Iec Designation R20)
AC Power Socket Rated AC 100V, Uses The Included Power Cord Dk-33H, DC Power Jack Rated DC 12 V
12V DCC-16A Car Battery Cord (Sold Separately) Can Be Connected. Can Be Used From V Car Battery
Power Consumption: AC 24 W, Battery Duration Approximately 7 Hours (EIAJ) When Using Sony Super Sum-1 (5) Dry Cell Batteries
Approximately 4 Hours (EIAJ) When Using Sony Eveready Alkaline AM 1 (5) Series
Dimensions: Width 594mm x Depth 169mm x Height 347mm (Does Not Include Handle)
Weight: 10.8 kg (With batteries, Excluding Other Accessories)
ACCESSORIES
FM Antenna Connector EAC-75 x 1
Sony Super Sum-1 Dry Cell Batteries x 10
Power Cord DK-33H x 1
Video
Video Short
Accessories Sold Separately
Battery Cord Dcc-16A (For 12V Vehicles)
Dynamic Microphone
Dynamic Microphones F-360T, F-V5T, F-V7Et, F-V12Et, F-420
Electret Condenser Microphone ECM-290F
Microphones For Recording Musical Instruments
Electret Condenser Microphone ECM-220T, ECM-260F, ECM-290F
Wireless Microphones CRT-25, CRT-35, CRT-45, CRT-70B
Stereo Recording Microphone
One-Point Stereo Microphone (Panoramic) ECM-949T, ECM-969
Doubilet FM Antenna AN-66
FM Rubik’s Antenna AN-30, AN-31
Stereo Headphones MDR-3, MDR-5A, DR-5A
Stereo Player System PS-180
Speaker Systems SS-92, SS-93
Connection Code
RK-74A (2 Pin Plug 2 Pin Plug)
RK-105A (2 Pin Plug, 1 Mini Plug)
RK-115A (1 Mini Plug, 2 Pin Plug, With Resistor)
RK-50A (1 Pin Plug, 1 Mini Plug)
RK-100A (Mini Plug — Loose End, Set Of 2, For Stereo Speakers)
